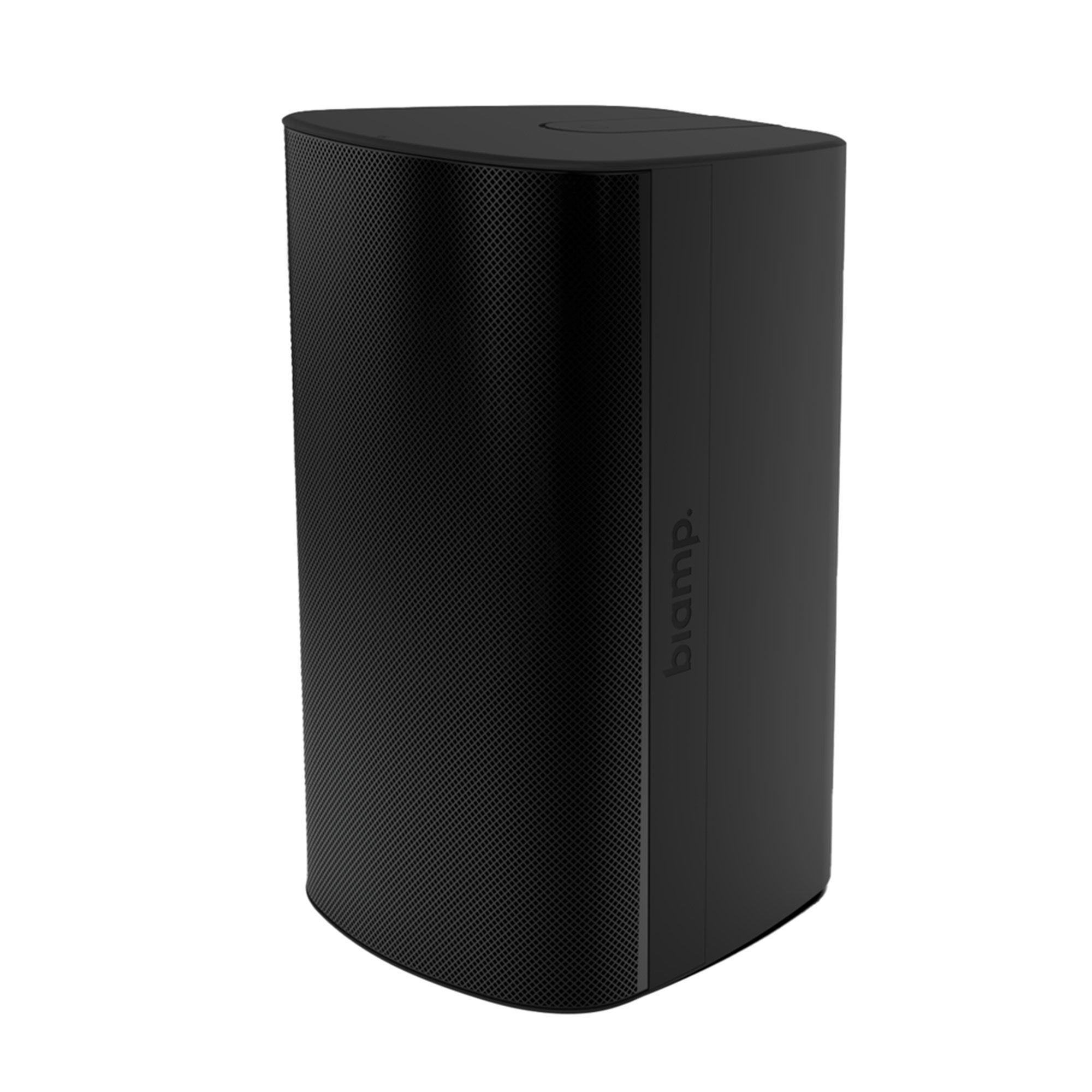

Biamp Desono EX-S10 - Two-Way 10-Inch Surface Mount Loudspeaker (Black with Pan-Tilt Bracket)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Desono EX-S10, the largest member of the EX Series, 10 inch two-way surface mount loudspeaker provides excellent musicality with deep LF extension. It's perfectly suited as the front-of-house in small venues or used in distributed applications without subwoofers.
Designed for easy and fast installation, the innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
Features:
- Exceptional audio clarity with small footprint and attractive styling
- Uniform coverage from coaxially mounted HF/LF drivers
- 5-position switch selects 70V/100V taps or low impedance bypass
- Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
- ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
- EN54-24 certified
| Operating Mode | Passive with selectable low-impedance or 70_V/100_V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 48 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100¡ x 100¡ |
| Transducers | LF 1 x 10" (250_mm) treated paper cone HF 1 x 1.4" (35_mm) voice coil compression driver |
| Sensitivity @ 1_m | 91 dB (2.83_V) 91 dB (1_W, 8_½) |
| Nominal Continuous Power Handling | 49_V (300_W, 8_½ Nominal Impedance) |
| Nominal Maximum SPL (Processed) @ 1_m | Continuous 118 dB Peak 124 dB |
| Rated Continuous Voltage | 45.7_V (33 dBV) |
| Rated Maximum SPL (Processed) @ 1_m | Continuous 114 dB Peak 126 dB |
| Transformer | 70_V: 120_W, 60_W, 30_W, 15_W 100_V: 120_W, 60_W, 30_W |
| Crossover / Protection | 1.48 kHz crossover, driver protection circuitry |
| Required Accessories | 48 Hz, 18_dB / oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 300_W - 600_W, 8_½ (49_V - 69_V) |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Compliance | ETL listed to comply with UL 1480A CSA STD C22.2# 62368-1 EN54-24, ISO 7240-24, IEC 62368-1 |
| Environmental Rating | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions H x W x D | 529 mm x 310_mm x 312_mm [20.8" x 12.2" x 12.3"] |
| Weight (loudspeaker only) | 15.2 kg [33.43 lbs] |
| Finish | High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017) or White (RAL 9016) |
| Grille | Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth Black or White |
| Models (Order by mounting option) | EX-S10-CM [-B,-W] - loudspeaker with large ClickMount pan-tilt bracket EX-S10-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug |
| Options | CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit |
The Desono EX-S10, the largest member of the EX Series, 10 inch two-way surface mount loudspeaker provides excellent musicality with deep LF extension. It's perfectly suited as the front-of-house in small venues or used in distributed applications without subwoofers.
Designed for easy and fast installation, the innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
Features:
- Exceptional audio clarity with small footprint and attractive styling
- Uniform coverage from coaxially mounted HF/LF drivers
- 5-position switch selects 70V/100V taps or low impedance bypass
- Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
- ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
- EN54-24 certified
| Operating Mode | Passive with selectable low-impedance or 70_V/100_V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 48 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100¡ x 100¡ |
| Transducers | LF 1 x 10" (250_mm) treated paper cone HF 1 x 1.4" (35_mm) voice coil compression driver |
| Sensitivity @ 1_m | 91 dB (2.83_V) 91 dB (1_W, 8_½) |
| Nominal Continuous Power Handling | 49_V (300_W, 8_½ Nominal Impedance) |
| Nominal Maximum SPL (Processed) @ 1_m | Continuous 118 dB Peak 124 dB |
| Rated Continuous Voltage | 45.7_V (33 dBV) |
| Rated Maximum SPL (Processed) @ 1_m | Continuous 114 dB Peak 126 dB |
| Transformer | 70_V: 120_W, 60_W, 30_W, 15_W 100_V: 120_W, 60_W, 30_W |
| Crossover / Protection | 1.48 kHz crossover, driver protection circuitry |
| Required Accessories | 48 Hz, 18_dB / oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 300_W - 600_W, 8_½ (49_V - 69_V) |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Compliance | ETL listed to comply with UL 1480A CSA STD C22.2# 62368-1 EN54-24, ISO 7240-24, IEC 62368-1 |
| Environmental Rating | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions H x W x D | 529 mm x 310_mm x 312_mm [20.8" x 12.2" x 12.3"] |
| Weight (loudspeaker only) | 15.2 kg [33.43 lbs] |
| Finish | High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017) or White (RAL 9016) |
| Grille | Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth Black or White |
| Models (Order by mounting option) | EX-S10-CM [-B,-W] - loudspeaker with large ClickMount pan-tilt bracket EX-S10-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug |
| Options | CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit |
