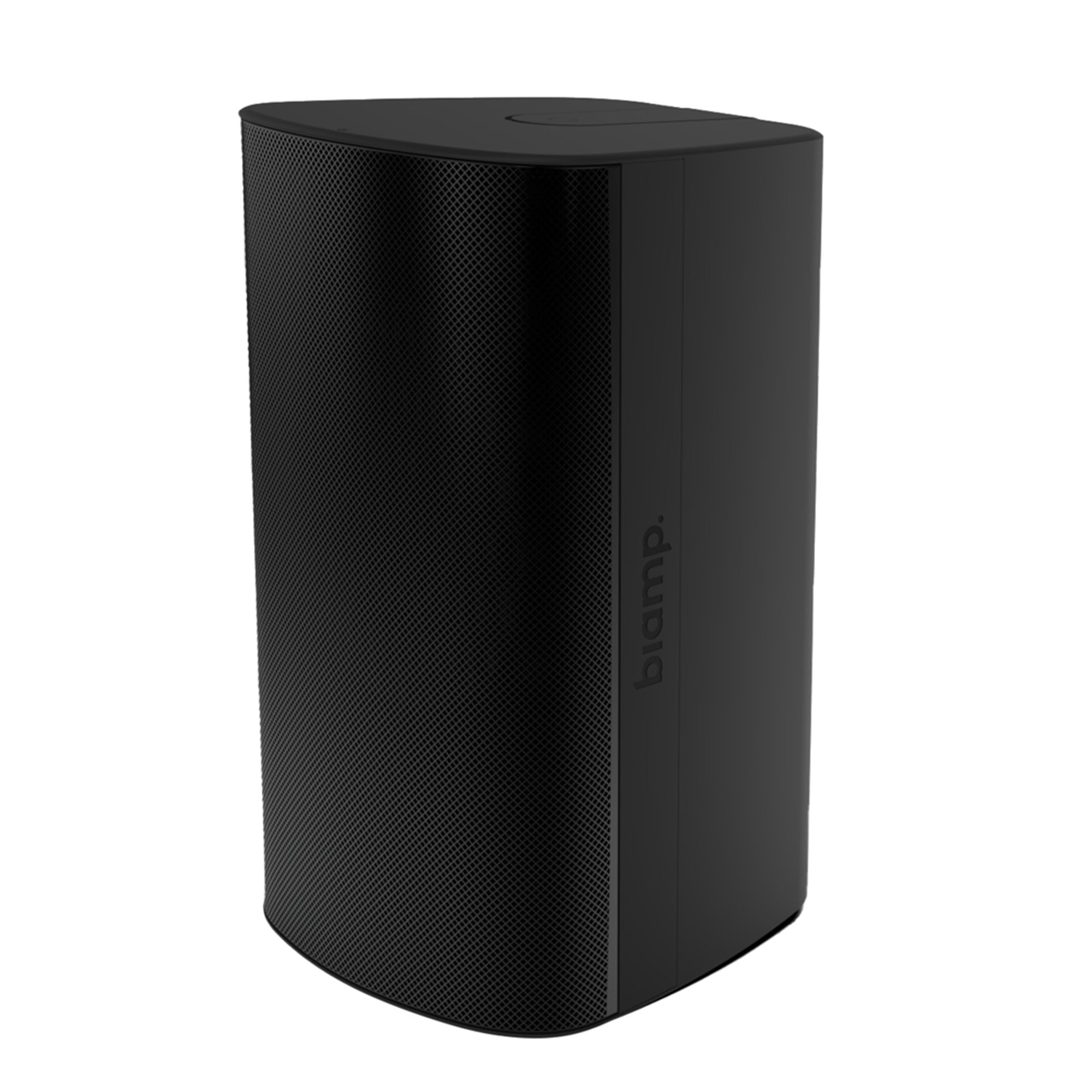

Biamp Desono EX-S10SUB - Surface Mount 10-Inch Subwoofer (Black with Pan-Tilt Bracket)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Desono EX-S10SUB, 10 inch subwoofer provides additional deep base to the EX-S6 or EX-S8 systems for full-range, foreground music playback. With its discreet matching enclosure, EX-S10SUB easily blends in the background of an application, making it easy to hear, but difficult to spot.
Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
Features:
- Exceptional audio clarity with discreet styling
- Easy to install with two mounting options
- Low frequency boost for distributed applications
- ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
| Operating Mode | Passive, low impedance |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 38 Hz to 140 Hz |
| Nominal Beamwidth (H x V) | Omnidirectional |
| Transducers | LF 1 x 10" (250_mm) treated paper cone |
| Sensitivity @ 1_m | 89 dB (2.83_V) 89 dB (1_W, 8_½ nominal impedance) |
| Nominal Continuous Power Handling | 49_V (300_W, 8_½) |
| Nominal Maximum SPL (Processed) @ 1_m | UXO 80 Hz: Continuous 112 dB Peak 118 dB UXO 125 Hz: Continuous 113 dB Peak 119 dB |
| Rated Continuous Voltage | 39.8_V (32 dBV) |
| Rated Maximum SPL (Processed) @ 1_m | UXO 80 Hz: Continuous 110 dB Peak 122 dB UXO 125 Hz: Continuous 111 dB Peak 123 dB |
| Required Processing | 35 Hz, 18 dB high-pass filter; DSP preset |
| Recommended Amplifiers | 300_W - 600_W, 8_½ (49_V - 69_V) |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | None |
| Mounting Provisions | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Compliance | ETL listed to comply with UL 1480A, CSA STD C22.2# 62368-1 |
| Environmental Rating | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions H x W x D | 529 mm x 310_mm x 312 mm [20.8" x 12.2" x 12.3"] |
| Weight (loudspeaker only) | 12.8 kg [28.26 lbs] |
| Finish | High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017) or White (RAL 9016) |
| Grille | Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth Black or White |
| Models (Order by mounting option) | EX-S10SUB-CM [-B,-W] - loudspeaker with large ClickMount pan-tilt bracket EX-S10SUB-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug |
| Options | CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit |
