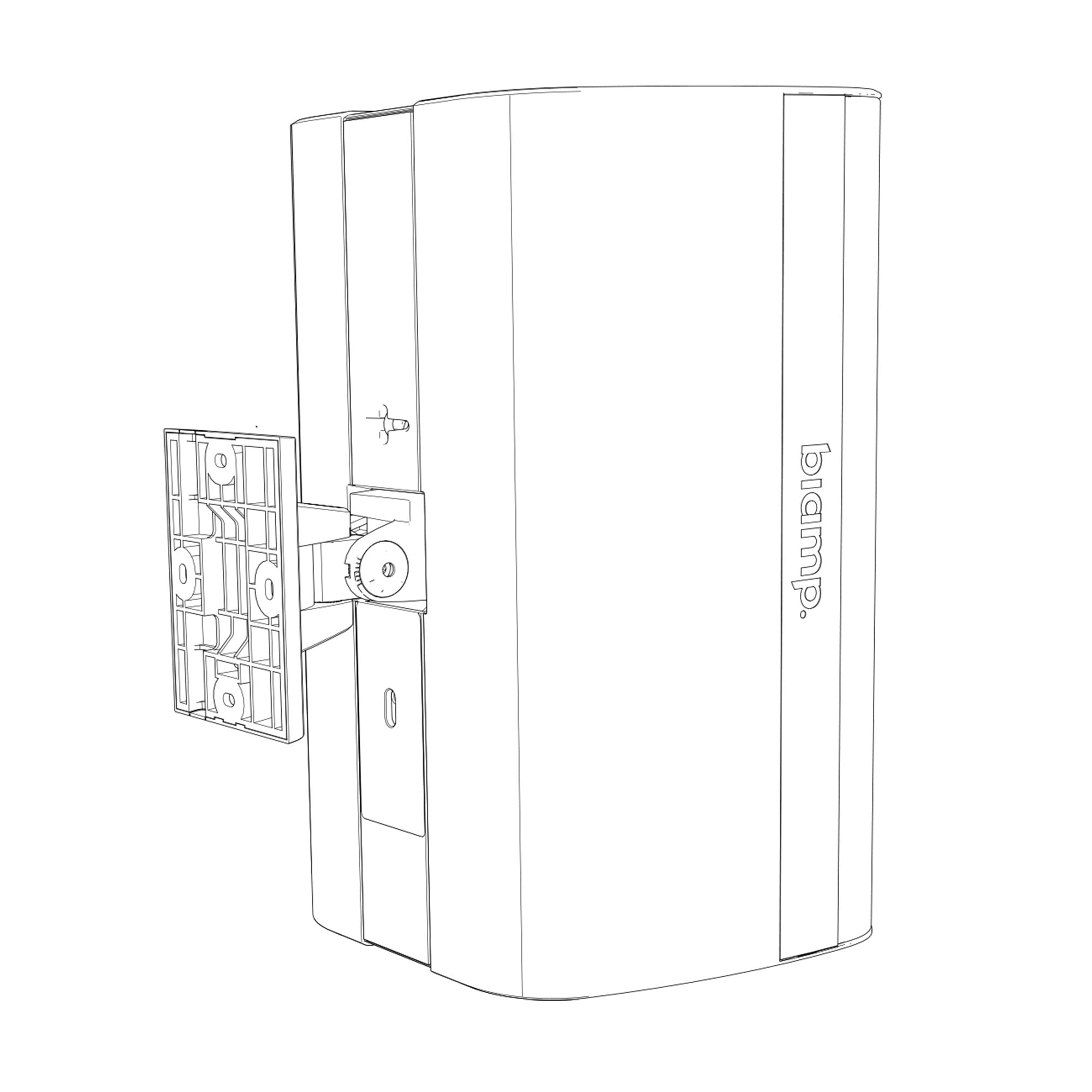

Biamp Desono EX-S10SUB - Surface Mount 10-Inch Subwoofer (White with Pan-Tilt Bracket)


  • Dale #:

    BIAM-DESONOEXS10SUBCMW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Desono EX-S10SUB, 10 inch subwoofer provides additional deep base to the EX-S6 or EX-S8 systems for full-range, foreground music playback. With its discreet matching enclosure, EX-S10SUB easily blends in the background of an application, making it easy to hear, but difficult to spot. Designe... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Desono EX-S10SUB, 10 inch subwoofer provides additional deep base to the EX-S6 or EX-S8 systems for full-range, foreground music playback. With its discreet matching enclosure, EX-S10SUB easily blends in the background of an application, making it easy to hear, but difficult to spot.

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.

Features:

  • Exceptional audio clarity with discreet styling
  • Easy to install with two mounting options
  • Low frequency boost for distributed applications
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant

More +

Product Specs

Operating Mode Passive, low impedance
Operating Environment Indoor/Outdoor
Operating Range (-10dB) 38 Hz to 140 Hz
Nominal Beamwidth (H x V) Omnidirectional
Transducers LF 1 x 10" (250 mm) treated paper cone
Sensitivity @ 1 m 89 dB (2.83 V)
89 dB (1 W, 8 Ω nominal impedance)
Nominal Continuous Power Handling 49 V (300 W, 8 Ω)
Nominal Maximum SPL (Processed) @ 1 m UXO 80 Hz: Continuous 112 dB Peak 118 dB
UXO 125 Hz: Continuous 113 dB Peak 119 dB
Rated Continuous Voltage 39.8 V (32 dBV)
Rated Maximum SPL (Processed) @ 1 m UXO 80 Hz: Continuous 110 dB Peak 122 dB
UXO 125 Hz: Continuous 111 dB Peak 123 dB
Required Processing 35 Hz, 18 dB high-pass filter; DSP preset
Recommended Amplifiers 300 W - 600 W, 8 Ω (49 V - 69 V)
Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through
Controls None
Mounting Provisions ClickMount pan-tilt bracket or ClickMount U-Bracket
Compliance ETL listed to comply with UL 1480A, CSA STD C22.2# 62368-1
Environmental Rating IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation)
IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2)
IEC 60068-2-60 (Chlorine)
Dimensions H x W x D 529  mm x 310 mm x 312  mm [20.8" x 12.2" x 12.3"]
Weight (loudspeaker only) 12.8 kg [28.26 lbs]
Finish High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Color: Black (RAL 9017) or White (RAL 9016)
Grille Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth
Black or White
Models (Order by mounting option) EX-S10SUB-CM [-B,-W] - loudspeaker with large ClickMount pan-tilt bracket
EX-S10SUB-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug
Options CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit
EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit
