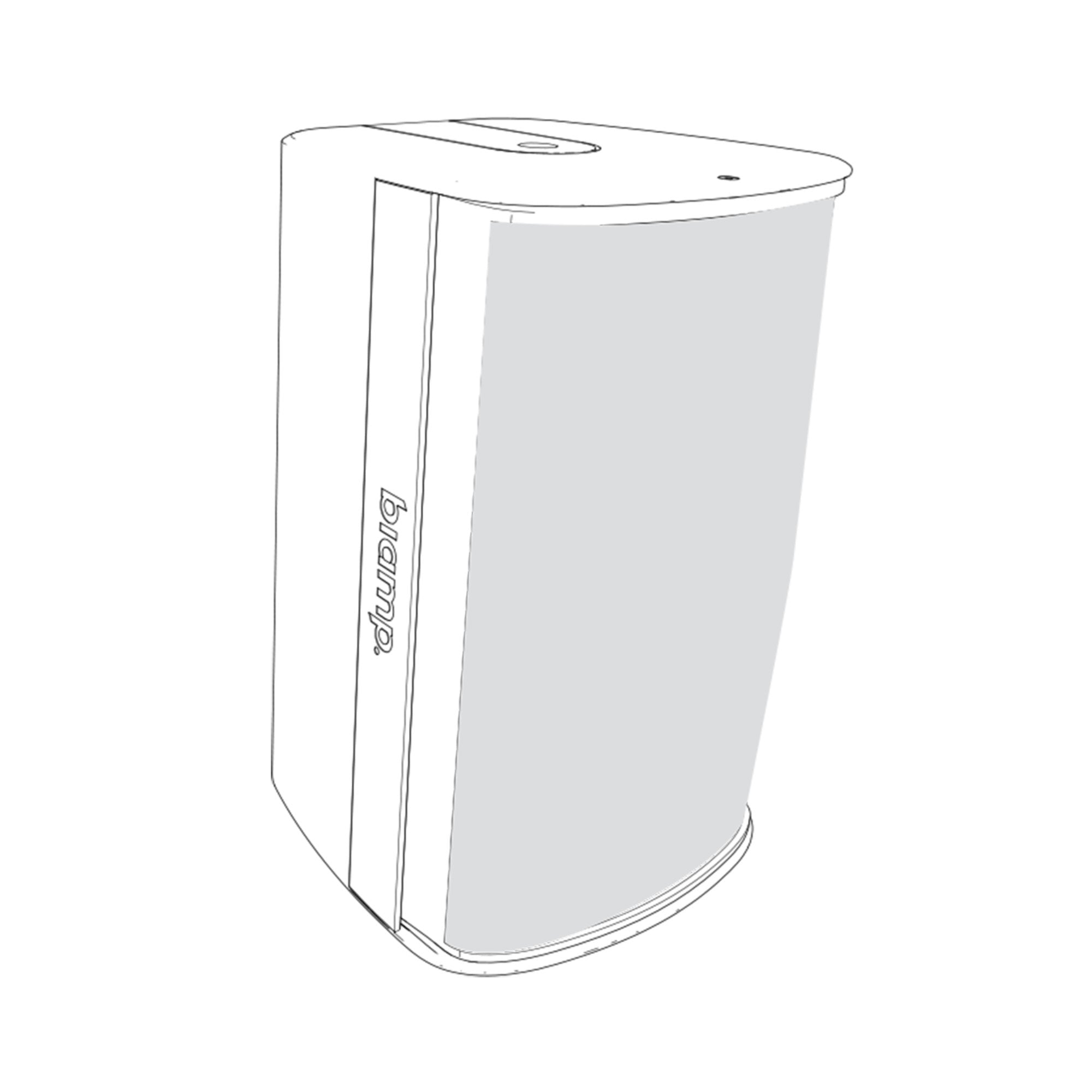

Biamp Desono EX-S6 - Two-Way 6.5-Inch Surface Mount Loudspeaker (White with U-Bracket)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Desono EX-S6, the smallest member of EX Series, 6.5" two-way surface mount loudspeaker provides discreet, distributed sound in applications requiring exceptional audio clarity with a small visual footprint. With its wide coverage at 110° wide dispersion and flat response down below 80Hz, EX-S6 is optimal for near field listening.

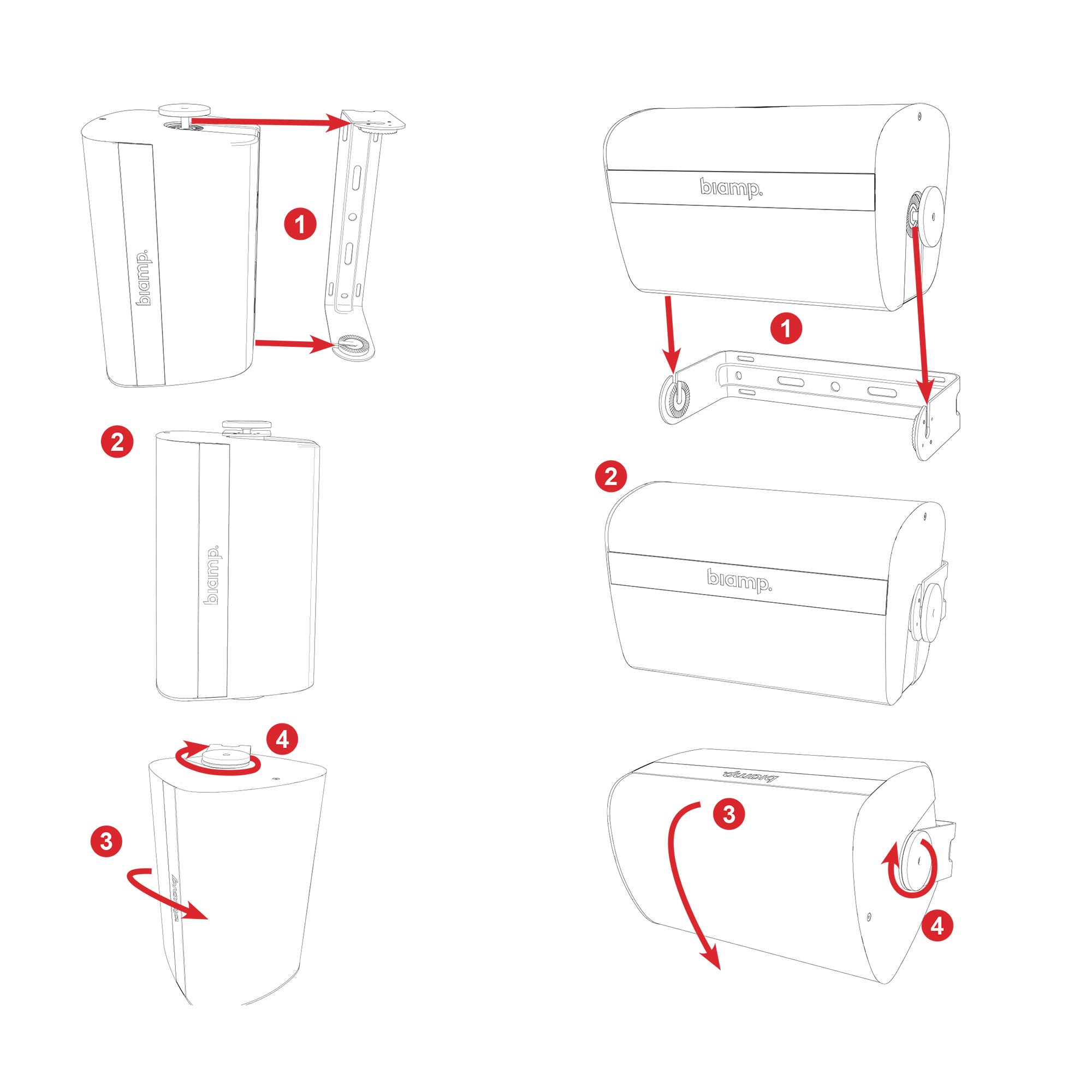

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
Features:
- Exceptional audio clarity with small footprint and attractive styling
- Uniform coverage from coaxially mounted HF/LF drivers
- 5-position switch selects 70V/100V taps or low impedance bypass
- Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
- ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant (pending)
- EN54-24 certified (pending)
| Operating Mode | Passive with selectable low-impedance or 70_V/100_V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 58 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 120¡ x 120¡ |
| Transducers | LF 1 x 6.5" (165_mm) treated paper cone HF 1 x 1" (25_mm) treated soft dome tweeter w/ waveguide |
| Sensitivity @ 1_m | 89 dB (2.83_V) 89 dB (1_W, 8_½) |
| Nominal Continuous Power Handling | 40_V (200_W, 8_½ Nominal Impedance) |
| Nominal Maximum SPL (Processed) @ 1_m | Continuous 112 dB Peak 118 dB |
| Rated Continuous Voltage | 31.6_V (30 dBV) |
| Rated Maximum SPL (Processed) @ 1_m | Continuous 109 dB Peak 121 dB |
| Transformer | 70_V: 80_W, 40_W, 20_W, 10_W 100_V: 80_W, 40_W, 20_W |
| Crossover / Protection | 1.58 kHz crossover, driver protection circuitry |
| Required Accessories | 50 Hz, 12_dB / oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 200_W - 400_W, 8_½ (40_V - 57_V) |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Compliance | ETL listed to comply with UL 1480A CSA STD C22.2# 62368-1 EN54-24, ISO 7240-24, IEC 62368-1 |
| Environmental Rating | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions H x W x D | 349_mm x 217_mm x 220_mm [13.7" x 8.5" x 8.6"] |
| Weight (loudspeaker only) | 6.5 kg [14.4 lbs] |
| Finish | High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017) or White (RAL 9016) |
| Grille | Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth Black or White |
| Models (Order by mounting option) | EX-S6-CM [-B,-W] - loudspeaker with small ClickMount pan-tilt bracket EX-S6-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug |
| Options | CMX-SM [-B,-W] - Small ClickMount pan-tilt bracket kit EXUB-S6 [-B,-W] - EX-S6 ClickMount U-Bracket kit |
The Desono EX-S6, the smallest member of EX Series, 6.5" two-way surface mount loudspeaker provides discreet, distributed sound in applications requiring exceptional audio clarity with a small visual footprint. With its wide coverage at 110° wide dispersion and flat response down below 80Hz, EX-S6 is optimal for near field listening.
Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
Features:
- Exceptional audio clarity with small footprint and attractive styling
- Uniform coverage from coaxially mounted HF/LF drivers
- 5-position switch selects 70V/100V taps or low impedance bypass
- Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
- ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant (pending)
- EN54-24 certified (pending)
| Operating Mode | Passive with selectable low-impedance or 70_V/100_V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 58 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 120¡ x 120¡ |
| Transducers | LF 1 x 6.5" (165_mm) treated paper cone HF 1 x 1" (25_mm) treated soft dome tweeter w/ waveguide |
| Sensitivity @ 1_m | 89 dB (2.83_V) 89 dB (1_W, 8_½) |
| Nominal Continuous Power Handling | 40_V (200_W, 8_½ Nominal Impedance) |
| Nominal Maximum SPL (Processed) @ 1_m | Continuous 112 dB Peak 118 dB |
| Rated Continuous Voltage | 31.6_V (30 dBV) |
| Rated Maximum SPL (Processed) @ 1_m | Continuous 109 dB Peak 121 dB |
| Transformer | 70_V: 80_W, 40_W, 20_W, 10_W 100_V: 80_W, 40_W, 20_W |
| Crossover / Protection | 1.58 kHz crossover, driver protection circuitry |
| Required Accessories | 50 Hz, 12_dB / oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 200_W - 400_W, 8_½ (40_V - 57_V) |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Compliance | ETL listed to comply with UL 1480A CSA STD C22.2# 62368-1 EN54-24, ISO 7240-24, IEC 62368-1 |
| Environmental Rating | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions H x W x D | 349_mm x 217_mm x 220_mm [13.7" x 8.5" x 8.6"] |
| Weight (loudspeaker only) | 6.5 kg [14.4 lbs] |
| Finish | High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017) or White (RAL 9016) |
| Grille | Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth Black or White |
| Models (Order by mounting option) | EX-S6-CM [-B,-W] - loudspeaker with small ClickMount pan-tilt bracket EX-S6-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug |
| Options | CMX-SM [-B,-W] - Small ClickMount pan-tilt bracket kit EXUB-S6 [-B,-W] - EX-S6 ClickMount U-Bracket kit |
