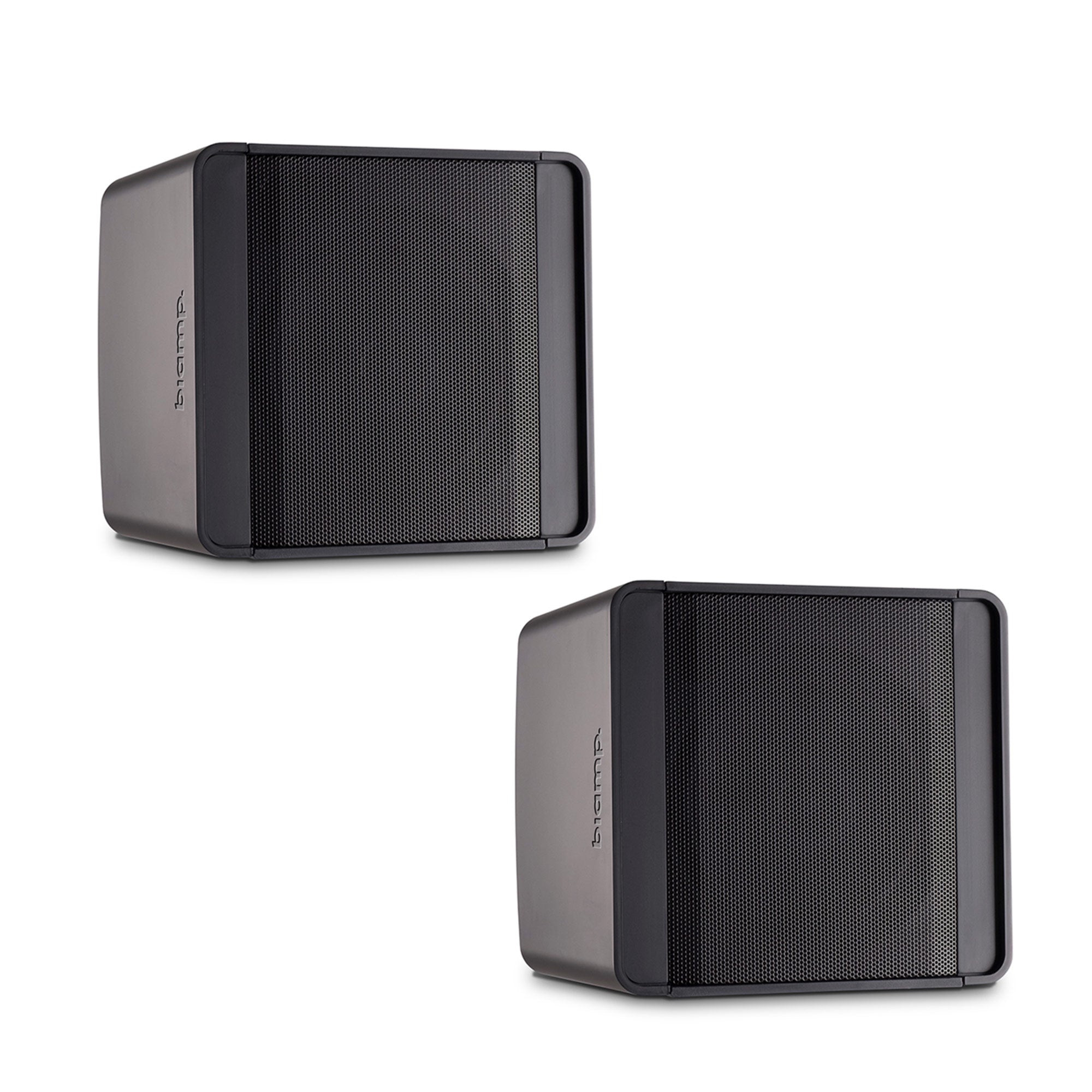

Biamp Desono KUBO3 - Compact 3-Inch Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The compact KUBO3 design loudspeaker comes with a 3" full range driver unit and bass reflex port providing a fast and dynamic bass response. The exceptional symmetrical cube shaped designed KUBO3 produces 40 watts dynamic power at 8 ohms. The K-Mount bracket combined with the carefully designed fixing K-bolts grant you a safe and comfortable loudspeaker hook-up. The easy cable management and 140 deg. vertical or horizontal mounting possibility allows you to install the KUBO3 everywhere on any type of wall or ceiling. The in / link connection with euroblock connectors, offers easy daisy chaining of multiple KUBO loudspeakers. The installer friendly endcaps, held in place by 14 integrated strong neodymium magnets, hide all connections and bracket hardware on both sides. The unseen original and timeless KUBO cabinet will blend audio in with any kind of interior, adding elegance to any environment.
Available in black or white.
Features:
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Magnetically attached end caps hide audio connections and bracket hardware
- Loudspeaker overload protection for 24/7 failsafe operation
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100 deg. x 100 deg. |
| Transducers | 1 x 3" (76 mm) polypropylene cone |
| Continuous Power Handling @ Nominal Impedance | 14V 25W @ 8 ohm (100W peak) |
| Nominal Sensitivity @ 1m | @ 1W 84 dB @ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Peak 104 dB Continuous 98 dB |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 25W - 50W @ 8 ohm (14V - 20V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm_)conductors |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 125 mm x 131 mm x 109 mm (4.9" x 5.2" x 4.3") |
| Weight | 1 kg (2.1 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
Priced individually, but sold in pairs.
The compact KUBO3 design loudspeaker comes with a 3" full range driver unit and bass reflex port providing a fast and dynamic bass response. The exceptional symmetrical cube shaped designed KUBO3 produces 40 watts dynamic power at 8 ohms. The K-Mount bracket combined with the carefully designed fixing K-bolts grant you a safe and comfortable loudspeaker hook-up. The easy cable management and 140 deg. vertical or horizontal mounting possibility allows you to install the KUBO3 everywhere on any type of wall or ceiling. The in / link connection with euroblock connectors, offers easy daisy chaining of multiple KUBO loudspeakers. The installer friendly endcaps, held in place by 14 integrated strong neodymium magnets, hide all connections and bracket hardware on both sides. The unseen original and timeless KUBO cabinet will blend audio in with any kind of interior, adding elegance to any environment.
Available in black or white.
Features:
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Magnetically attached end caps hide audio connections and bracket hardware
- Loudspeaker overload protection for 24/7 failsafe operation
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100 deg. x 100 deg. |
| Transducers | 1 x 3" (76 mm) polypropylene cone |
| Continuous Power Handling @ Nominal Impedance | 14V 25W @ 8 ohm (100W peak) |
| Nominal Sensitivity @ 1m | @ 1W 84 dB @ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Peak 104 dB Continuous 98 dB |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 25W - 50W @ 8 ohm (14V - 20V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm_)conductors |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 125 mm x 131 mm x 109 mm (4.9" x 5.2" x 4.3") |
| Weight | 1 kg (2.1 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
