Biamp Desono KUBO3T - Compact 3-Inch Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.

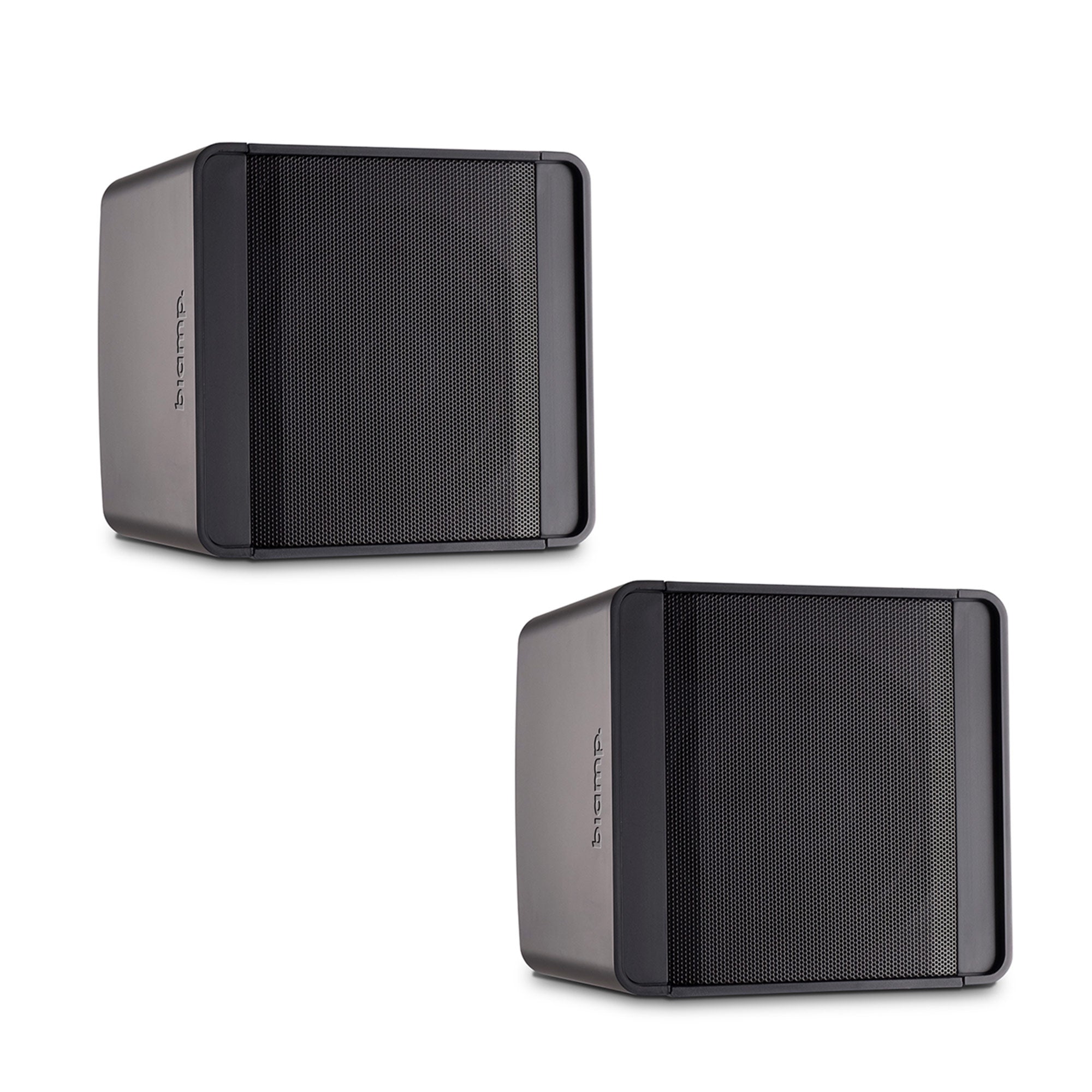

The symmetrical cube-shaped designed KUBO3T comes with a 3" full-range driver unit and bass reflex port. It can be used as a 70/100 volt or low impedance 16 ohms loudspeaker producing up to 40 watts dynamic power. The K-Mount bracket offers easy cable management and 140 deg. vertical or horizontal mounting flexibility. Combined with the special designed fixing K-bolts you can install the loudspeaker in a safe and comfortable way on any type of wall or ceiling. Easy daisy chaining of multiple KUBO loudspeakers can be done via the in / link connection with euroblock connectors. The installer friendly endcaps, held in place by 14 integrated strong neodymium magnets, hide all connections and bracket hardware on both sides. This top-notch product offers amazing sound quality and performance in a discrete and neutral housing fitting any kind of interior.
Available in black or white.
Features:
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Tap switch allows for 70V/100V or 16 ohm low impedance operation
- Loudspeaker overload protection for 24/7 failsafe operation
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100 deg. x 100 deg. |
| Transducers | 1 x 3" (76 mm) polypropylene cone |
| Continuous Power Handling @ Nominal Impedance | 20V 25W @ 16 ohm (100W peak) |
| Nominal Sensitivity @ 1m | @ 1W 86 dB @ 2.83V 83 dB |
| Nominal Maximum SPL @ 1m | Peak 106 dB Continuous 100 dB |
| Transformer | 70V: 10W, 5W, 2.5W, 1.25W 100V: 10W, 5W, 2.5W |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 25W - 50W @ 16 ohm (20V - 28V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm_)conductors |
| Controls | Power tap / low impedance selector switch |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 125 mm x 131 mm x 109 mm (4.9" x 5.2" x 4.3") |
| Weight | 1.2 kg (2.6 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
Priced individually, but sold in pairs.
The symmetrical cube-shaped designed KUBO3T comes with a 3" full-range driver unit and bass reflex port. It can be used as a 70/100 volt or low impedance 16 ohms loudspeaker producing up to 40 watts dynamic power. The K-Mount bracket offers easy cable management and 140 deg. vertical or horizontal mounting flexibility. Combined with the special designed fixing K-bolts you can install the loudspeaker in a safe and comfortable way on any type of wall or ceiling. Easy daisy chaining of multiple KUBO loudspeakers can be done via the in / link connection with euroblock connectors. The installer friendly endcaps, held in place by 14 integrated strong neodymium magnets, hide all connections and bracket hardware on both sides. This top-notch product offers amazing sound quality and performance in a discrete and neutral housing fitting any kind of interior.
Available in black or white.
Features:
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Tap switch allows for 70V/100V or 16 ohm low impedance operation
- Loudspeaker overload protection for 24/7 failsafe operation
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100 deg. x 100 deg. |
| Transducers | 1 x 3" (76 mm) polypropylene cone |
| Continuous Power Handling @ Nominal Impedance | 20V 25W @ 16 ohm (100W peak) |
| Nominal Sensitivity @ 1m | @ 1W 86 dB @ 2.83V 83 dB |
| Nominal Maximum SPL @ 1m | Peak 106 dB Continuous 100 dB |
| Transformer | 70V: 10W, 5W, 2.5W, 1.25W 100V: 10W, 5W, 2.5W |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 25W - 50W @ 16 ohm (20V - 28V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm_)conductors |
| Controls | Power tap / low impedance selector switch |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 125 mm x 131 mm x 109 mm (4.9" x 5.2" x 4.3") |
| Weight | 1.2 kg (2.6 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
