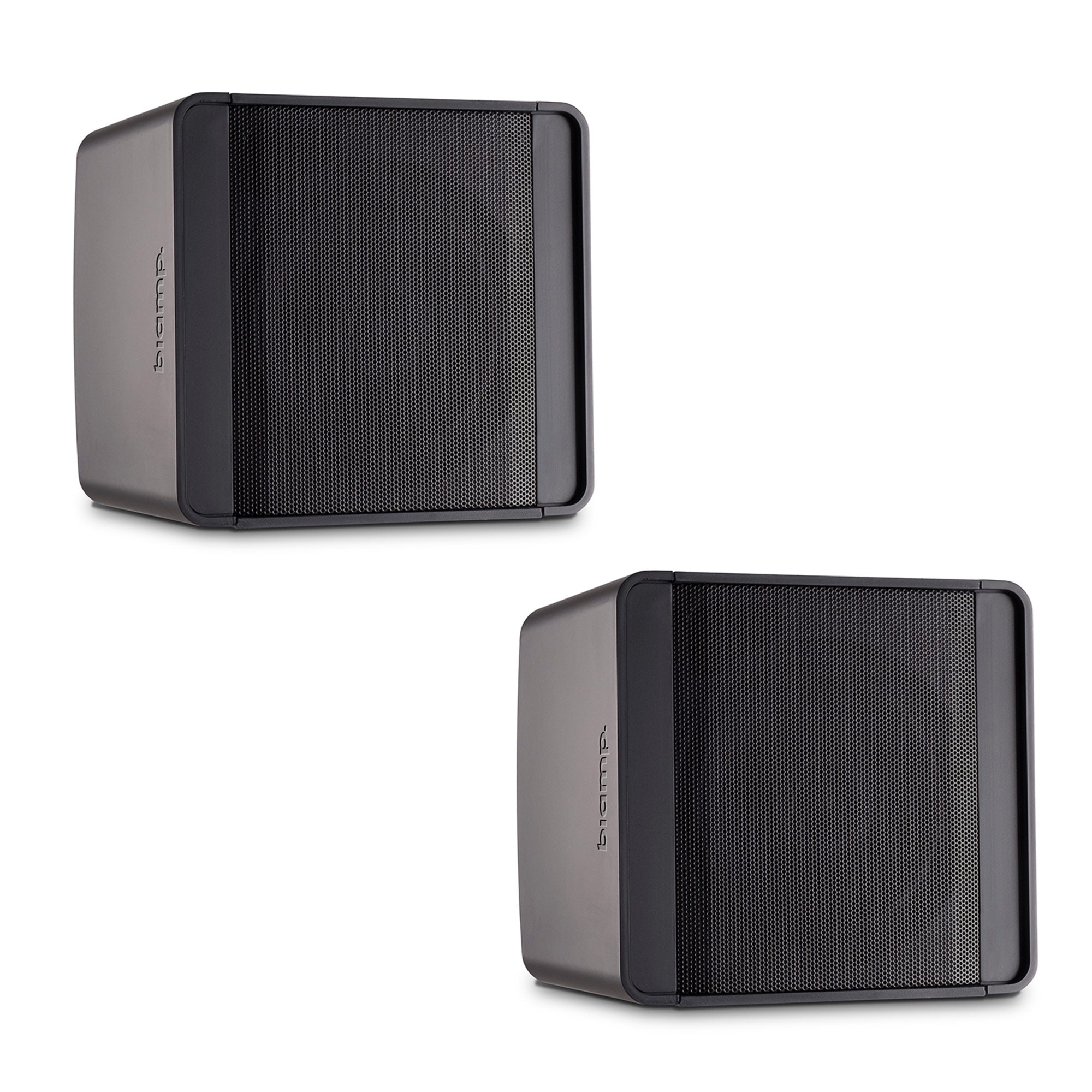

Biamp Desono KUBO5 - Compact 5-Inch Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
KUBO5 is a 5.25" two-way loudspeaker with integrated bass reflex port providing a dynamic and fast bass response. The unseen original and timeless KUBO cabinet produces 80 watts dynamic power at 8 ohms. Multiple KUBO loudspeakers can easily be daisy chained via the in / link connection with euroblock connectors. The K-Mount bracket and fixing K-bolts offer a safe and comfortable loudspeaker hook-up. The easy cable management and 140 deg. vertical or horizontal mounting possibility allows you to install the KUBO5 everywhere on any type of wall or ceiling. The intuitive endcaps are very installer-friendly and are kept in place by 14 integrated strong neodymium magnets, hiding all connections and bracket hardware on both sides.
Available in black or white.
Features:
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Magnetically attached end caps hide audio connections and bracket hardware
- Loudspeaker overload protection for 24/7 failsafe operation
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 70 deg. x 70 deg. |
| Transducers | LF 1 x 5.25" (133 mm) coated paper cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 20V 50W @ 8 ohm (200W peak) |
| Nominal Sensitivity @ 1m | @ 1W 84 dB @ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Peak 107 dB Continuous 101 dB |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 50W - 100W @ 8 ohm (20V - 28V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm_)conductors |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 155 mm x 164 mm x 136 mm (6.1" x 6.4" x 5.3") |
| Weight | 1.7 kg (3.7 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
Priced individually, but sold in pairs.
KUBO5 is a 5.25" two-way loudspeaker with integrated bass reflex port providing a dynamic and fast bass response. The unseen original and timeless KUBO cabinet produces 80 watts dynamic power at 8 ohms. Multiple KUBO loudspeakers can easily be daisy chained via the in / link connection with euroblock connectors. The K-Mount bracket and fixing K-bolts offer a safe and comfortable loudspeaker hook-up. The easy cable management and 140 deg. vertical or horizontal mounting possibility allows you to install the KUBO5 everywhere on any type of wall or ceiling. The intuitive endcaps are very installer-friendly and are kept in place by 14 integrated strong neodymium magnets, hiding all connections and bracket hardware on both sides.
Available in black or white.
Features:
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Magnetically attached end caps hide audio connections and bracket hardware
- Loudspeaker overload protection for 24/7 failsafe operation
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 70 deg. x 70 deg. |
| Transducers | LF 1 x 5.25" (133 mm) coated paper cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 20V 50W @ 8 ohm (200W peak) |
| Nominal Sensitivity @ 1m | @ 1W 84 dB @ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Peak 107 dB Continuous 101 dB |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 50W - 100W @ 8 ohm (20V - 28V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm_)conductors |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 155 mm x 164 mm x 136 mm (6.1" x 6.4" x 5.3") |
| Weight | 1.7 kg (3.7 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
