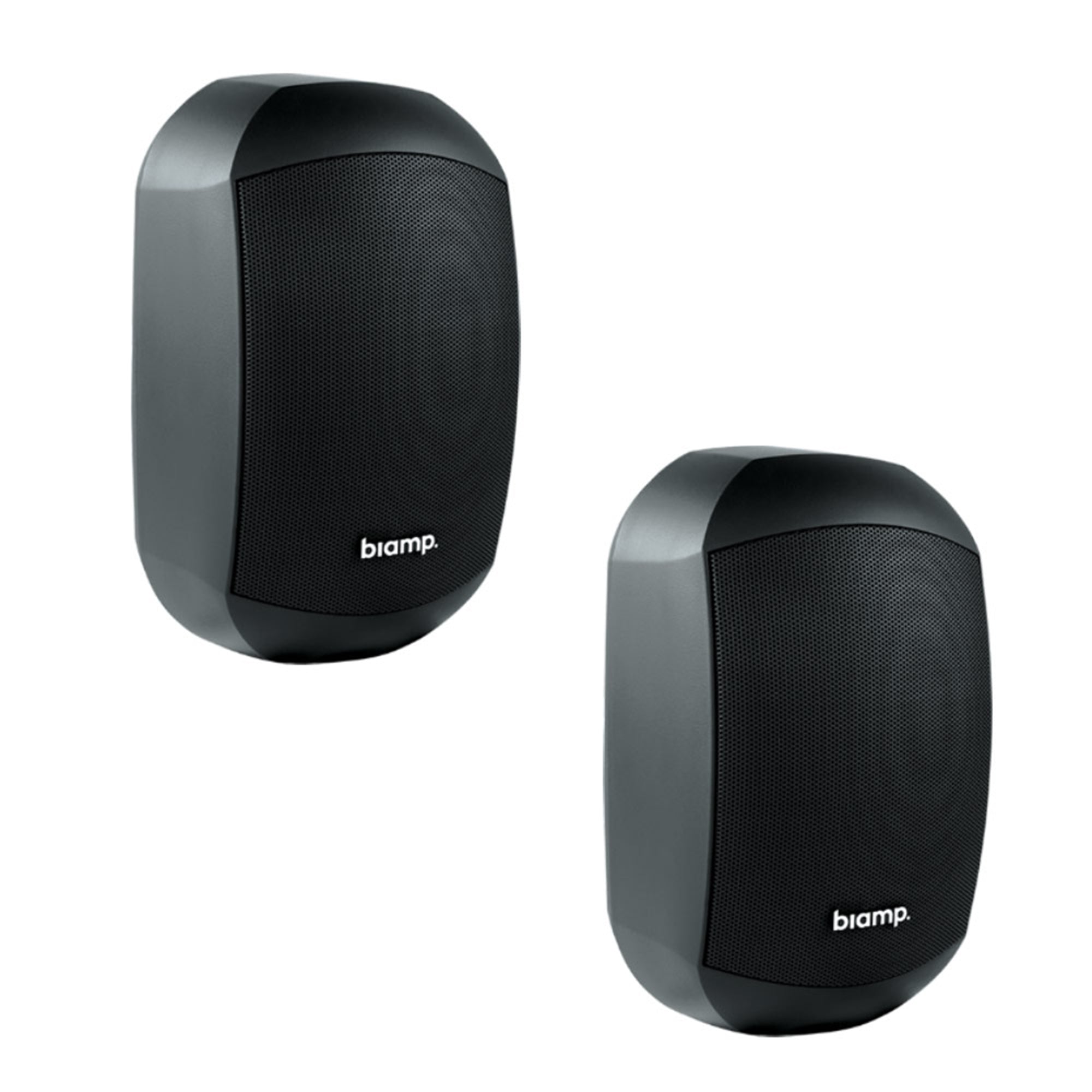

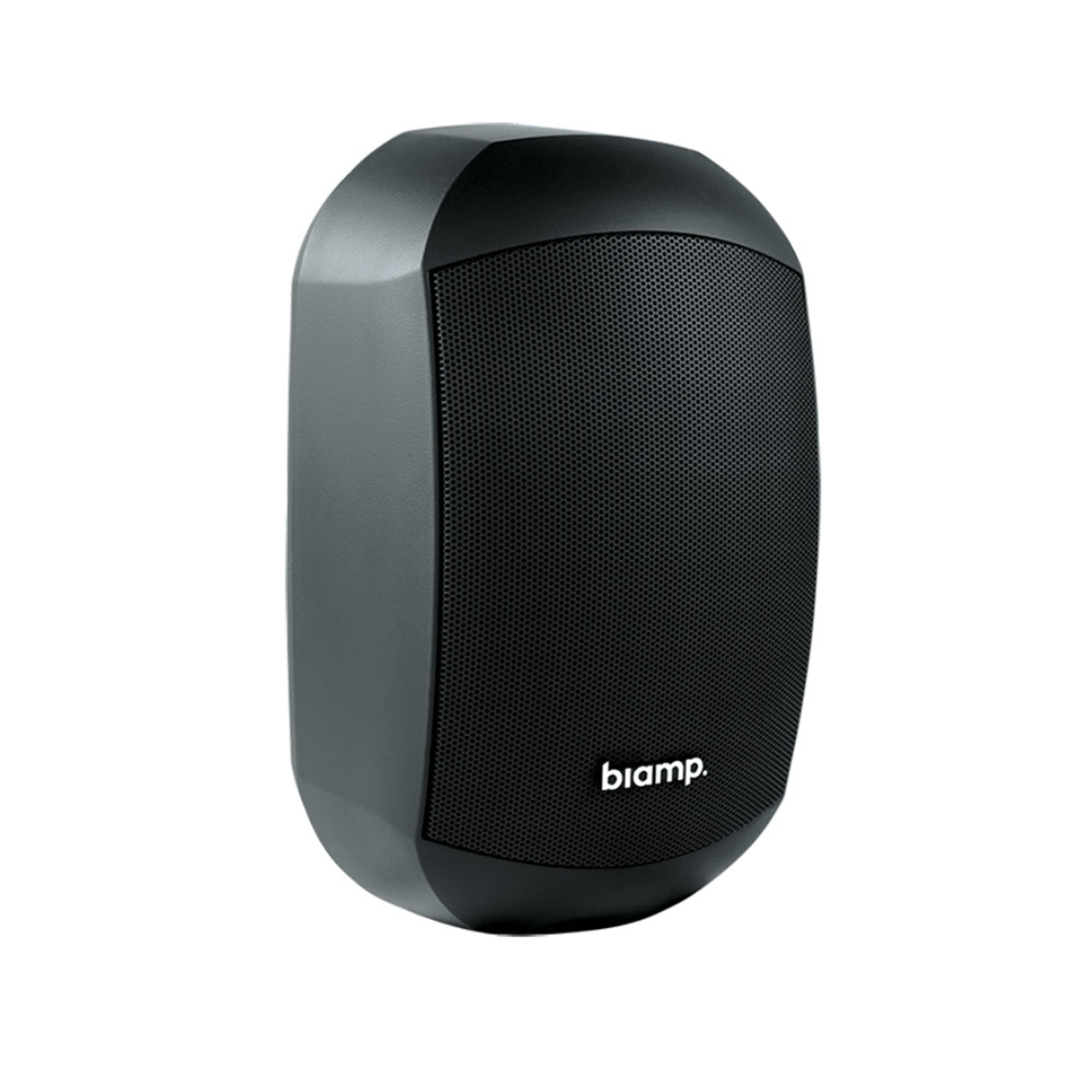

Biamp Desono MASK4CT - Compact Two-Way 4.25-Inch Surface Mount Loudspeaker (Black)


  • Dale #:

    BIAM-MASK4CTBL
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Priced individually, but sold in pairs.The MASK4CT has a unique design and delivers a crystal-clear sound for all music applications. The MASK4CT can be used as a 70V/100V speaker with power tapping on 20 - 10 - 5 - 2.5 watts in 100V or as a low impedance 16 ohm speaker. This results in a versati... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Priced individually, but sold in pairs.

The MASK4CT has a unique design and delivers a crystal-clear sound for all music applications. The MASK4CT can be used as a 70V/100V speaker with power tapping on 20 - 10 - 5 - 2.5 watts in 100V or as a low impedance 16 ohm speaker. This results in a versatile speaker that can be used in any location and any application. The cabinet is made of high quality enforced PP4 ABS, with an aluminum grill. The design of the MASK4CT ensures high quality and long-lasting performance in indoor and outdoor use, even under extreme weather conditions.

The MASK4CT has a powerful 4.25" coated paper cone woofer and a 1" silk dome tweeter which results in a high SPL and extremely low distortion. This ensures an unprecedented clarity over the whole frequency spectrum. The built-in 3-step protection and the high-quality components make the MASK4CT an ultra- reliable, fail safe loudspeaker even at high power loads. Thanks to the revolutionary design of the ClickMount bracket, the MASK4CT is fast and easy to install. The pre-defined clicks on the Clickmount ensure a perfect alignment for every loudspeaker. With the discrete cable management system, integrated spirit level and in/out connectors, the full cabling is done on the bracket.

Available in black or white.

Features:

  • IP64 rated for outdoor applications such as patios or concourses
  • Waterproof connector sealing for outdoor applications
  • Innovative ClickMountª bracket allows all audio connections to be made at the bracket
  • Integrated spirit level for fast, hassle-free positioning and mounting
  • Tap switch allows for 70V/100V or 16 ohm low impedance operation
  • Loudspeaker overload protection for 24/7 failsafe operation

More +

Product Specs

Operating ModePassive
Operating Environment Indoor/Outdoor
Operating Range (-10dB)70 Hz to 22 kHz
Nominal Beamwidth (H x V)100 x 70
TransducersLF 1 x 4.25" (108 mm) coated paper cone
HF 1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance28V 50W @ 16 ohm (200W peak)
Nominal Sensitivity @ 1m@ 1W 88 dB
@ 2.83V 85 dB
Nominal Maximum SPL @ 1mPeak 111 dB
Continuous 105 dB
Transformer70V: 20W, 10W, 5W, 2.5W, 1.25W
100V: 20W, 10W, 5W, 2.5W
Protection3-step self-resetting protection
Recommended Amplifiers50W - 100W @ 16 ohm (28V - 40V)
Input ConnectionAudio connections made at the ClickMount bracket; lever-action input and output terminals accept up to 16 AWG conductors
ControlsPower tap / low impedance selector switch
Mounting ProvisionsClickMount bracket
EnvironmentalIP64 per IEC 60529
Dimensions H x W x D238 mm x 144 mm x 144 mm (9.4" x 5.7" x 5.7")
Weight2.3 kg (5 lbs)
FinishABS plastic, matte finish, White or Black
GrilleAluminum, White (RAL 9016) or Black (RAL 9011) finish
Accessories (included)ClickMount bracket; safety cable
Accessory (optional)MASKCL(-BL/-W): 90 deg. mounting bracket, available in black or white
MASKCV(-BL/-W): 2-cluster mounting bracket, available in black or white
MASKCW(-BL/-W): 4-cluster mounting bracket, available in black or white

More +
