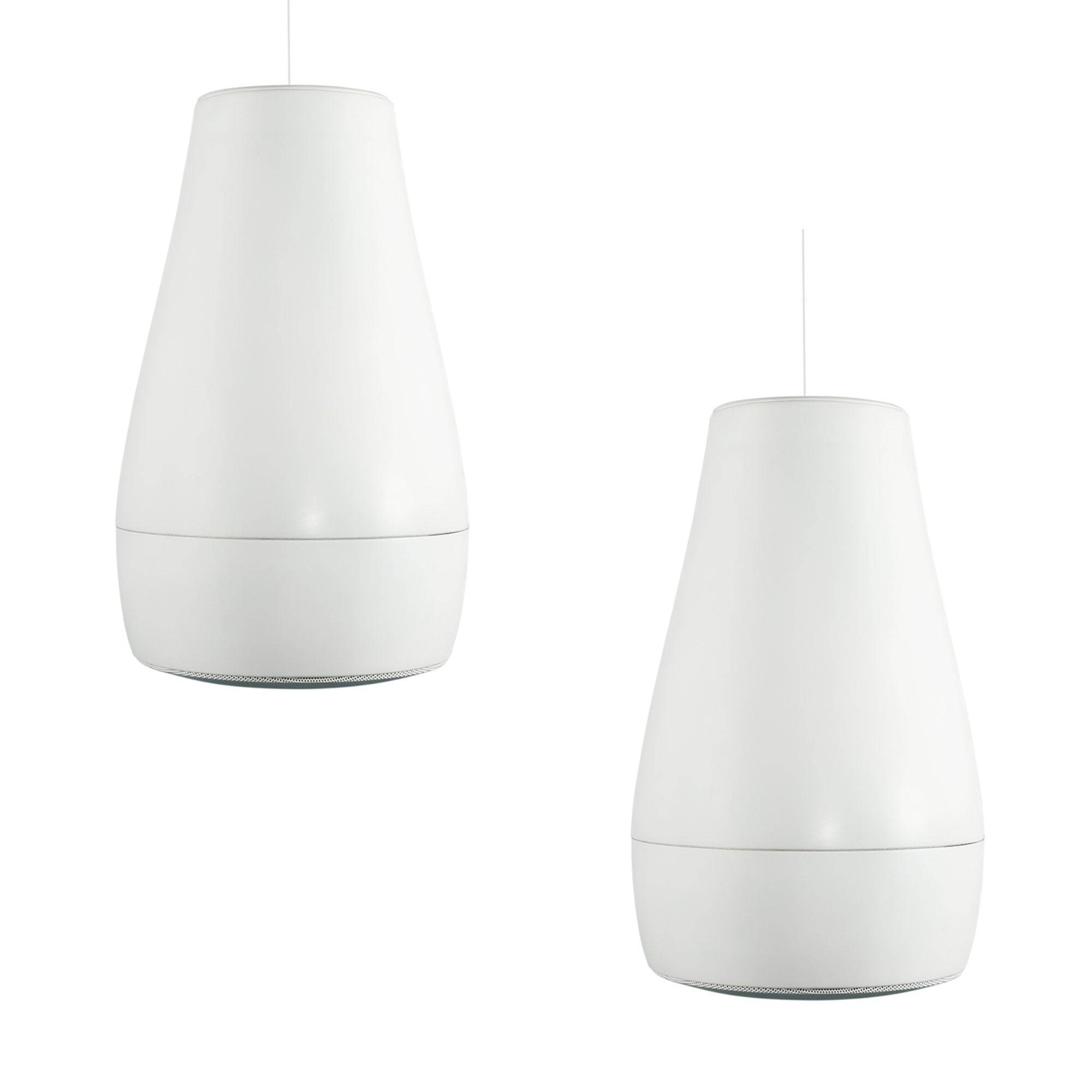

Biamp Desono P6 - Two-Way 6.5-Inch Pendant Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
Desonoª P6 is a two-way passive coaxial loudspeaker intended for full range music reproduction in distributed audio applications. It delivers high intelligibility coupled with a wide coverage area, allowing system designers to use fewer speakers while maintaining superior levels of speech intelligibility.
The P6 utilizes a 6-position switchable transformer ranging from 1.875W to 60W with low-impedance bypass for 70V/100V operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind, the P6 also comes pre-terminated with Magic Cable, a composite cable comprised of two aircraft cables, two audio conductors jacketed separately, and two ripcords for slicing through the cable jackets.
Desono P6 is designed for outdoor splash applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
Features:
- Traditional "raindrop" profile
- 6-ohm nominal impedance
- 90 deg. coverage angle
- 6-position constant voltage tap (1.875W, 3.75W, 7.5W, 15W, 30W, 60W) with low impedance bypass
- Bridge-mounted 1-inch (25mm) soft dome tweeter
- 6.5-inch (165mm) polypropylene woofer mechanically isolated from the high frequency driver
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor/Outdoor (splash applications only) |
| Operating Range | 75 Hz to 18.5 kHz (-10dB) |
| Nominal Beamwidth (H x V) | 90 deg., conical |
| Transducers | LF 1 x 6.5" (165 mm) polypropylene cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 19V 60W @ 6 ohms (240W peak) |
| Nominal Sensitivity @ 1m | @ 1W 86 dB @ 2.83V 88 dB |
| Nominal Maximum SPL @ 1m | Peak 110dB Continuous 104 dB |
| Transformer | 70V: 60W, 30W, 15W, 7.5W, 3.75W, 1.875W 100V: 60W, 30W, 15W, 7.5W, 3.75W |
| Required Accessories | 80 Hz, 12dB/Oct high pass fllter |
| Recommended Amplifiers | 60W - 120W @ 6 ohms (19V-27V) |
| Input Connection | Pre-terminated inside housing |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | Two pre-terminated aircraft cables (one as primary support, one as a safety cable), and Griplock cable fasteners 14 feet (4.3 m) of pre-terminated Magic Cable |
| Compliance | ETL listed to comply with UL 1480A, Certified to CSA C22.2#62368-1 and CSA C22.2#60950-22 Cable listed to comply with UL 13, Class 3 Indoor/Outdoor rated Suspension system and Griplock cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
| Dimensions H x Dia. | 15.6" x 9.4" (397 mm x 238 mm) |
| Weight | 11 lbs (5.0 kg) |
| Finish | PC/ABS V-0 plastic, matte finish Black or White |
| Grille | Powder-coated perforated steel Black or White |
| Accessories (included) | Two Griplock cable fasteners |
| Magic Cable | Aircraft Cables (2): 0.0625" (1.6mm) dia. stainless steel, 7x7 stranding, safe working load per cable 480 lbs (218kg), meets US Fed Standard RR-W-410H Electrical Conductors (2): copper, AWG 18 (0.75mm2), 19/30 stranded Outer Jacket: UV / moisture resistant PVC, WL-1 fire-rated General: O.D. 0.33" (8.5mm), minimum bend radius 2" (51mm), meets UL13 requirements for indoor/outdoor use |
| Accessories (optional) | MC-SK10 inline splice kits; MC-PHK16-12PK pendant hang kits |
Priced individually, but sold in pairs.
Desonoª P6 is a two-way passive coaxial loudspeaker intended for full range music reproduction in distributed audio applications. It delivers high intelligibility coupled with a wide coverage area, allowing system designers to use fewer speakers while maintaining superior levels of speech intelligibility.
The P6 utilizes a 6-position switchable transformer ranging from 1.875W to 60W with low-impedance bypass for 70V/100V operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind, the P6 also comes pre-terminated with Magic Cable, a composite cable comprised of two aircraft cables, two audio conductors jacketed separately, and two ripcords for slicing through the cable jackets.
Desono P6 is designed for outdoor splash applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
Features:
- Traditional "raindrop" profile
- 6-ohm nominal impedance
- 90 deg. coverage angle
- 6-position constant voltage tap (1.875W, 3.75W, 7.5W, 15W, 30W, 60W) with low impedance bypass
- Bridge-mounted 1-inch (25mm) soft dome tweeter
- 6.5-inch (165mm) polypropylene woofer mechanically isolated from the high frequency driver
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor/Outdoor (splash applications only) |
| Operating Range | 75 Hz to 18.5 kHz (-10dB) |
| Nominal Beamwidth (H x V) | 90 deg., conical |
| Transducers | LF 1 x 6.5" (165 mm) polypropylene cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 19V 60W @ 6 ohms (240W peak) |
| Nominal Sensitivity @ 1m | @ 1W 86 dB @ 2.83V 88 dB |
| Nominal Maximum SPL @ 1m | Peak 110dB Continuous 104 dB |
| Transformer | 70V: 60W, 30W, 15W, 7.5W, 3.75W, 1.875W 100V: 60W, 30W, 15W, 7.5W, 3.75W |
| Required Accessories | 80 Hz, 12dB/Oct high pass fllter |
| Recommended Amplifiers | 60W - 120W @ 6 ohms (19V-27V) |
| Input Connection | Pre-terminated inside housing |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | Two pre-terminated aircraft cables (one as primary support, one as a safety cable), and Griplock cable fasteners 14 feet (4.3 m) of pre-terminated Magic Cable |
| Compliance | ETL listed to comply with UL 1480A, Certified to CSA C22.2#62368-1 and CSA C22.2#60950-22 Cable listed to comply with UL 13, Class 3 Indoor/Outdoor rated Suspension system and Griplock cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
| Dimensions H x Dia. | 15.6" x 9.4" (397 mm x 238 mm) |
| Weight | 11 lbs (5.0 kg) |
| Finish | PC/ABS V-0 plastic, matte finish Black or White |
| Grille | Powder-coated perforated steel Black or White |
| Accessories (included) | Two Griplock cable fasteners |
| Magic Cable | Aircraft Cables (2): 0.0625" (1.6mm) dia. stainless steel, 7x7 stranding, safe working load per cable 480 lbs (218kg), meets US Fed Standard RR-W-410H Electrical Conductors (2): copper, AWG 18 (0.75mm2), 19/30 stranded Outer Jacket: UV / moisture resistant PVC, WL-1 fire-rated General: O.D. 0.33" (8.5mm), minimum bend radius 2" (51mm), meets UL13 requirements for indoor/outdoor use |
| Accessories (optional) | MC-SK10 inline splice kits; MC-PHK16-12PK pendant hang kits |
