Biamp Devio Conference / Huddle Room Solution with SCR-20 Hub and TTM-XEX White Tabletop Microphone

  • Dale #:

    BIAM-DEVIOSCR20TXWHITE
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Includes SCR-20 hub and TTM-XEX Tabletop microphone. Devio is a natural extension of how people work every day. With a single USB connection, Devio connects your laptop to the technology in your collaboration space, providing instant access to the room's displays, speakers, microphone, webcam, an... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

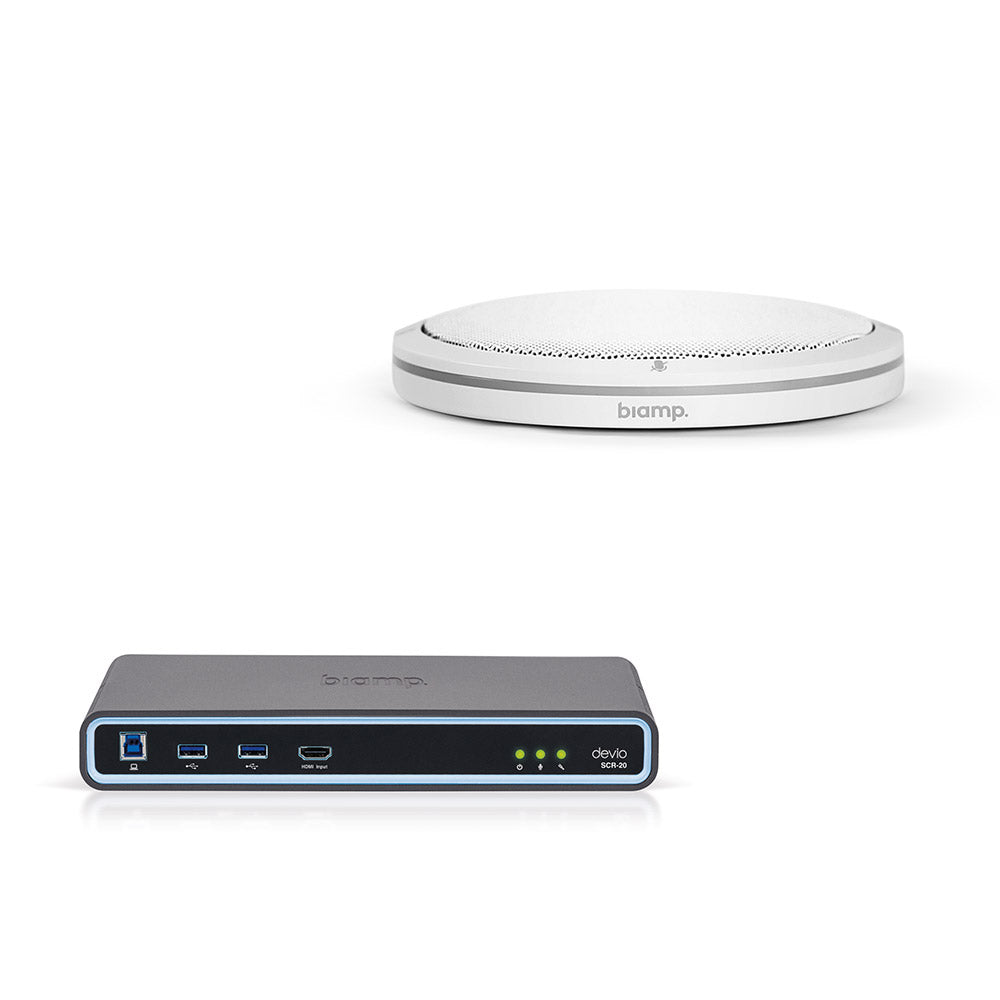

Includes SCR-20 hub and TTM-XEX Tabletop microphone.

Devio is a natural extension of how people work every day. With a single USB connection, Devio connects your laptop to the technology in your collaboration space, providing instant access to the room's displays, speakers, microphone, webcam, and other tools.

Devio's Beamtracking™ microphones, available in both tabletop and ceiling-mounted models, track and intelligently mix conversations from around the table, allowing far-end participants to experience the meeting as it unfolds, breaking down the barriers to truly collaborative experiences.

Hub Features:

  • Works in concert with PCs running web-based conferencing solutions, including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts™/Google Meet, and many more
  • Supports both Windows and Mac PCs, and uses standard audio drivers
  • Supports driverless, pass-through HDMI connectivity to a single in-room display, or to two monitors with USB video using DisplayLink USB graphics technology (requires installation of DisplayLink driver on laptop; supports Windows 7, 8, 8.1, and 10)
  • Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality
  • Can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU)
  • Firmware updates can be scheduled and deployed to multiple Devio units via the SAU
  • Speaker connectivity options include HDMI audio, a built-in 20W amplifier, or RCA line out
  • Includes a mounting bracket for under-the-table installation
  • Ships with one tabletop or ceiling Beamtracking microphone with 360-degree coverage
  • Covered by Biamp Systems' two-year warranty

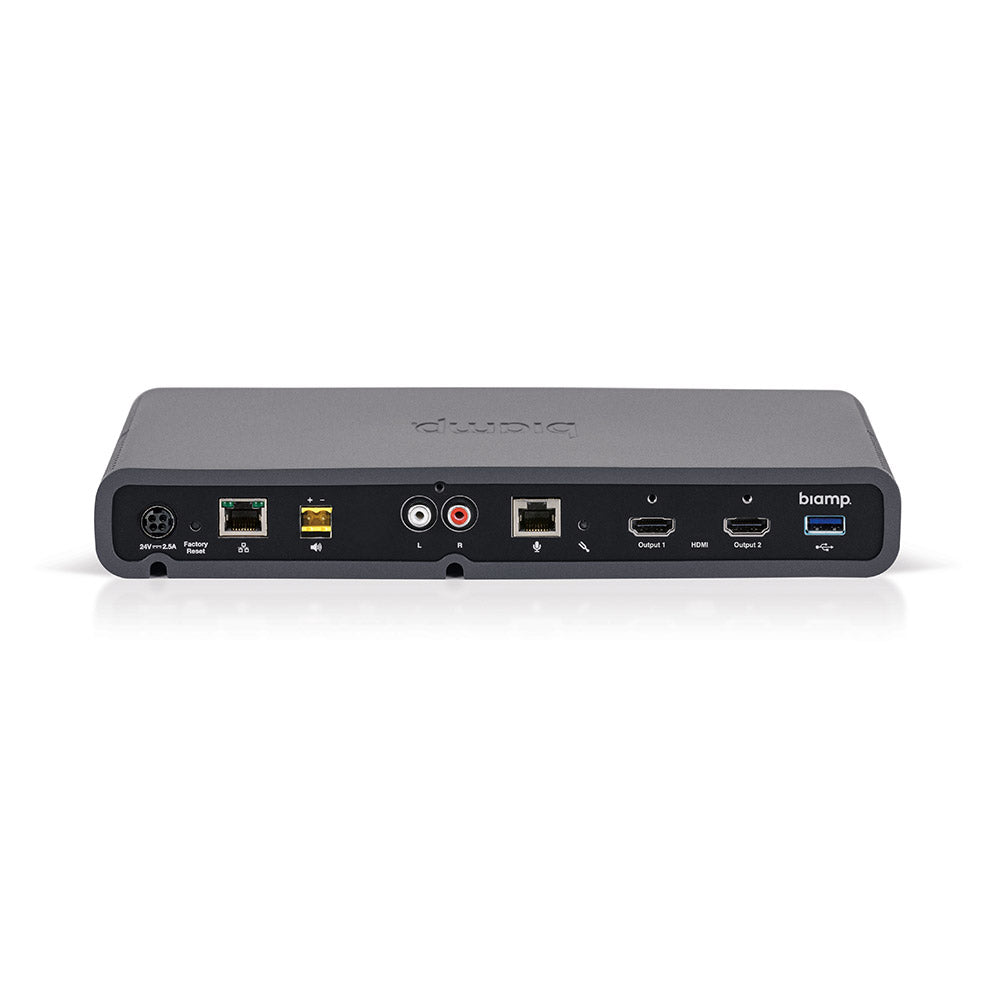

The Devio SCR-20 is a conferencing hub that provides users with exceptional AV experiences when using web-based conferencing systems. Intended for huddle rooms or small conference rooms, the SCR-20 uses Beamtracking™ microphones and professional grade DSP to optimize the audio quality, allowing far-end conference participants to experience the conversation naturally. The Devio SCR-20 supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts™/Google Meet, and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.

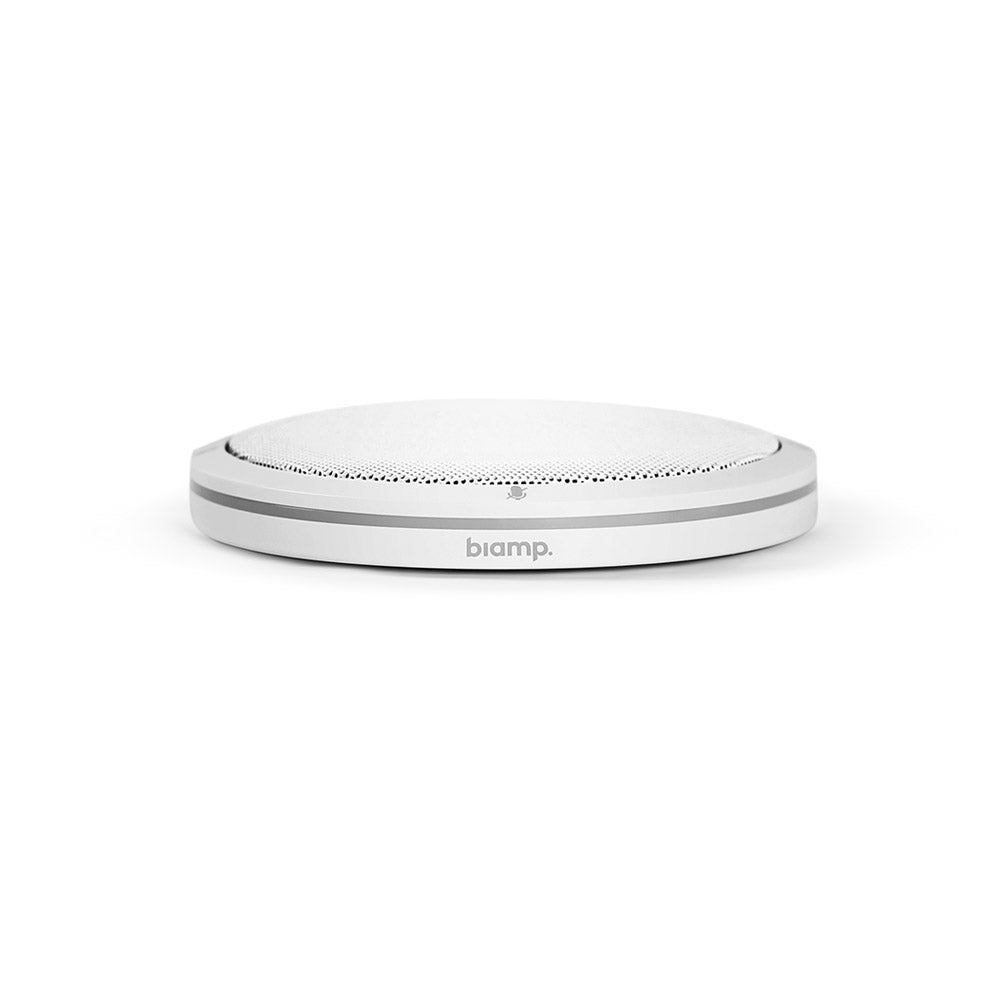

The Parlé TTM-XEX is a low-profile tabletop microphone that utilizes Beamtracking technology to provide full 360 degree coverage of the meeting space. The TTM-XEX actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. The TTM-XEX can either be mounted to or placed on a tabletop.

Microphone Features:

  • Measures 4.7 inches (120 mm) in diameter
  • Sits directly on a tabletop to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Uses only one channel of AEC per mic
  • Single cable connection via category cable
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • LED mute status indicator
  • Available in either black or white
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems two-year warranty

More +

Product Specs

Devio SCR-20 Hub
Network Connection RJ-45 with Ethernet cable (Cat 5e and above)
Front Panel Indicators Mic Status Indicator (Green/Red LED)
Room Tuning Indicator (Green/Red LED)
Power Indicator (Green/Red LED)
Power 24V DC 60W
Video
Supported Resolutions 640 x 480p (60 Hz)
720 x 480p (60 Hz)
720 x 576p (50 Hz)
1280 x 720p (50/60 Hz)
1920 x 1080p (50/60 Hz)
*3840 x 2160p (30 Hz)
Physical Interface HDMI
HDCP Support 1.4
HDMI Audio Formats 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
Amplifier
Number of Channels 1
Continuous Power Output (THD+N < 0.025%) 20 W into Rated Load Impedance
Frequency Response
(20 Hz - 20 kHz)
+0.2/-0.5 dB
THD+N (1 kHz, 20 kHz bandwidth, 1 W) < 0.03%
Dynamic Range (THD+N < 0.5%) 100 dB, A-Weighted
Minimum Operational Load 4?
Intermodulation distortion
(SMPTE, 60 Hz/7 kHz, 4:1, 1W)
< 0.07%
Analog Audio Output (RCA)
Frequency Response (20 Hz - 20 kHz, FS) +0/-0.25 dB
THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS) < 0.005%
Dynamic Range (THD+N < 0.005%) 107 dB, A-Weighted
Output Impedance (unbalanced) 100?
Maximum Output +8.5 dBu
Sampling Rate 48 kHz
D/A Converters 24-bit
USB
Bit Depth 24-bit
Sample Rate 48 kHz
Device Charging **Up to 5 W
Overall Dimensions Height: 1.8 inches (46 mm)
Width: 11.2 inches (284 mm)
Depth: 6.9 inches (175 mm)
Weight 2.0 lbs (0.9 kg)
Environmental
Ambient Operating Temperature Range 32-104° F (0-40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-6,600 ft (0-2000 m) MSL
Compliance FCC Part 15B (USA)
UL and C-UL listed (USA and Canada)
CE Marked (Europe)
RoHS Directive (Europe)
Parle TTM-XEX Microphone
Microphone Technology 16-Element Digital Array
Frequency Response (150 Hz - 16 kHz) ± 3dB
Polar Pattern Beamformed
Sensitivity (94dB SPL, 1kHz) > 74dB
Maximum SPL (at 0.5% THD) 109dB
Dynamic Range (THD+N < 10%) 90dB, A-Weighted
Indicators Mute Indicator
(Green/Red LED)
Digital Interface Custom/Proprietary
Connector RJ-45 (cable length 6.6 feet [2 meters])
Overall Dimensions Height: 0.7 inches (18 mm)
Diameter: 4.3 inches (110 mm)
Weight 0.5 lbs (231 g)
Power Custom/Proprietary
Max Distance Between Devices 33 feet (10 meters) between TTM-XEX and DSP host device
Ambient Operating Temperature Range 32 - 104° F (0 - 40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-10,000 ft (0-3000m) MSL
Compliance FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
