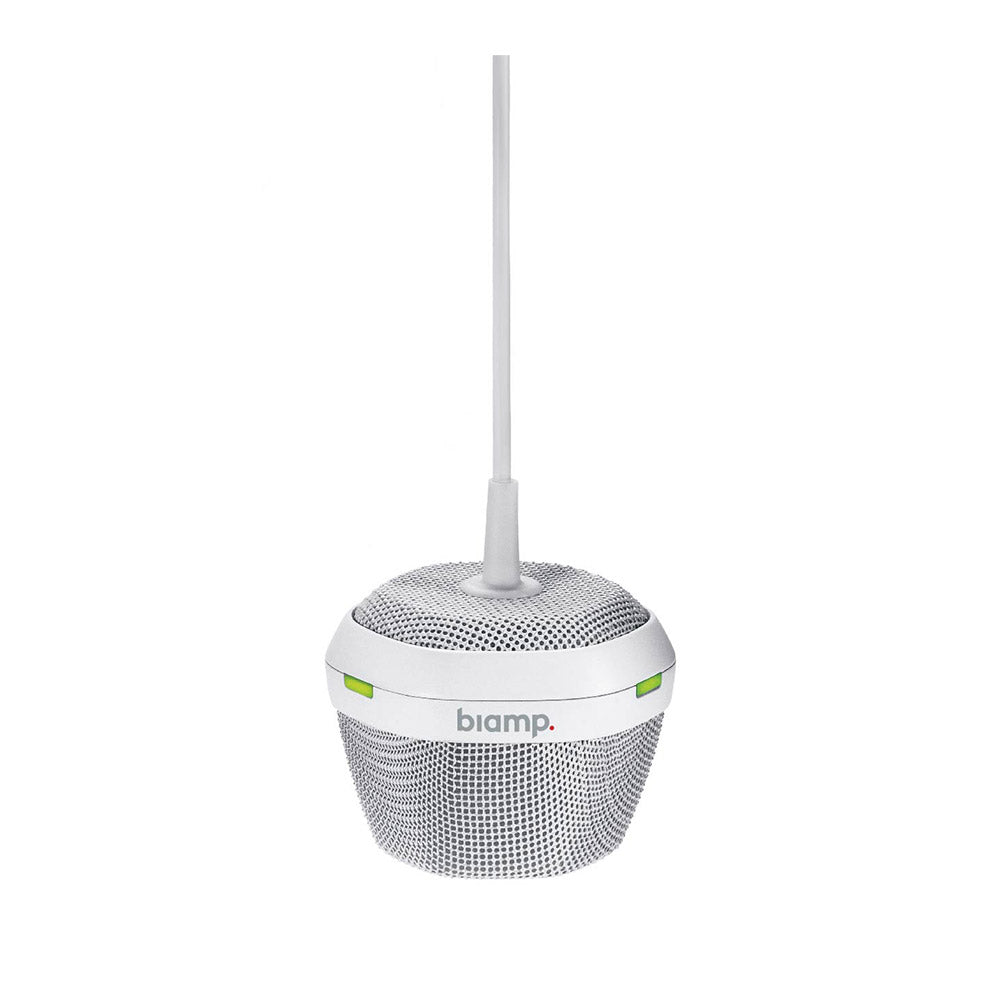

Biamp Devio DCM-1 Beam-Tracking Hanging Microphone (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DCM-1 ceiling microphone includes Beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DCM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally. The Devio DCM-1 has four software-selectable elevation angle modes for optimal sound pickup, and a second DCM-1 microphone can be added to the meeting room if needed.
Features:
- Beamtracking technology actively tracks and intelligently mixes conversations around the table
- Three 120-degree zones for 360 degrees of coverage
- Three LED mute status indicators
- Four selectable elevation angle modes
- User-adjustable mic height
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Easy single-cable installation process
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 for daisy-chain connection to another DCM-1 microphone (maximum of two mics per daisy chain)
- Covered by Biamp Systems two-year warranty
| Microphone Technology | 8-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3 dB |
| Polar Pattern | Active Beamformed |
| Sensitivity (94 dB SPL, 1 kHz) | > 70 dB, A-Weighted |
| Maximum SPL (at 0.5% THD) | 106 dB SPL |
| Dynamic Range (THD+N < 10%) | 92 dB, A-Weighted |
| Automatic Noise Suppression | 4 modes: Off, Low (Default), Medium, High |
| Selectable Elevation Modes | 4 modes: multiple 30¡ selections |
| Power | < 1 W, phantom powered from plenum box |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | Custom 2-pin (cable length 10 feet [3 meters]) |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 2.5 inches (63 mm) Depth: 2.5 inches (63 mm) |
| Weight | 0.38 lbs (0.17 kg) |
The DCM-1 ceiling microphone includes Beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DCM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally. The Devio DCM-1 has four software-selectable elevation angle modes for optimal sound pickup, and a second DCM-1 microphone can be added to the meeting room if needed.
Features:
- Beamtracking technology actively tracks and intelligently mixes conversations around the table
- Three 120-degree zones for 360 degrees of coverage
- Three LED mute status indicators
- Four selectable elevation angle modes
- User-adjustable mic height
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Easy single-cable installation process
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 for daisy-chain connection to another DCM-1 microphone (maximum of two mics per daisy chain)
- Covered by Biamp Systems two-year warranty
| Microphone Technology | 8-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3 dB |
| Polar Pattern | Active Beamformed |
| Sensitivity (94 dB SPL, 1 kHz) | > 70 dB, A-Weighted |
| Maximum SPL (at 0.5% THD) | 106 dB SPL |
| Dynamic Range (THD+N < 10%) | 92 dB, A-Weighted |
| Automatic Noise Suppression | 4 modes: Off, Low (Default), Medium, High |
| Selectable Elevation Modes | 4 modes: multiple 30¡ selections |
| Power | < 1 W, phantom powered from plenum box |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | Custom 2-pin (cable length 10 feet [3 meters]) |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 2.5 inches (63 mm) Depth: 2.5 inches (63 mm) |
| Weight | 0.38 lbs (0.17 kg) |
