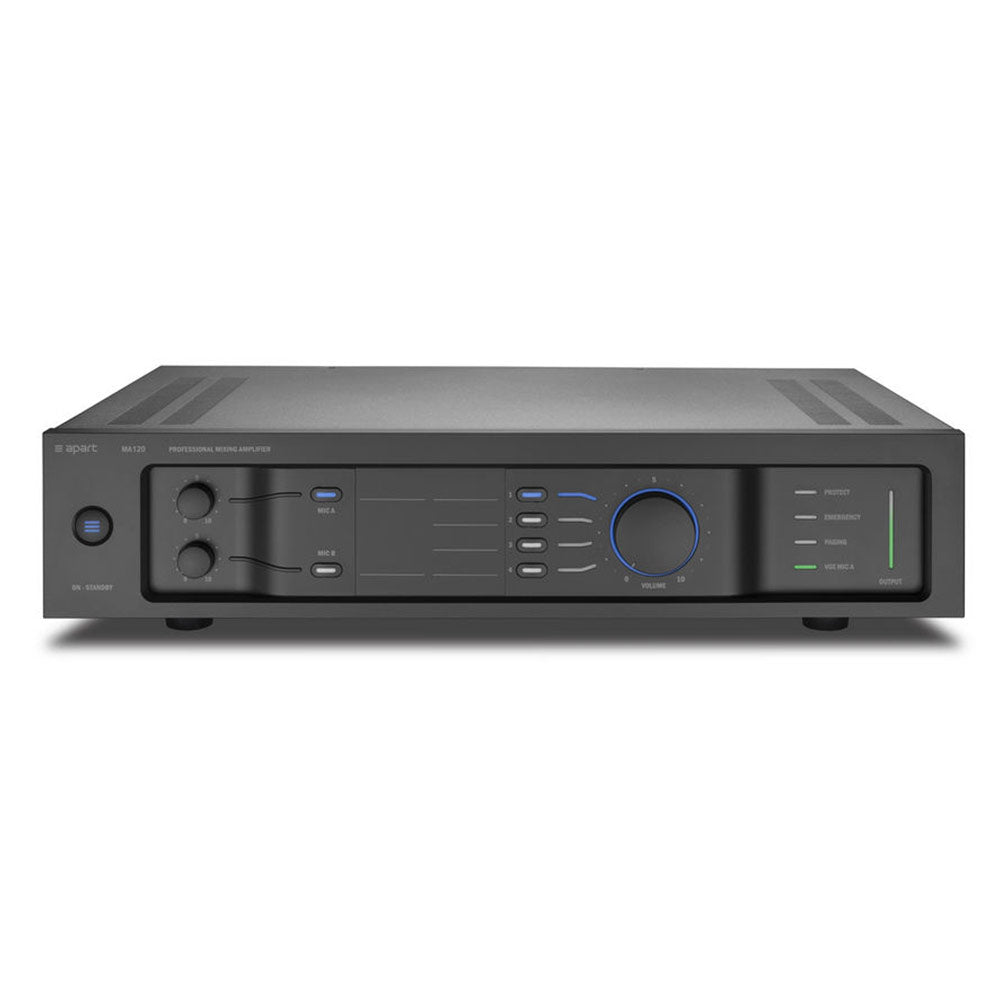

Biamp MA120 Rack Mount 120-Watt Mixer Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The revolutionary MA120 mixing amplifier offers the end-user an unseen cutting-edge design and ease-of-use. The ground-breaking intuitive front panel is clear and easy to use without any unnecessary bells and whistles. The volume control rotary on the front panel is prominent, illuminated, bigger and put in the forefront while the mic volume control is smaller and recessed. The unit offers 120 watts in 70- or 70-volt mode and comes with two mic/line inputs and four stereo line, mono summed inputs. The refreshing rear panel will give every installer an instant gratification due to the sheer and logic design. Together with an unprecedented connectivity and immaculate sound performance these reliable mixing amplifiers will conquer the fixed-install audio market.
| Power supply | 100 - 240 VAC |
| Output power RMS 70 volts watts | 120 |
| Output power RMS 4 ohms watts | 120 |
| Minimum impedance load ohms | 4 |
| MIC inputs balanced | 3 |
| Priority switch | 2 |
| Tone control | Yes |
| Chime | Yes |
| Priority output | Yes |
| Frequency response (in Hz) | 60 - 20 k |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 11.42 |
| Height- rack units (1U=1.73 in) U | 2 |
| Power consumption (max) watts | 160 |
| Zone outputs | Yes |
| Dynamic output power 70 volts watts | 120 |
| Output power tappings | 70 volts - 4 ohms |
| Inputs with Phantom power | 2 |
| Line input unbalanced | 4 |
| VOX mute | Yes |
| Emergency input | Yes |
| Priority levels | 4 |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 11.81 |
| Net weight product (lb.) | 11.02 |
The revolutionary MA120 mixing amplifier offers the end-user an unseen cutting-edge design and ease-of-use. The ground-breaking intuitive front panel is clear and easy to use without any unnecessary bells and whistles. The volume control rotary on the front panel is prominent, illuminated, bigger and put in the forefront while the mic volume control is smaller and recessed. The unit offers 120 watts in 70- or 70-volt mode and comes with two mic/line inputs and four stereo line, mono summed inputs. The refreshing rear panel will give every installer an instant gratification due to the sheer and logic design. Together with an unprecedented connectivity and immaculate sound performance these reliable mixing amplifiers will conquer the fixed-install audio market.
| Power supply | 100 - 240 VAC |
| Output power RMS 70 volts watts | 120 |
| Output power RMS 4 ohms watts | 120 |
| Minimum impedance load ohms | 4 |
| MIC inputs balanced | 3 |
| Priority switch | 2 |
| Tone control | Yes |
| Chime | Yes |
| Priority output | Yes |
| Frequency response (in Hz) | 60 - 20 k |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 11.42 |
| Height- rack units (1U=1.73 in) U | 2 |
| Power consumption (max) watts | 160 |
| Zone outputs | Yes |
| Dynamic output power 70 volts watts | 120 |
| Output power tappings | 70 volts - 4 ohms |
| Inputs with Phantom power | 2 |
| Line input unbalanced | 4 |
| VOX mute | Yes |
| Emergency input | Yes |
| Priority levels | 4 |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 11.81 |
| Net weight product (lb.) | 11.02 |
