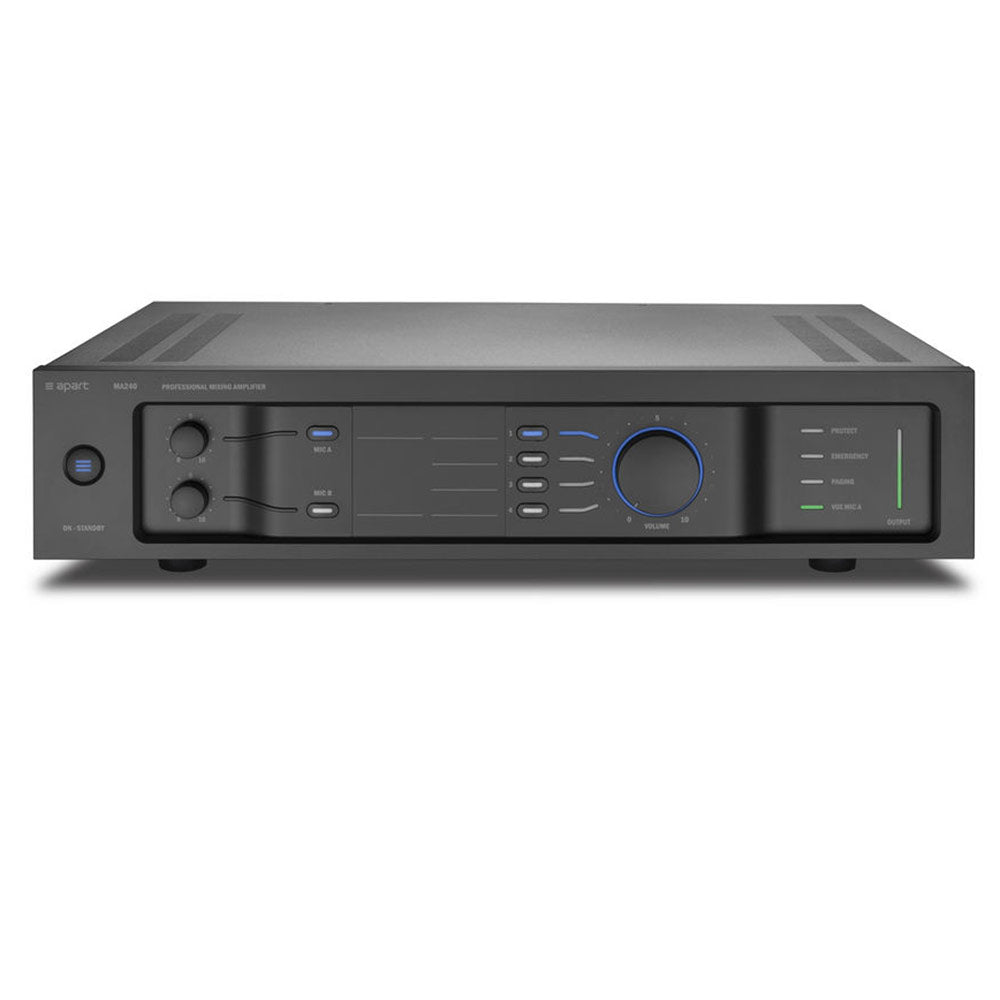

Biamp MA240 Rack Mount 240-Watt Mixer Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The revolutionary 19" MA240 mixer amplifier offers 240 watts in 70- or 100-volt mode and comes with 2 mic/line input and 4 stereo line, mono summed inputs. On the rear you can find smart left-to-right 4 level priority system for audio routing, an emergency input, paging mic with chime and a 24VDC override output. The MA240 has an intuitive user-friendly interface and ground-breaking logical rear panel. Installing or operating this amplifier is a true pleasure for every installer and end-user worldwide.
| Power supply | 100 - 240 VAC |
| Output power RMS 70 volts watts | 240 |
| Output power RMS 4 ohms watts | 240 |
| Minimum impedance load ohms | 4 |
| MIC inputs balanced | 3 |
| Priority switch | 2 |
| Tone control | Yes |
| Chime | Yes |
| Priority output | Yes |
| Frequency response (in Hz) | 60 - 20 k |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 11.42 |
| Height- rack units (1U=1.73 in) U | 2 |
| Power consumption (max) watts | 320 |
| Zone outputs | Yes |
| Dynamic output power 70 volts watts | 240 |
| Output power tappings | 70 volts - 4 ohms |
| Inputs with Phantom power | 2 |
| Line input unbalanced | 4 |
| VOX mute | Yes |
| Emergency input | Yes |
| Priority levels | 4 |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 11.81 |
| Net weight product (lb.) | 13.23 |
The revolutionary 19" MA240 mixer amplifier offers 240 watts in 70- or 100-volt mode and comes with 2 mic/line input and 4 stereo line, mono summed inputs. On the rear you can find smart left-to-right 4 level priority system for audio routing, an emergency input, paging mic with chime and a 24VDC override output. The MA240 has an intuitive user-friendly interface and ground-breaking logical rear panel. Installing or operating this amplifier is a true pleasure for every installer and end-user worldwide.
| Power supply | 100 - 240 VAC |
| Output power RMS 70 volts watts | 240 |
| Output power RMS 4 ohms watts | 240 |
| Minimum impedance load ohms | 4 |
| MIC inputs balanced | 3 |
| Priority switch | 2 |
| Tone control | Yes |
| Chime | Yes |
| Priority output | Yes |
| Frequency response (in Hz) | 60 - 20 k |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 11.42 |
| Height- rack units (1U=1.73 in) U | 2 |
| Power consumption (max) watts | 320 |
| Zone outputs | Yes |
| Dynamic output power 70 volts watts | 240 |
| Output power tappings | 70 volts - 4 ohms |
| Inputs with Phantom power | 2 |
| Line input unbalanced | 4 |
| VOX mute | Yes |
| Emergency input | Yes |
| Priority levels | 4 |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 11.81 |
| Net weight product (lb.) | 13.23 |
