Biamp Modena Hub Plus - Wireless Presentation Hub for Modena Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

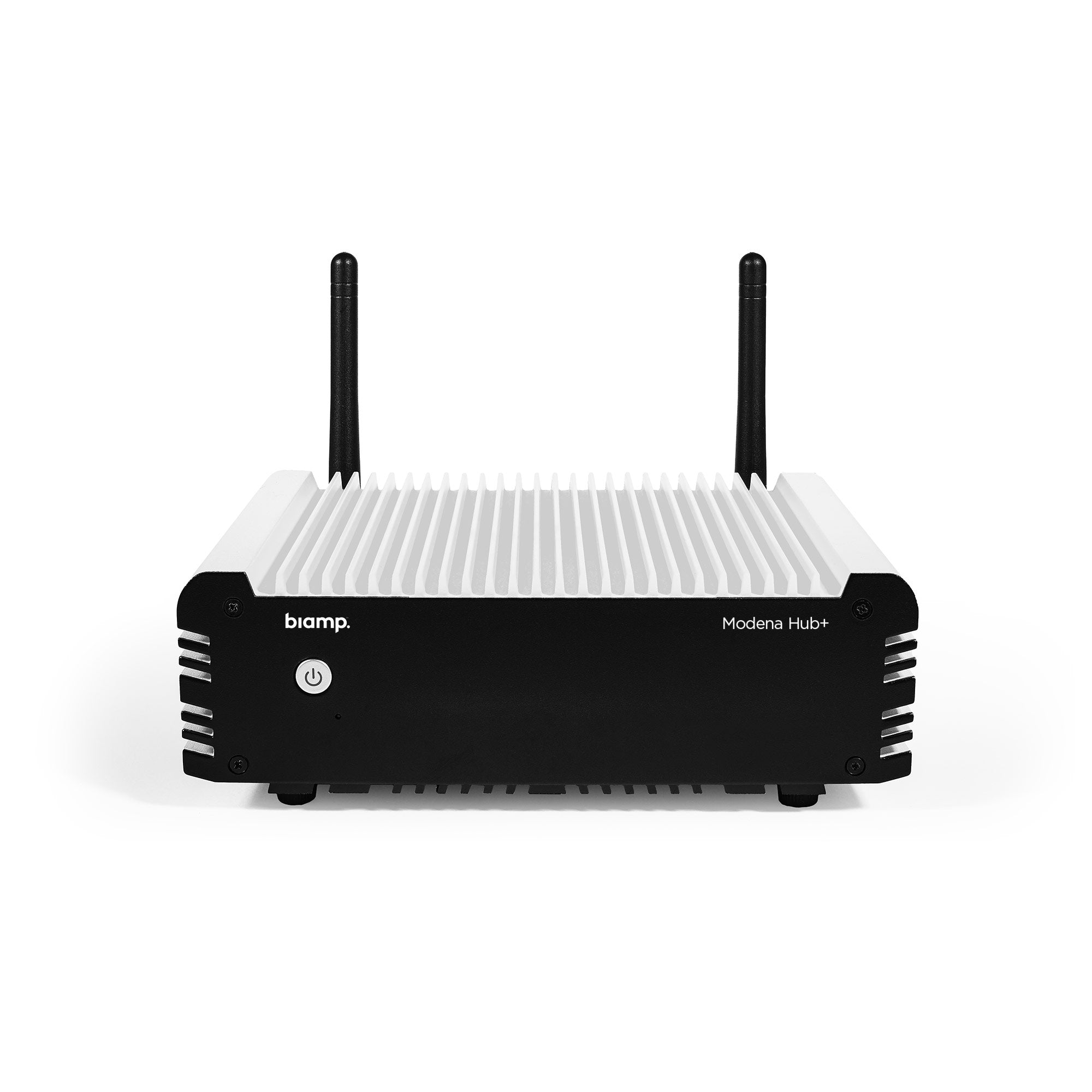

Modena™ Hub+ is a wireless presentation hub that supports the new ways in which people are increasingly accustomed to working. Ideal for BYOD and BYOC spaces, Modena Hub+ allows participants to connect to meeting room AV equipment and USB accessories wirelessly, as well as enabling any participant to wirelessly receive its AV streams during a video conferencing session. Modena Hub+ supports most UC software and hardware devices, while enabling the user to wirelessly share content with other meeting participants. Modena Hub+ also connects to AV peripherals via USB and HDMI, and can support multiple USB devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.
Features:
- Enjoy a client-free experience with your web browser.
- Meet everywhere: With Modena Hub+, any place is a meeting room.
- Enable a display to receive content by connecting a computer running the web or software client, or an Android dongle; or run the Android TV app directly on a smart TV.
- All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
- Configure Modena Hub+ for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
- IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.
| Wireless presentation resolution | Up to HD 1080p@30fps |
| Wireless USB feed resolution | Up to HD 720p@30fps |
| WiFi network interface | IEEE 802.1ac/ a b g n 2.4/5 GHz antennas WPA2-PSK Authentication |
| Wired network connection | Ethernet RJ-45 port, 1000 Mbit/s |
| USB port | USB 2.0/3.0 |
| Media port | HDMI |
| Power | External power adaptor 12V DC |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 6.3 inches (160 mm) Depth: 5.2 inches (132 mm) |
| Weight | 2.4 lbs (1.1 kg) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 Ð 40¡ C) |
| Ambient Storage Temperature Range | -4 - 140¡ F (-20 - 60¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Modena Desktop Client Requirements | CPU: Intel¨ i5 equivalent or faster Web browser: Chromeª, Firefoxª, Edgeª Windows¨ (presenter/viewer): Windows 10 .NET¨ Framework 4.5; Microsoft¨ Direct3D Mac OSX¨ (presenter/viewer): Mac OSX 10.11 or higher |
| Modena Mobile Client Requirements | Android¨: Android 8 or higher iOS¨: iOS 11 or higher |
| Minimum Network Bandwidth | 4 Mbps average / 15 Mbps peak per connected client (upstream when presenting; downstream when receiving) Additional 4 Mbps average / 15 Mbps peak for the videoconference host when using the Wireless USB feature |
| Wireless Connection | 2.4Ghz 802.11n compatible Wifi interface 5Ghz 802.11ac compatible Wifi interface (recommended) Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter) |
| Signal Strength | RSSI on connected devices: stable above -65dBm (recommended> - 60dBm) SNR (RSSI - Noise) on connected devices: stable above 25dB (recommended> 35dB) |
Modena™ Hub+ is a wireless presentation hub that supports the new ways in which people are increasingly accustomed to working. Ideal for BYOD and BYOC spaces, Modena Hub+ allows participants to connect to meeting room AV equipment and USB accessories wirelessly, as well as enabling any participant to wirelessly receive its AV streams during a video conferencing session. Modena Hub+ supports most UC software and hardware devices, while enabling the user to wirelessly share content with other meeting participants. Modena Hub+ also connects to AV peripherals via USB and HDMI, and can support multiple USB devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.
Features:
- Enjoy a client-free experience with your web browser.
- Meet everywhere: With Modena Hub+, any place is a meeting room.
- Enable a display to receive content by connecting a computer running the web or software client, or an Android dongle; or run the Android TV app directly on a smart TV.
- All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
- Configure Modena Hub+ for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
- IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.
| Wireless presentation resolution | Up to HD 1080p@30fps |
| Wireless USB feed resolution | Up to HD 720p@30fps |
| WiFi network interface | IEEE 802.1ac/ a b g n 2.4/5 GHz antennas WPA2-PSK Authentication |
| Wired network connection | Ethernet RJ-45 port, 1000 Mbit/s |
| USB port | USB 2.0/3.0 |
| Media port | HDMI |
| Power | External power adaptor 12V DC |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 6.3 inches (160 mm) Depth: 5.2 inches (132 mm) |
| Weight | 2.4 lbs (1.1 kg) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 Ð 40¡ C) |
| Ambient Storage Temperature Range | -4 - 140¡ F (-20 - 60¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Modena Desktop Client Requirements | CPU: Intel¨ i5 equivalent or faster Web browser: Chromeª, Firefoxª, Edgeª Windows¨ (presenter/viewer): Windows 10 .NET¨ Framework 4.5; Microsoft¨ Direct3D Mac OSX¨ (presenter/viewer): Mac OSX 10.11 or higher |
| Modena Mobile Client Requirements | Android¨: Android 8 or higher iOS¨: iOS 11 or higher |
| Minimum Network Bandwidth | 4 Mbps average / 15 Mbps peak per connected client (upstream when presenting; downstream when receiving) Additional 4 Mbps average / 15 Mbps peak for the videoconference host when using the Wireless USB feature |
| Wireless Connection | 2.4Ghz 802.11n compatible Wifi interface 5Ghz 802.11ac compatible Wifi interface (recommended) Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter) |
| Signal Strength | RSSI on connected devices: stable above -65dBm (recommended> - 60dBm) SNR (RSSI - Noise) on connected devices: stable above 25dB (recommended> 35dB) |
