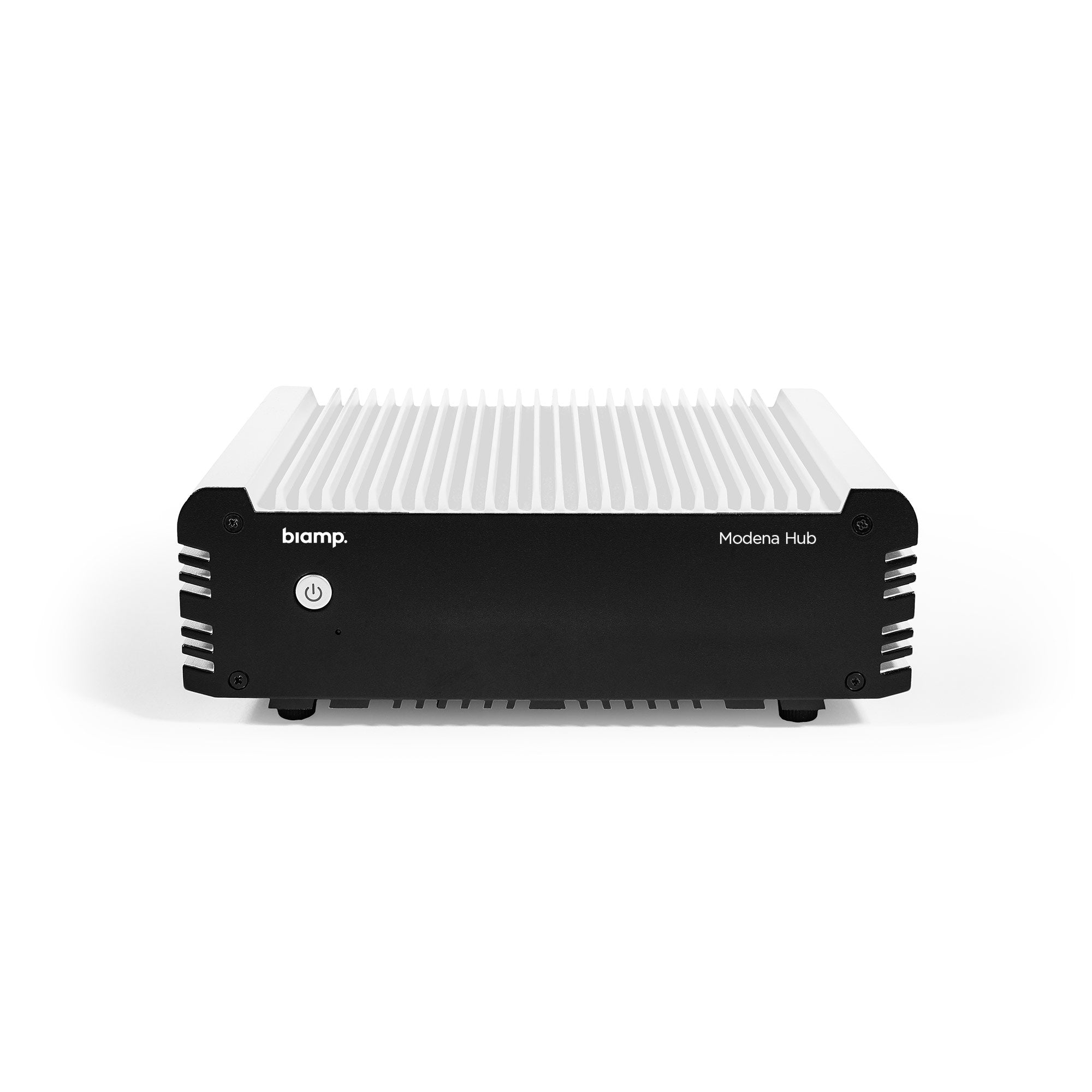

Biamp Modena Hub - Wireless Presentation Hub for Modena Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Modena™ Hub is a wireless presentation hub that supports the new ways in which people are increasingly accustomed to working. Ideal for BYOD and BYOC spaces, Modena Hub allows participants to connect to meeting room AV equipment and USB accessories wirelessly, as well as enabling any participant to wirelessly receive its AV streams during a video conferencing session. Modena Hub supports most UC software and hardware devices, while enabling the user to wirelessly share content with other meeting participants. Modena Hub also connects to AV peripherals via USB and HDMI, and can support multiple USB devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.
Features:
- Enjoy a client-free experience with your web browser.
- Meet everywhere: With Modena Hub, any place is a meeting room.
- Enable a display to receive content by connecting a computer running the web or software client, or and Android dongle; or run the Android TV app directly on a smart TV.
- All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
- Configure Modena Hub for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
- IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.
| Wireless presentation resolution | Up to HD 1080p@30fps |
| Wireless USB feed resolution | Up to HD 720p@30fps |
| Wired network connection | Ethernet RJ-45 port, 1000 Mbit/s |
| USB port | USB 2.0/3.0 |
| Media port | HDMI |
| Power | External power adaptor 12V DC |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 6.3 inches (160 mm) Depth: 5.2 inches (132 mm) |
| Weight | 2.4 lbs (1.1 kg) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 Ð 40¡ C) |
| Ambient Storage Temperature Range | -4 - 140¡ F (-20 - 60¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Modena Desktop Client Requirements | CPU: Intel¨ i5 equivalent or faster Web browser: Chromeª, Firefoxª, Edgeª Windows¨ (presenter/viewer): Windows 10 .NET¨ Framework 4.5; Microsoft¨ Direct3D Mac OSX¨ (presenter/viewer): Mac OSX 10.11 or higher |
| Modena Mobile Client Requirements | Android¨: Android 8 or higher iOS¨: iOS 11 or higher |
| Minimum Network Bandwidth | 4 Mbps average / 15 Mbps peak per connected client (upstream when presenting; downstream when receiving) Additional 4 Mbps average / 15 Mbps peak for the videoconference host when using the Wireless USB feature |
| Wireless Connection | 2.4Ghz 802.11n compatible Wifi interface 5Ghz 802.11ac compatible Wifi interface (recommended) Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter) |
| Signal Strength | RSSI on connected devices: stable above -65dBm (recommended> - 60dBm) SNR (RSSI - Noise) on connected devices: stable above 25dB (recommended> 35dB) |
Modena™ Hub is a wireless presentation hub that supports the new ways in which people are increasingly accustomed to working. Ideal for BYOD and BYOC spaces, Modena Hub allows participants to connect to meeting room AV equipment and USB accessories wirelessly, as well as enabling any participant to wirelessly receive its AV streams during a video conferencing session. Modena Hub supports most UC software and hardware devices, while enabling the user to wirelessly share content with other meeting participants. Modena Hub also connects to AV peripherals via USB and HDMI, and can support multiple USB devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.
Features:
- Enjoy a client-free experience with your web browser.
- Meet everywhere: With Modena Hub, any place is a meeting room.
- Enable a display to receive content by connecting a computer running the web or software client, or and Android dongle; or run the Android TV app directly on a smart TV.
- All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
- Configure Modena Hub for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
- IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.
| Wireless presentation resolution | Up to HD 1080p@30fps |
| Wireless USB feed resolution | Up to HD 720p@30fps |
| Wired network connection | Ethernet RJ-45 port, 1000 Mbit/s |
| USB port | USB 2.0/3.0 |
| Media port | HDMI |
| Power | External power adaptor 12V DC |
| Overall Dimensions | Height: 2 inches (51 mm) Width: 6.3 inches (160 mm) Depth: 5.2 inches (132 mm) |
| Weight | 2.4 lbs (1.1 kg) |
| Ambient Operating Temperature Range | 32 - 104¡ F (0 Ð 40¡ C) |
| Ambient Storage Temperature Range | -4 - 140¡ F (-20 - 60¡ C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Modena Desktop Client Requirements | CPU: Intel¨ i5 equivalent or faster Web browser: Chromeª, Firefoxª, Edgeª Windows¨ (presenter/viewer): Windows 10 .NET¨ Framework 4.5; Microsoft¨ Direct3D Mac OSX¨ (presenter/viewer): Mac OSX 10.11 or higher |
| Modena Mobile Client Requirements | Android¨: Android 8 or higher iOS¨: iOS 11 or higher |
| Minimum Network Bandwidth | 4 Mbps average / 15 Mbps peak per connected client (upstream when presenting; downstream when receiving) Additional 4 Mbps average / 15 Mbps peak for the videoconference host when using the Wireless USB feature |
| Wireless Connection | 2.4Ghz 802.11n compatible Wifi interface 5Ghz 802.11ac compatible Wifi interface (recommended) Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter) |
| Signal Strength | RSSI on connected devices: stable above -65dBm (recommended> - 60dBm) SNR (RSSI - Noise) on connected devices: stable above 25dB (recommended> 35dB) |
