Biamp Plenum Box 12X12 - Mounting Enclosure for Biamp Devices
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

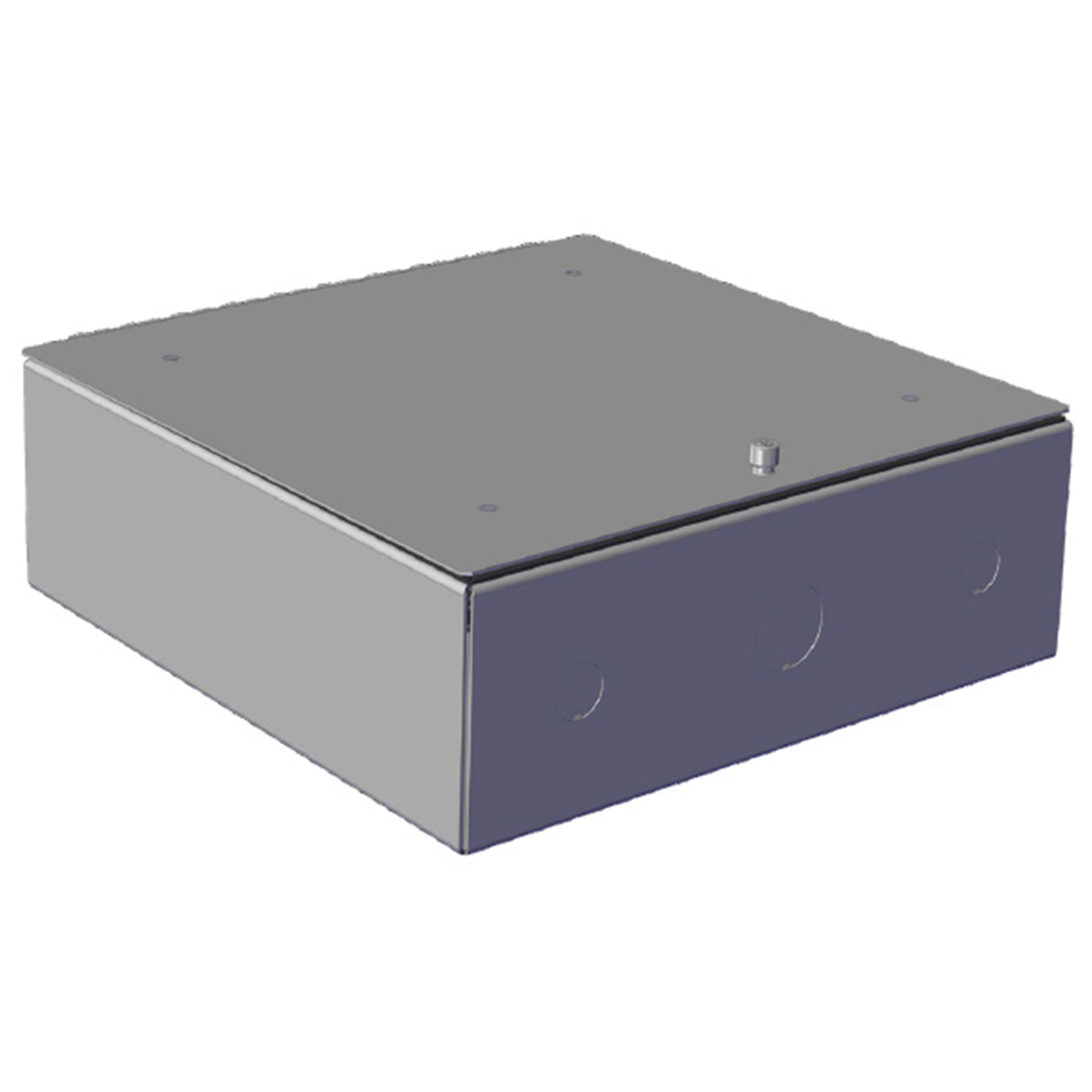

The Plenum Box 12x12 is a fire-resistant enclosure used to install a variety of Biamp devices in plenum spaces. The Biamp Plenum Box 12x12 is UL2043 compliant and is approved for use in air-handling plenums. This product also meets Chicago Building Code Chapter 14E-3 requirements for use in a plenum space within the city of Chicago.
Features:
- 12" x 12" plenum-rated box for ceilings or walls
- 9 different hole location for wiring flexibility
- Thumb screw lock for cramped spaces
- Laser edged knockouts for plenum compatibility
- Internal mounting holes for all Biamp conferencing solutions
| Conduit Knockouts | 3 knockouts per side (1) 1.4 inches (34.6mm) for 1Ó conduit (2) 1.1 inches (8.5mm) for _Ó conduit |
| Devices Supported | TesiraFortŽ X 400 / X 800 / X 1600 Devio SCX 400 / 800 TesiraCONNECT TC-5 / TC-5D TesiraAMP-450BP / AMP-450P ParlŽ TCM-1 / TCM-1A / TCM-X / TCM-XA |
| Overall Dimensions | Height: 12 inches (305 mm) Width: 12 inches (305mm) Depth: 4.1 inches (104 mm) Box 0.5 inches (13mm) Thumbscrew |
| Weight | 10 lbs (4.5 kg) |
| Compliance | UL2043 CCEA Chicago Plenum Compliant |
The Plenum Box 12x12 is a fire-resistant enclosure used to install a variety of Biamp devices in plenum spaces. The Biamp Plenum Box 12x12 is UL2043 compliant and is approved for use in air-handling plenums. This product also meets Chicago Building Code Chapter 14E-3 requirements for use in a plenum space within the city of Chicago.
Features:
- 12" x 12" plenum-rated box for ceilings or walls
- 9 different hole location for wiring flexibility
- Thumb screw lock for cramped spaces
- Laser edged knockouts for plenum compatibility
- Internal mounting holes for all Biamp conferencing solutions
| Conduit Knockouts | 3 knockouts per side (1) 1.4 inches (34.6mm) for 1Ó conduit (2) 1.1 inches (8.5mm) for _Ó conduit |
| Devices Supported | TesiraFortŽ X 400 / X 800 / X 1600 Devio SCX 400 / 800 TesiraCONNECT TC-5 / TC-5D TesiraAMP-450BP / AMP-450P ParlŽ TCM-1 / TCM-1A / TCM-X / TCM-XA |
| Overall Dimensions | Height: 12 inches (305 mm) Width: 12 inches (305mm) Depth: 4.1 inches (104 mm) Box 0.5 inches (13mm) Thumbscrew |
| Weight | 10 lbs (4.5 kg) |
| Compliance | UL2043 CCEA Chicago Plenum Compliant |
