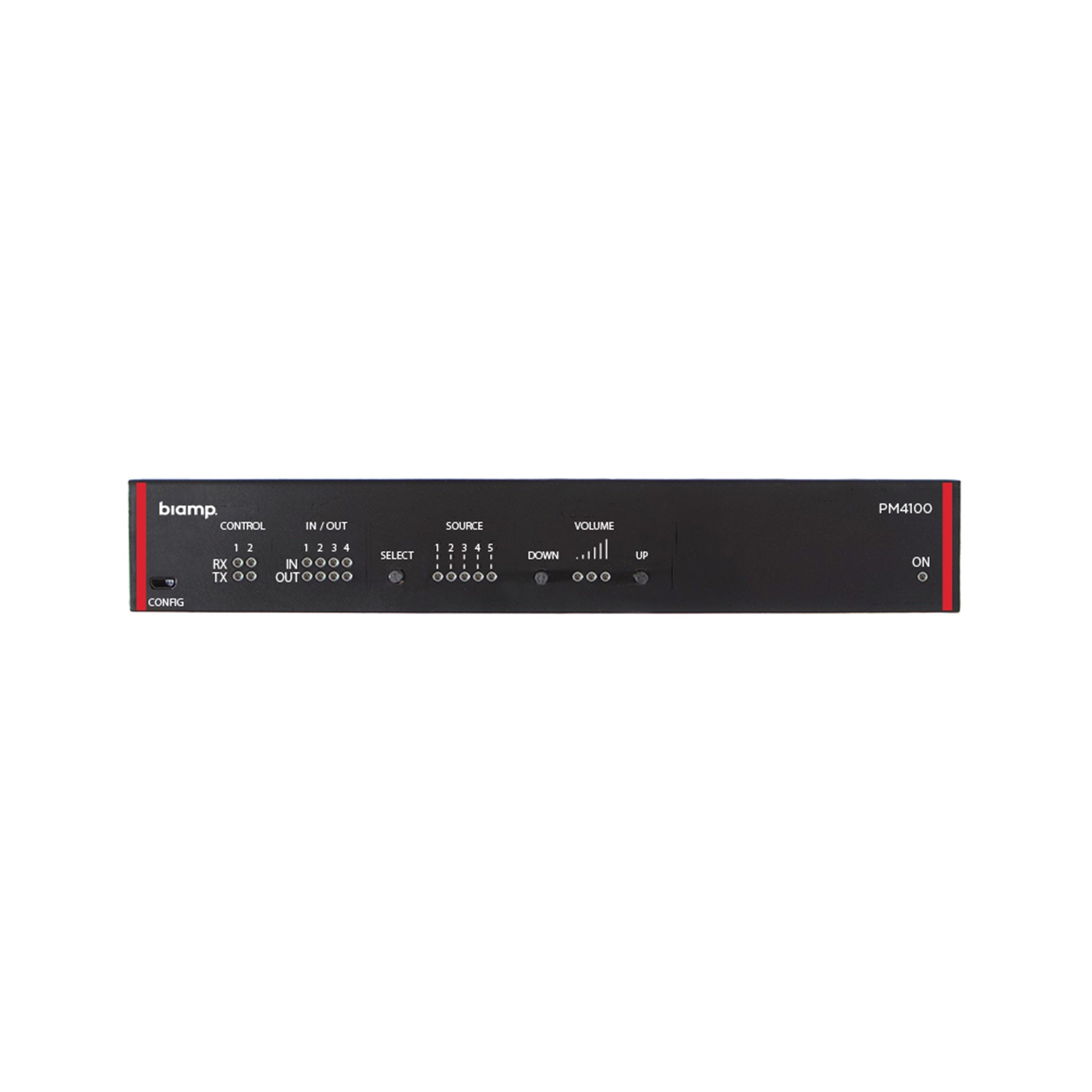

Biamp PM4100 - Stereo Install Preamplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PM4100 is a multi-functional stereo preamplifier controlled via the network or RS-232 connection. The PM4100 is equipped with four stereo inputs, 4 GPIO, and one stereo output. It integrates easily with a variety of control systems and the USB input enables direct audio connection and volume control from a computer. The PM4100 can be powered by either PoE or 12V DC. Its audio performance, ease-of-use, and versatile feature set makes the PM4100 ideal for a variety of professional audio applications.
Features:
- Four unbalanced stereo inputs
- One balanced stereo output
- 2 bi-directional RS-232 ports for third party control with feedback
- 4 GPIO for control of relays, switches, and sensors
- Possible to mix Input 1 with the current selected input
- 3 band equalizer for bass, mid and treble control
- Auto standby mode
- PoE powered (IEEE 802.3at Class 2, 7W)
- When powered by PoE the 12V DC output supplies power for external devices such as control systems
- Covered by Biamp Systems' five-year warranty
| Network Connection | RJ-45 with Ethernet (CAT5e or better) |
| INPUTS | |
| Number of Inputs | 4 (stereo) |
| Connector | RCA |
| Input Impedance | < 100k½ |
| Max Input Level | 2 Vrms |
| Input Gain (adjustable) | ± 12 dB |
| Wake on Signal | Adjustable level |
| OUTPUTS | |
| Number of Outputs | 1 (stereo) |
| Output impedance | 100½ |
| Output Level (@ 0 dB FS) | 1.3 Vrms |
| Connector | 5-pin, 0.3-inch Euroblock |
| USB | |
| Connector | USB 2.0 Type-B |
| Bit Depth | 16-bit |
| Sample Rate | 48kHz |
| GPIO | |
| Number of Ports | 4 |
| Connector | 5-pin, 0.3-inch Euroblock |
| Type | Open drain |
| Input Trigger Low | < 1V DC |
| Input Trigger High | > 4V DC |
| Isolated Output | No |
| Max Voltage | 24V DC |
| Max Current | 0.5 A |
| RS-232 / IR | |
| Number of Ports | 2 (bidirectional) |
| Connector | 3-pin, 0.3-inch Euroblock |
| Baud Rate | 1200 Ð 115200 bit/sec |
| Data Bits | 7, 8 |
| Parity | Even, Odd, None |
| Stop Bits | 1, 2 |
| IR Frequency Range | 400 Hz to 500 kHz |
| Power | |
| Main | 12V DC 5W |
| PoE | IEEE 802.3at Class 2, 7W |
| Cooling | Convection |
| Overall Dimensions | Height: 1.5 inches (37 mm) Width: 8.6 inches (218 mm) Depth: 2.8 inches (70 mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Ambient Operating Temperature Range | 32 - 86¡ F (0 Ð 30¡ C) |
| Humidity | 10-90% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Compliance | FCC Part 15B (USA) UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
