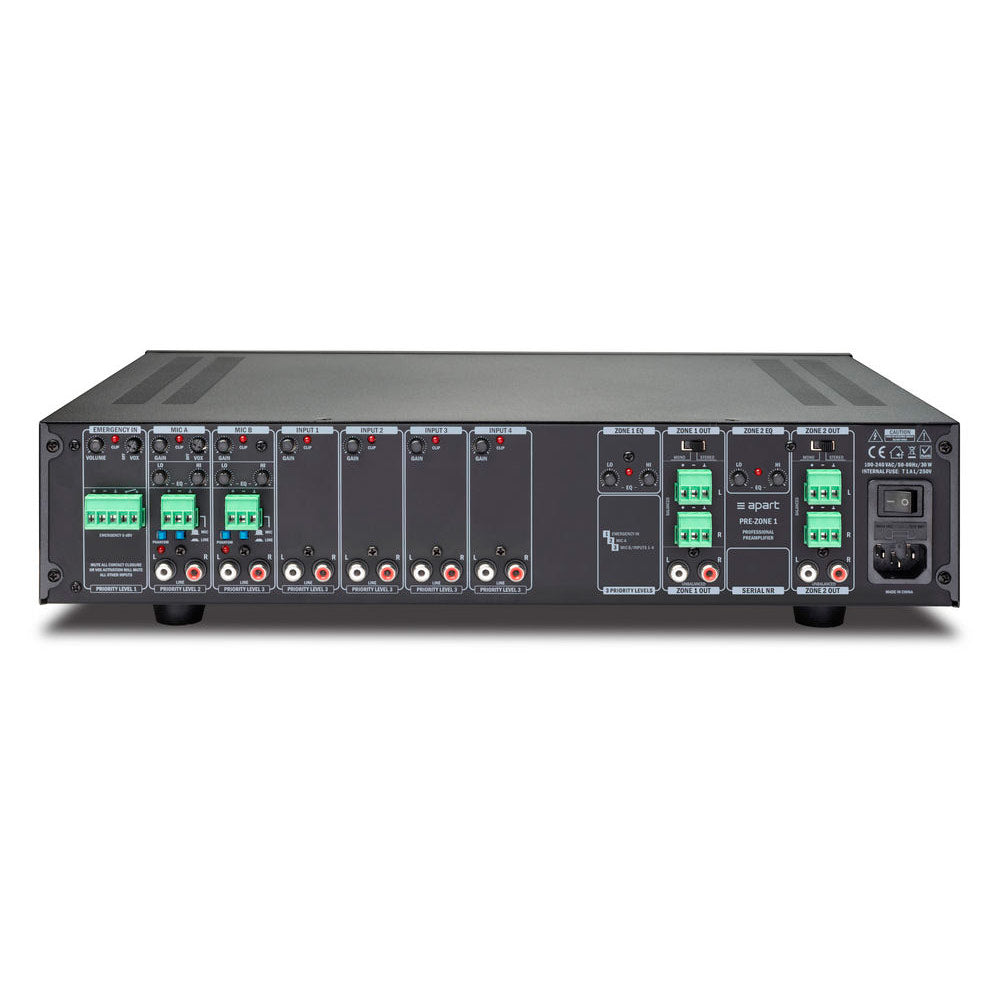

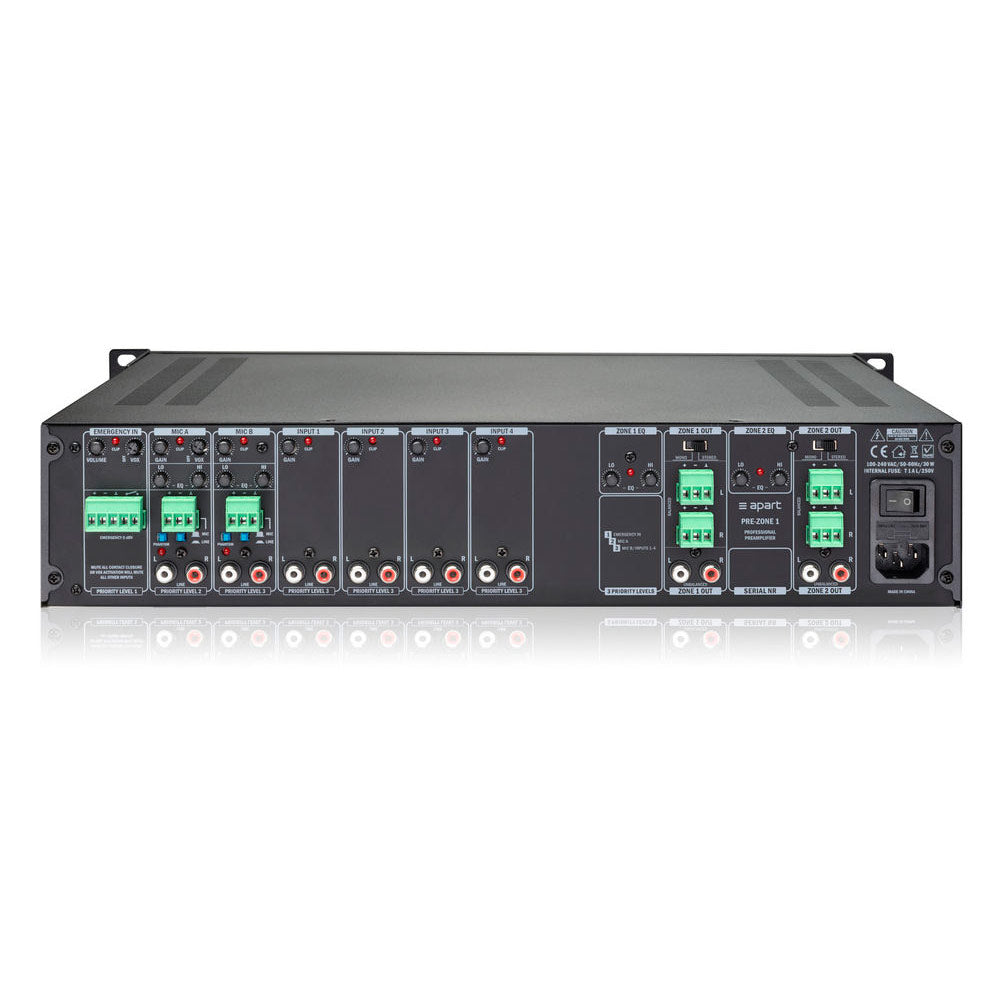

Biamp PRE-ZONE1 Stereo Preamp/2-Zone Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PREZONE1 is a multi-functional stereo preamplifier that allows you to independently control the volume in 2 stereo zones. It gives you the possibility to mix the 2 microphone levels easily with one of the 4 music sources. The innovative and extremely intuitive design of the front panel will instantly indicate how to operate the progressive PREZONE1. The logical rear panel will give every installer an instant understanding on how to install the unit. It’s easy to distinguish the PREZONE1 from its competitors. Its higher signal to noise ratio, ease-of-use, logical design and versatile installer features makes it suitable for almost every professional audio application.
| 19" rack mounting | Yes |
| Depth (build in) | 11.42 in |
| Power supply | 100 - 240 VAC |
| Zone outputs | 2 stereo |
| Signal to noise level SNR (dB) | >97 |
| Crosstalk (dB) | >70 |
| MIC level control | Yes |
| Source selection per zone | No |
| Inputs with Phantom power | 2 |
| Noise gate on MIC | No |
| Selectable output dynamics | No |
| Line input unbalanced | 4 |
| Tone control | Yes |
| Wall panel controls | Yes |
| VOX mute | Yes |
| Chime | Yes |
| Priority output contact | Yes |
| Frequency response (in Hz) | 20 - 20 k |
| Applicable low impedance | Yes |
| Height - rack units (1U=1.73 in) | 2 U |
| Depth (incl front) | 12.01 in |
| Power consumption (max) | 30 watts |
| SPDIF output | No |
| Total harmonic distortion THD (%) | <0.2 |
| Music level control | Yes |
| VCA level control | No |
| MIC inputs balanced | 2 |
| Phantom power voltage | 48 volts |
| Selectable input dynamics | No |
| Line input balanced Line input SPDIF |
No |
| RS232 (serial communication port) | No |
| Priority input contact | Yes |
| Maximum qty paging Mics | 1 |
| Emergency input | Yes |
| Priority levels | 3 |
| Applicable in 70V | Yes |
| Net weight product (lb) | 8.05 |
