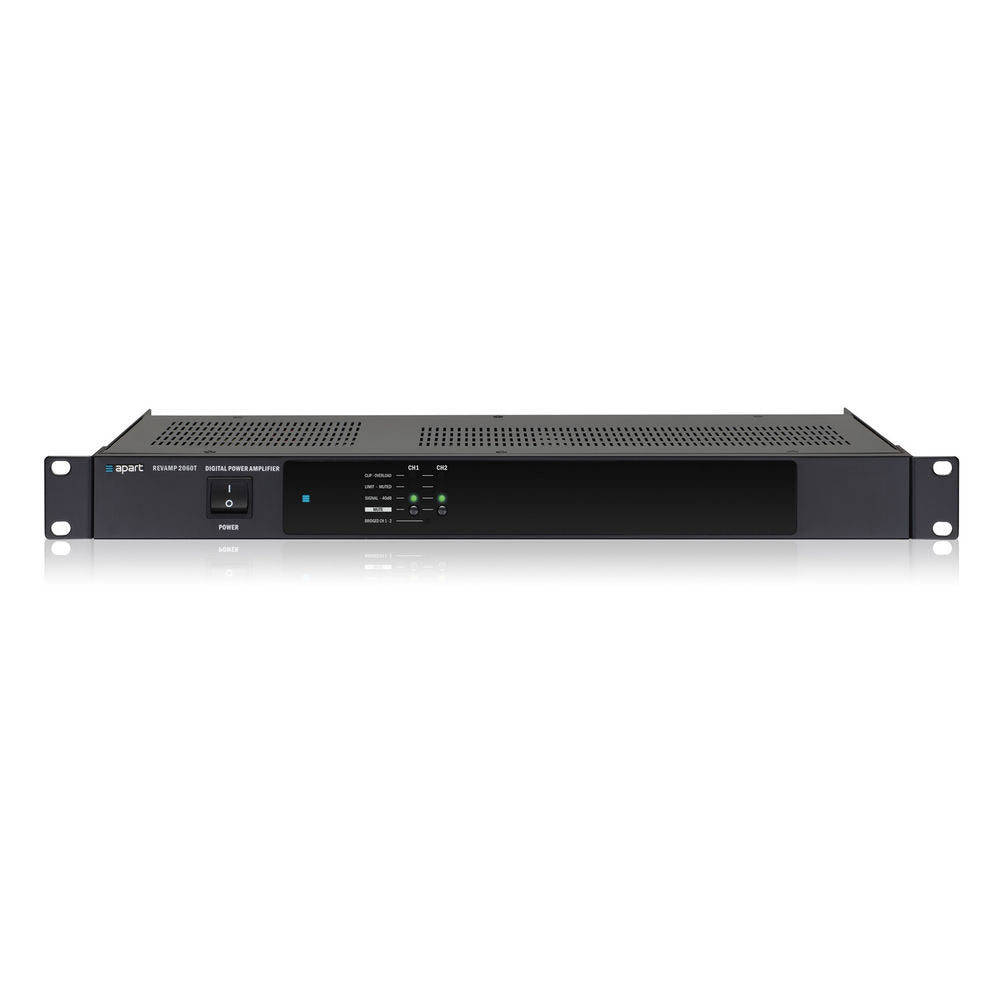

Biamp REVAMP2060T Professional 2-Channel Class-D 100V Power Amplifier
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description
The versatile REVAMP2060T is a professional 2-channel digital power amplifier with 2 x 60 watts output power @ 100 volts or @ 4 ohms, that can easily be bridged into a powerful 120 watts @ 100 volts or 8 ohms single amplifier. This Class-D amplifier has a galvanic separated toroidal output transformer built in to avert external influences and disturbances. A fast installation tool on the rear is the clip LED indicator that can be used during the configuration of the input gain. The convection cooled REVAMP2060T has no fan inside which means that the amplifier works silently and stays dust-free. This maintenance-free feature together with the ease of installation via multiple input and link connection options makes the REVAMP2060T the preferred installer’s choice. The slim 1U design without front control makes the REVAMP2060T a unique all-round amplifier unlike any other in the market.
| Dynamic output power 4 ohms watts | 2 x 60 |
| Dynamic output power 8 ohms watts | 2 x 30 |
| Power supply | 115 - 230 VAC |
| Output power RMS bridged 8 ohms watts | 120 |
| Output power RMS 70 volts watts | 2 x 60 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Output channels | 2 |
| Line input unbalanced | 2 |
| Channel separation | > 65 db @ 1kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convectional |
| Depth (build in) in. | 9.06 |
| Height- rack units (1U=1.73 in) U | Yes |
| RMS output power 4 ohms watts | 2 x 60 |
| RMS output power 8 ohms watts | 2 x 30 |
| Dynamic output power bridged 8 ohms watts | 120 |
| Power consumption (max) watts | 175 |
| Output power RMS bridged 70 volts watts | 120 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output voltage tappings | 100 - 70 - 50 - 35 volts - 4 ohms |
| Line input balanced | 2 |
| Frequency response (in Hz) | 50 - 20 k |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Net weight product (lb.) | 12.57 |
The versatile REVAMP2060T is a professional 2-channel digital power amplifier with 2 x 60 watts output power @ 100 volts or @ 4 ohms, that can easily be bridged into a powerful 120 watts @ 100 volts or 8 ohms single amplifier. This Class-D amplifier has a galvanic separated toroidal output transformer built in to avert external influences and disturbances. A fast installation tool on the rear is the clip LED indicator that can be used during the configuration of the input gain. The convection cooled REVAMP2060T has no fan inside which means that the amplifier works silently and stays dust-free. This maintenance-free feature together with the ease of installation via multiple input and link connection options makes the REVAMP2060T the preferred installer’s choice. The slim 1U design without front control makes the REVAMP2060T a unique all-round amplifier unlike any other in the market.
| Dynamic output power 4 ohms watts | 2 x 60 |
| Dynamic output power 8 ohms watts | 2 x 30 |
| Power supply | 115 - 230 VAC |
| Output power RMS bridged 8 ohms watts | 120 |
| Output power RMS 70 volts watts | 2 x 60 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Output channels | 2 |
| Line input unbalanced | 2 |
| Channel separation | > 65 db @ 1kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convectional |
| Depth (build in) in. | 9.06 |
| Height- rack units (1U=1.73 in) U | Yes |
| RMS output power 4 ohms watts | 2 x 60 |
| RMS output power 8 ohms watts | 2 x 30 |
| Dynamic output power bridged 8 ohms watts | 120 |
| Power consumption (max) watts | 175 |
| Output power RMS bridged 70 volts watts | 120 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output voltage tappings | 100 - 70 - 50 - 35 volts - 4 ohms |
| Line input balanced | 2 |
| Frequency response (in Hz) | 50 - 20 k |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Net weight product (lb.) | 12.57 |
