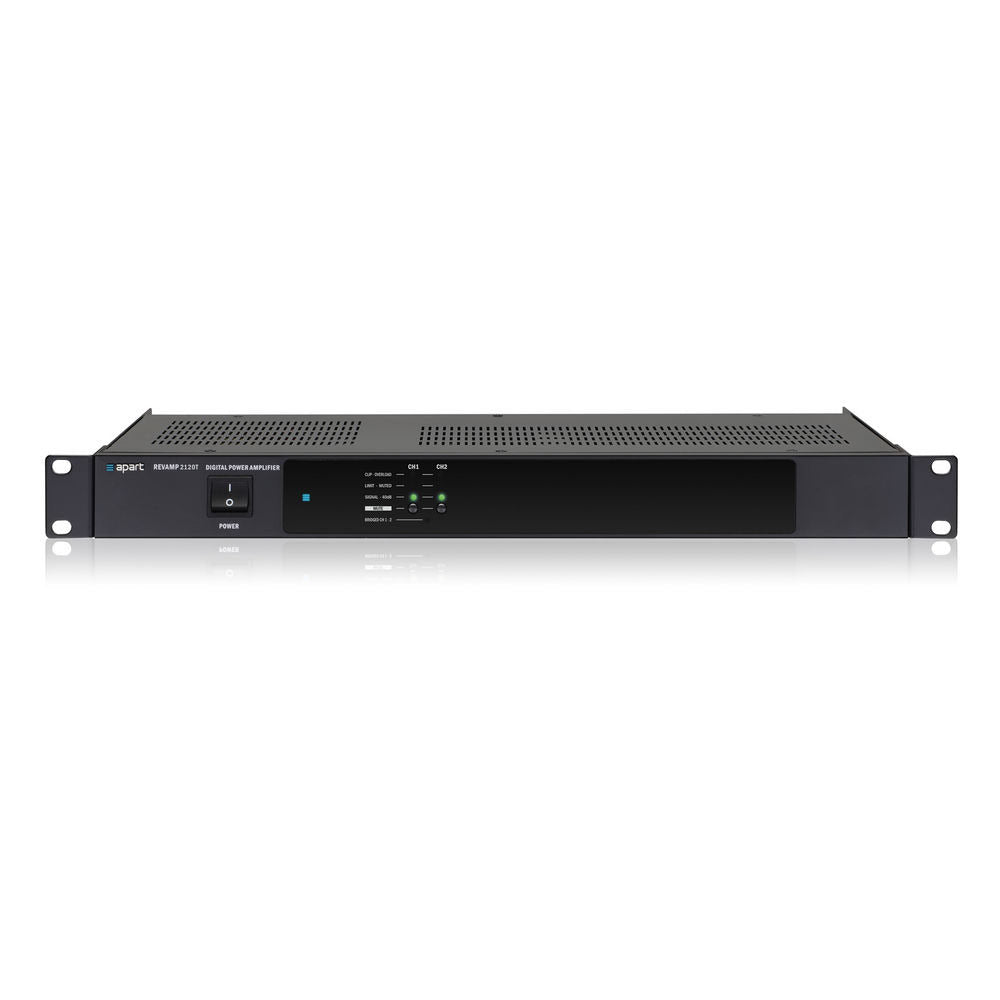

Biamp REVAMP2120T Professional 2-Channel Class-D 100V Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Immaculate sound performance, extremely reliable, and maintenance-free is how we would describe our latest REVAMP2120T. This 2-channel digital power amplifier provides 2 x 120 watts output power @ 100 volts or @ 4 ohms, that can easily be bridged into a powerful 240 watts @ 100 volts or 8-ohm single amplifier. The REVAMP2120T is a convection cooled class-D amplifier without built-in fans which means that the amplifier is noiseless and dust-free. The ergonomic and efficient 1U design has a galvanic separated toroidal output transformer built in to avert external influences and disturbances. During the configuration of the input gain the rear clip LED indicator can be used for a fast and easy installation. The multiple inputs and link connectors make the REVAMP2120T a versatile and installer friendly amplifier superior to any other in the fixed install market.
| Dynamic output power 4 ohms watts | 2 x 120 |
| Dynamic output power 8 ohms watts | 2 x 60 |
| Power supply | 115 - 230 VAC |
| Output power RMS bridged 8 ohms watts | 240 |
| Output power RMS 70 volts watts | 2 x 120 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Output channels | 2 |
| Line input unbalanced | 2 |
| Channel separation | > 65 dB @ 1 kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convectional |
| Depth (build in) in. | 9.06 |
| Height in. | 1.73 |
| Net weight product (lb.) | 13.45 |
| RMS output power 4 ohms watts | 2 x 120 |
| RMS output power 8 ohms watts | 2 x 60 |
| Dynamic output power bridged 8 ohms watts | 240 |
| Power consumption (max) watts | 300 |
| Output power RMS bridged 70 volts watts | 240 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output voltage tappings | 100 -70 - 50 - 35 watts - 4 ohms |
| Line input balanced | 2 |
| Frequency response (in Hz) | 50 - 20 k |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Height- rack units (1U=1.73 in) U | Yes |
Immaculate sound performance, extremely reliable, and maintenance-free is how we would describe our latest REVAMP2120T. This 2-channel digital power amplifier provides 2 x 120 watts output power @ 100 volts or @ 4 ohms, that can easily be bridged into a powerful 240 watts @ 100 volts or 8-ohm single amplifier. The REVAMP2120T is a convection cooled class-D amplifier without built-in fans which means that the amplifier is noiseless and dust-free. The ergonomic and efficient 1U design has a galvanic separated toroidal output transformer built in to avert external influences and disturbances. During the configuration of the input gain the rear clip LED indicator can be used for a fast and easy installation. The multiple inputs and link connectors make the REVAMP2120T a versatile and installer friendly amplifier superior to any other in the fixed install market.
| Dynamic output power 4 ohms watts | 2 x 120 |
| Dynamic output power 8 ohms watts | 2 x 60 |
| Power supply | 115 - 230 VAC |
| Output power RMS bridged 8 ohms watts | 240 |
| Output power RMS 70 volts watts | 2 x 120 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Output channels | 2 |
| Line input unbalanced | 2 |
| Channel separation | > 65 dB @ 1 kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convectional |
| Depth (build in) in. | 9.06 |
| Height in. | 1.73 |
| Net weight product (lb.) | 13.45 |
| RMS output power 4 ohms watts | 2 x 120 |
| RMS output power 8 ohms watts | 2 x 60 |
| Dynamic output power bridged 8 ohms watts | 240 |
| Power consumption (max) watts | 300 |
| Output power RMS bridged 70 volts watts | 240 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output voltage tappings | 100 -70 - 50 - 35 watts - 4 ohms |
| Line input balanced | 2 |
| Frequency response (in Hz) | 50 - 20 k |
| Applicable in 70V | Yes |
| Applicable low impedance | Yes |
| 70 volt | Yes |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Height- rack units (1U=1.73 in) U | Yes |
