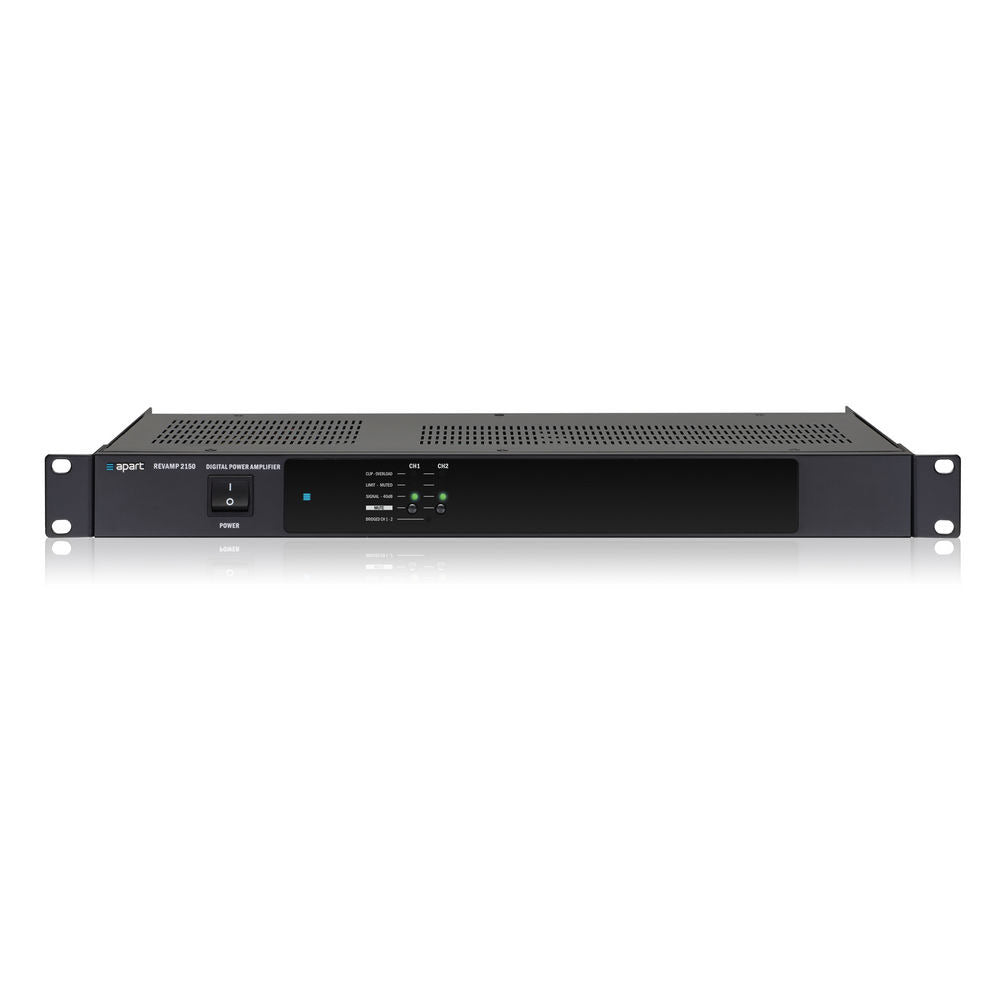

Biamp REVAMP2150 Professional 2-Channel Class-D Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The all-purpose REVAMP2150 is a professional 2-channel digital power amplifier with 2 x 165 watts dynamic output power @ 4 ohms, that can easily be bridged into a powerful 330 watts @ 8 ohms single amplifier. This class-D amplifier is convection cooled without built-in fans which means that the amplifier is noiseless and dust-free. The unit has multiple speaker and amp protection circuits built inside for DC protect, over current protect, over temperature protect and protection against input overload. During the configuration of the input gain, the rear clip LED indicator is very useful and handy for a fast and easy installation. This amplifier offers versatile connectivity due to balanced and unbalanced inputs on euroblock or cinch pass-through outputs on cinch and loudspeaker outputs on euroblock. Housed in a straightforward 1U slim and lightweight design without front control, the REVAMP2150 is an amplifier unlike any other in the small and mid-sized fixed install audio market.
| Dynamic output power 4 ohms watts | 2 x 165 |
| Dynamic output power 8 ohms watts | 2 x 95 |
| Power supply | 115 - 230 VAC |
| Output power RMS bridged 8 ohms watts | 300 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Line input balanced | 2 |
| Frequency response (in Hz) | 20 - 22 k |
| Applicable in 70V | No |
| Applicable low impedance | Yes |
| 70 volt | 0 |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Height- rack units (1U=1.73 in) U | Yes |
| RMS output power 4 ohms watts | 2 x 150 |
| RMS output power 8 ohms watts | 2 x 80 |
| Dynamic output power bridged 8 ohms watts | 330 |
| Power consumption (max) watts | 400 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output channels | 2 |
| Line input unbalanced | 2 |
| Channel separation | > 70 dB @ 1 kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 9.06 |
| Height in. | 1.73 |
| Net weight product (lb.) | 11.24 |
The all-purpose REVAMP2150 is a professional 2-channel digital power amplifier with 2 x 165 watts dynamic output power @ 4 ohms, that can easily be bridged into a powerful 330 watts @ 8 ohms single amplifier. This class-D amplifier is convection cooled without built-in fans which means that the amplifier is noiseless and dust-free. The unit has multiple speaker and amp protection circuits built inside for DC protect, over current protect, over temperature protect and protection against input overload. During the configuration of the input gain, the rear clip LED indicator is very useful and handy for a fast and easy installation. This amplifier offers versatile connectivity due to balanced and unbalanced inputs on euroblock or cinch pass-through outputs on cinch and loudspeaker outputs on euroblock. Housed in a straightforward 1U slim and lightweight design without front control, the REVAMP2150 is an amplifier unlike any other in the small and mid-sized fixed install audio market.
| Dynamic output power 4 ohms watts | 2 x 165 |
| Dynamic output power 8 ohms watts | 2 x 95 |
| Power supply | 115 - 230 VAC |
| Output power RMS bridged 8 ohms watts | 300 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Line input balanced | 2 |
| Frequency response (in Hz) | 20 - 22 k |
| Applicable in 70V | No |
| Applicable low impedance | Yes |
| 70 volt | 0 |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Height- rack units (1U=1.73 in) U | Yes |
| RMS output power 4 ohms watts | 2 x 150 |
| RMS output power 8 ohms watts | 2 x 80 |
| Dynamic output power bridged 8 ohms watts | 330 |
| Power consumption (max) watts | 400 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output channels | 2 |
| Line input unbalanced | 2 |
| Channel separation | > 70 dB @ 1 kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 9.06 |
| Height in. | 1.73 |
| Net weight product (lb.) | 11.24 |
