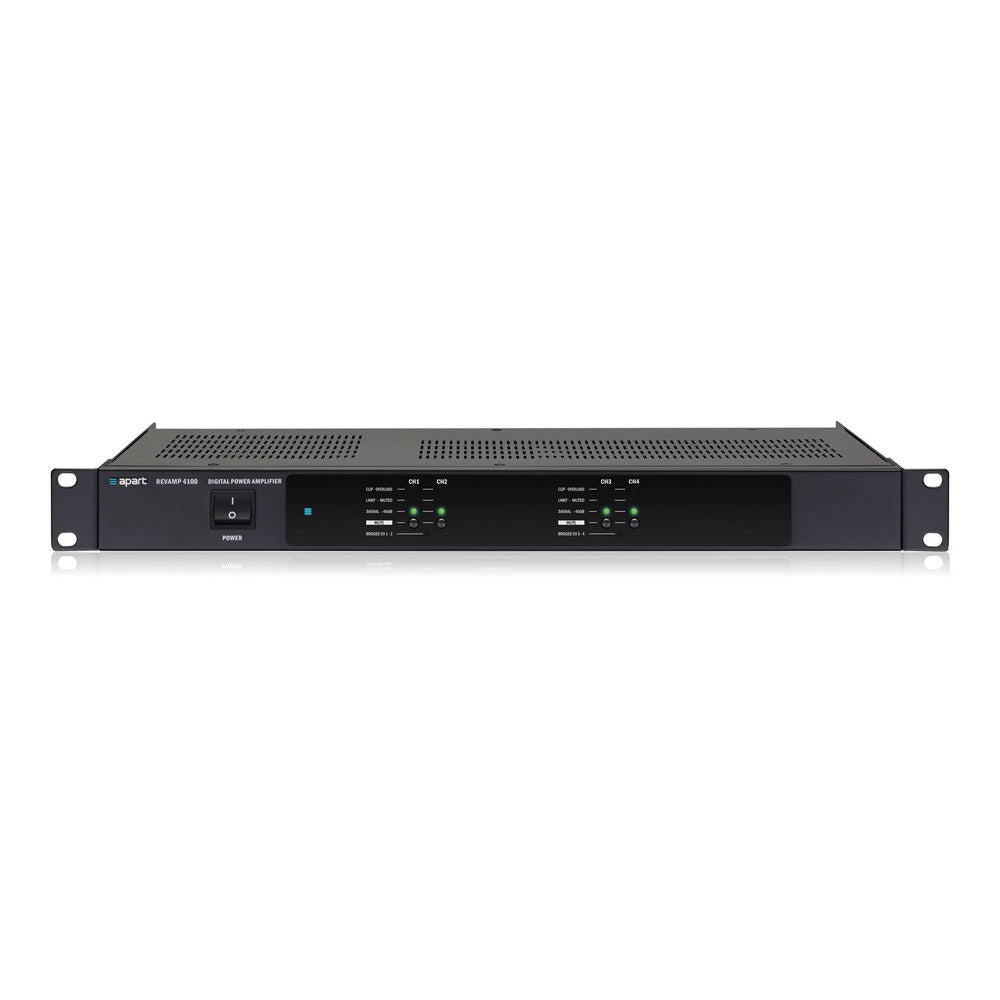

Biamp REVAMP4100 Professional 4-Channel Class-D Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The REVAMP4100 is a professional digital 4-channel amplifier with high power Class-D power amplifier modules inside. The unit has extended speaker and amp protection circuits for DC protect, over current protect, over temperature protect and protection against input overload. The REVAMP4100 amplifier has 4 individual amplifier channels but can be bridged into 2 stereo channels.
| Dynamic output power 4 ohms watts | 4 x 110 |
| Dynamic output power 8 ohms watts | 4 x 55 |
| Power supply | 100 - 254 VAC |
| Output power RMS bridged 8 ohms watts | 2 x 200 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Line input balanced | 4 |
| Frequency response (in Hz) | 20 - 22 k |
| Applicable in 70V | No |
| Applicable low impedance | Yes |
| 70 volt | 0 |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Height- rack units (1U=1.73 in) U | Yes |
| RMS output power 4 ohms watts | 4 x 100 |
| RMS output power 8 ohms watts | 4 x 50 |
| Dynamic output power bridged 8 ohms watts | 2 x 225 |
| Power consumption (max) watts | 500 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output channels | 4 |
| Line input unbalanced | 4 |
| Channel separation | > 65 dB @ 1 kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 9.06 |
| Height in. | 1.73 |
| Net weight product (lb.) | 7.72 |
The REVAMP4100 is a professional digital 4-channel amplifier with high power Class-D power amplifier modules inside. The unit has extended speaker and amp protection circuits for DC protect, over current protect, over temperature protect and protection against input overload. The REVAMP4100 amplifier has 4 individual amplifier channels but can be bridged into 2 stereo channels.
| Dynamic output power 4 ohms watts | 4 x 110 |
| Dynamic output power 8 ohms watts | 4 x 55 |
| Power supply | 100 - 254 VAC |
| Output power RMS bridged 8 ohms watts | 2 x 200 |
| Minimum impedance load per channel ohms | 4 |
| Power supply technology | Switching mode power supply |
| Line input balanced | 4 |
| Frequency response (in Hz) | 20 - 22 k |
| Applicable in 70V | No |
| Applicable low impedance | Yes |
| 70 volt | 0 |
| 19" rack mounting | Yes |
| Depth (incl front) in. | 9.41 |
| Height- rack units (1U=1.73 in) U | Yes |
| RMS output power 4 ohms watts | 4 x 100 |
| RMS output power 8 ohms watts | 4 x 50 |
| Dynamic output power bridged 8 ohms watts | 2 x 225 |
| Power consumption (max) watts | 500 |
| Minimum impedance load bridged per channel ohms | 8 |
| Output channels | 4 |
| Line input unbalanced | 4 |
| Channel separation | > 65 dB @ 1 kHz |
| Power amp topology | Class-D |
| Low impedance | Yes |
| Cooling system | Convection |
| Depth (build in) in. | 9.06 |
| Height in. | 1.73 |
| Net weight product (lb.) | 7.72 |
