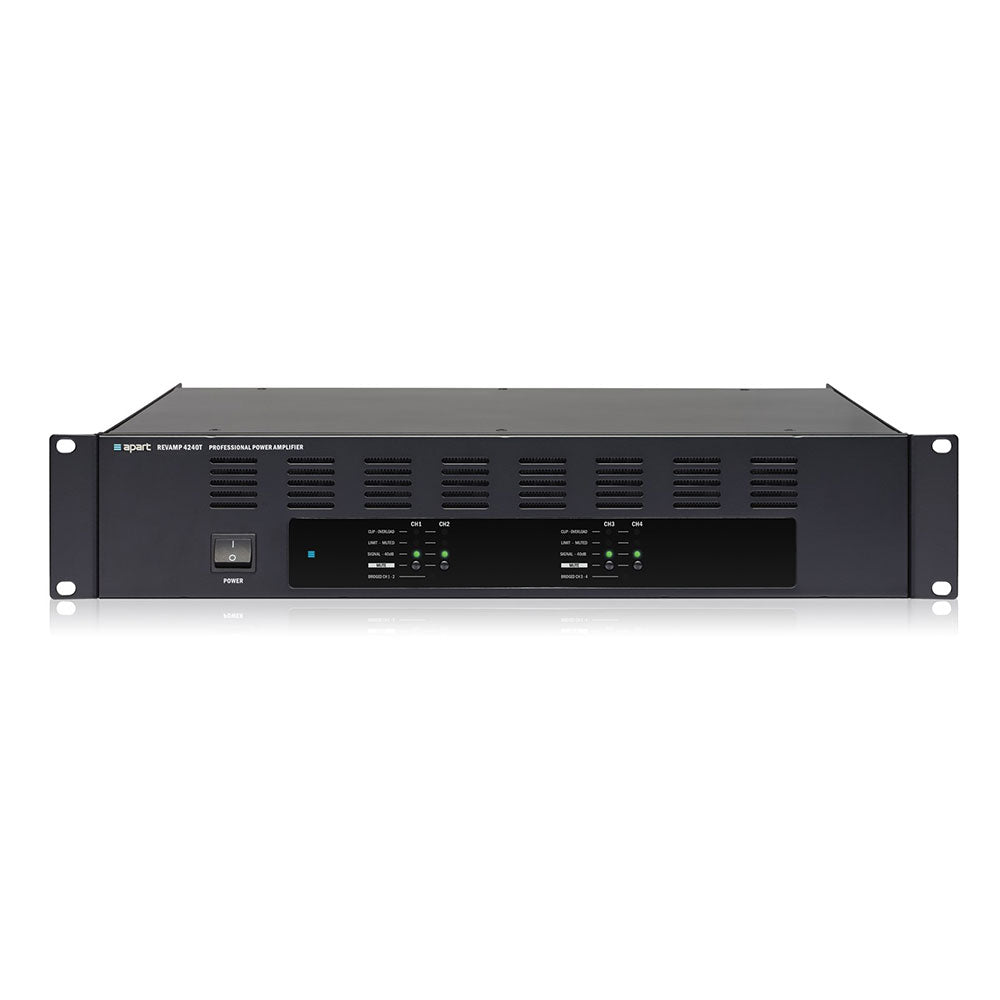

Biamp REVAMP4240T - 4-Channel Installation Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
REVAMP4240T is a professional 4-channel digital power amplifier with 4 x 240-watt output power @ 100 volt, but the unit is also bridgeable to 2 x 480 watts @ 100 volt. The unit incorporates a high efficiency SMPS power supply and outputs with efficient Class D output topology.
REVAMP4240T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to your needs. The input stage also features a built-in 250 Hz HP-filter to optimize the system for use on horn speakers.
| dynamic output power 4 ohms in watts | 4 x 240 |
| dynamic output power 8 ohms in watts | 4 x 120 |
| dynamic output power bridged 8 ohms in watts | 2 x 480 |
| output power RMS 100 volts in watts | 4 x 240 |
| minimum impedance load per channel in ohms | 4 |
| power consumption (max) in watts | 1050 |
| height- rack units (1U=44 mm) in U | 2 |
| depth (incl front) in mm | 338 |
| power supply technology | 2 x switching mode power supply |
| output channels | 4 |
| line input unbalanced | 4 |
| power amp topology | class-D |
| cooling system | fan |
| applicable low impedance | yes |
| RMS output power 4 ohms in watts | 4 x 240 |
| RMS output power 8 ohms in watts | 4 x 120 |
| output power RMS bridged 8 ohms in watts | 2 x 480 |
| output power RMS bridged 100 volts in watts | 2 x 480 |
| minimum impedance load bridged per channel in ohms | 8 |
| rack mounting | 19" (483 mm wide) |
| depth (build in) in mm | 330 |
| power supply | 115 - 230 VAC |
| output voltage tappings | 100 - 70 - 50 - 35 volts - 4 ohms |
| line input balanced | 4 |
| channel separation | > 68 dB @ 1 kHz |
| frequency response (in Hz) | 50 - 20 k |
| applicable in 100V | yes |
| Net weight product (kg) | 16.70 |
REVAMP4240T is a professional 4-channel digital power amplifier with 4 x 240-watt output power @ 100 volt, but the unit is also bridgeable to 2 x 480 watts @ 100 volt. The unit incorporates a high efficiency SMPS power supply and outputs with efficient Class D output topology.
REVAMP4240T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to your needs. The input stage also features a built-in 250 Hz HP-filter to optimize the system for use on horn speakers.
| dynamic output power 4 ohms in watts | 4 x 240 |
| dynamic output power 8 ohms in watts | 4 x 120 |
| dynamic output power bridged 8 ohms in watts | 2 x 480 |
| output power RMS 100 volts in watts | 4 x 240 |
| minimum impedance load per channel in ohms | 4 |
| power consumption (max) in watts | 1050 |
| height- rack units (1U=44 mm) in U | 2 |
| depth (incl front) in mm | 338 |
| power supply technology | 2 x switching mode power supply |
| output channels | 4 |
| line input unbalanced | 4 |
| power amp topology | class-D |
| cooling system | fan |
| applicable low impedance | yes |
| RMS output power 4 ohms in watts | 4 x 240 |
| RMS output power 8 ohms in watts | 4 x 120 |
| output power RMS bridged 8 ohms in watts | 2 x 480 |
| output power RMS bridged 100 volts in watts | 2 x 480 |
| minimum impedance load bridged per channel in ohms | 8 |
| rack mounting | 19" (483 mm wide) |
| depth (build in) in mm | 330 |
| power supply | 115 - 230 VAC |
| output voltage tappings | 100 - 70 - 50 - 35 volts - 4 ohms |
| line input balanced | 4 |
| channel separation | > 68 dB @ 1 kHz |
| frequency response (in Hz) | 50 - 20 k |
| applicable in 100V | yes |
| Net weight product (kg) | 16.70 |
