Blackmagic Design ATEM Studio Converter - Camera Monitor System Hub
Dale #:
BLMG-SWRCONVRCK2Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Our Price: $2,035.00
Shipping Charges Apply
Suggested Accessories
Description
ATEM Studio Converter is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback! Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed.
Get your camera close to the action using low cost optical fiber!
Now you can position your cameras a long distance away from your switcher and get closer to the action with ATEM Camera and Studio Converters. ATEM Camera Converter is a super tough optical fiber converter with talkback, tally, microphone inputs and a built in long life battery. Using low cost optical fiber you can connect to your cameras up to 28 miles away and even at those great distances you still get full bi-directional video, audio, talkback and tally signals!
ATEM Converters are the perfect solution for live music and sporting events where you need to place cameras in remote locations such as on race tracks or near to a stage, where there is a huge distance between the live action and your switcher. Connect up to 4 ATEM Camera Converters to each ATEM Studio Converter and get multiple camera talkback, so all camera operators can communicate with the switcher operator using talkback that is embedded into channels 15 and 16 of the optical fiber SDI connection.

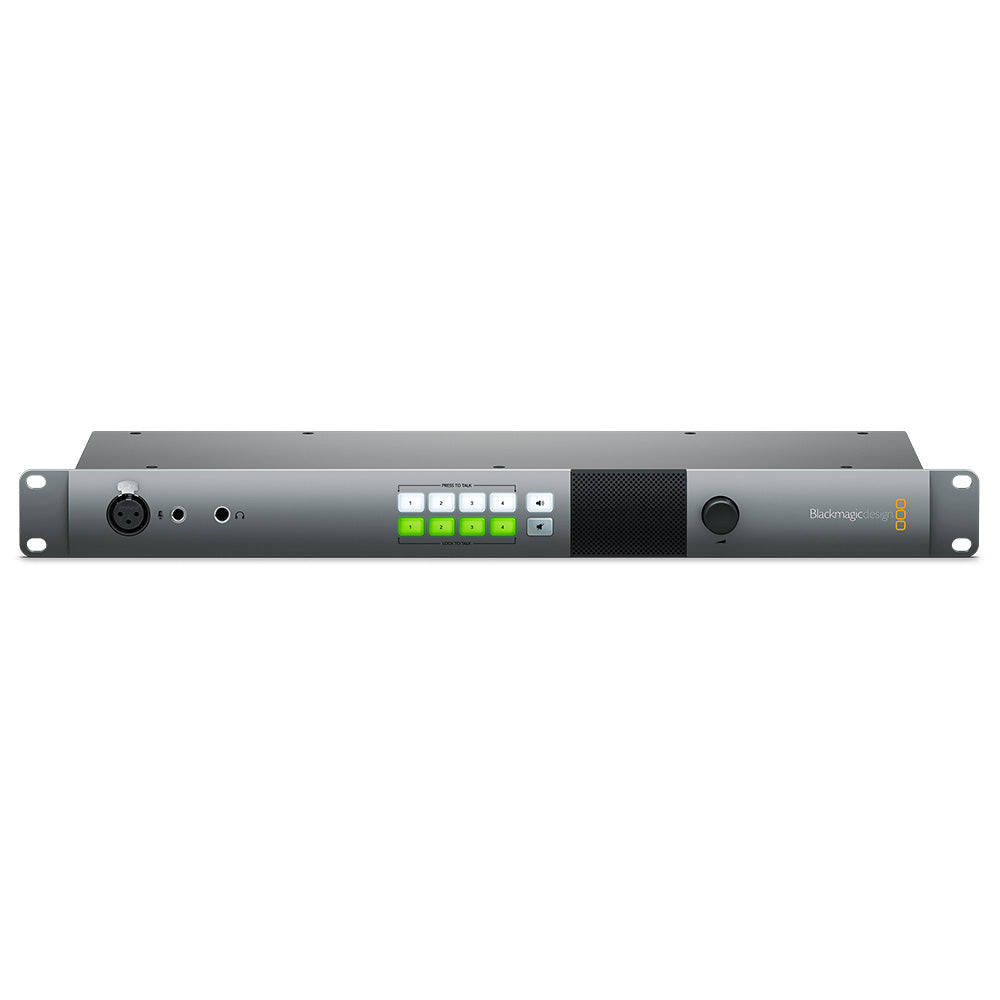

During busy live production it's vital to be able to talk to your camera operators. ATEM Camera and Studio Converters take advantage of the 16 channel SDI audio standard and embed the talkback into rarely used channels 15 and 16. ATEM Camera Converter uses standard PC or iPhone type headsets while the ATEM Studio Converter uses more robust aviation headsets that are available in hundreds of different styles! ATEM Studio Converter also features a built in microphone input and speaker so you don't need to use a headset.
More +
Product Specs

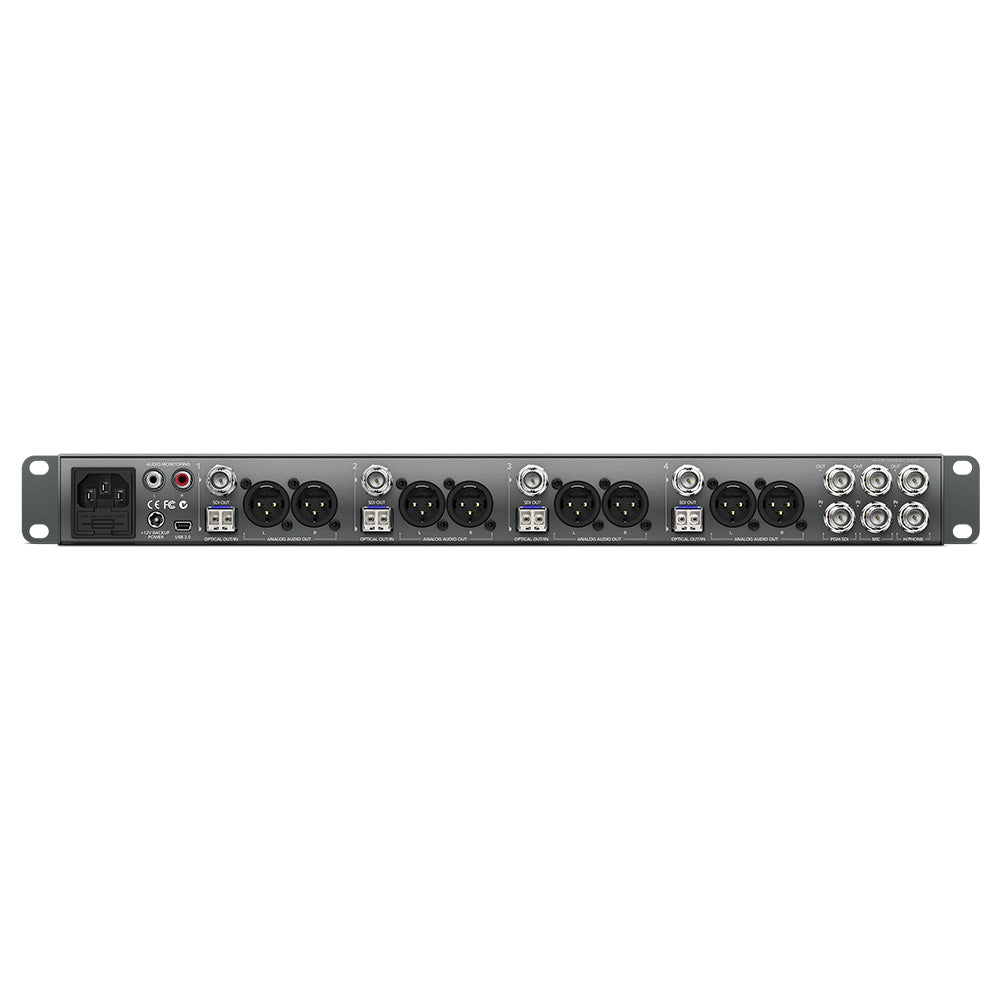

| Connections | |
| SDI Video Input | 1 x 10 bit SD/HD switchable program input from switcher, including tally information. |
| SDI Video Output | 4 x 10 bit SD/HD switchable camera outputs. 1 x 10 bit SD/HD switchable program loop thru output connects to another ATEM Studio Switcher. |
| Talkback Audio | Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector. |
| Analog Audio | 1 x stereo RCA monitoring output. |
| AES/EBU Audio Input | 1 x combined headphone input. 1 x combined microphone input. Combined inputs for connecting to other ATEM Studio Converters. |
| AES/EBU Audio Output | 1 x combined headphone output. 1 x combined microphone output. Combined outputs for connecting to other ATEM Studio Converters. |
| Balanced XLR Audio Output | 4 x camera stereo analog audio outputs. |
| Optical Fiber Video Input | 4 x single mode SD/HD switchable camera inputs with LC connector. |
| Optical Fiber Video Output | 4 x single mode SD/HD switchable camera outputs with LC connector. |
| Optical Fiber Audio Input | 1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio. |
| Optical Fiber Audio Output | 1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio. |
| Computer Interface | 1 x mini-B type USB 2.0 connector for firmware updates. |
| Standards | |
| SD Format Support | 525i29.97 NTSC, 625i25 PAL |
| HD Format Support | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Format Support | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Format Support | 2160p24 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M. |
| Audio Sampling | Television standard sample rate of 48Khz, 24 bit A/D conversion. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Multiple Rate support | SDI switches between SD, HD, and UHD. |
| Software Included | Converter Utility for firmware update. |
| Operating Systems | Mac OS X 10.11 El Capitan, macOS Sierra or later. Windows 8.1 or Windows 10. |
| Power Requirements | |
| Power Supply | 110 - 240 V AC input with redundant 12 - 31V DC input. |
| Physical Specifications | |
| Dimensions | 19 in W x 1.73 in H x 6.22 in D |
| Weight | 3.99 lbs |
| Environmental Specifications | Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing |
| What's Included | ATEM Studio Converter SD card with software and manual |
| Warranty | 3 Year Limited Manufacturer's Warranty. |
| Repair Policy | Excluding connectors, cables, cooling fans, fiber optic modules, fuses and keyboards which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. |
