Description
ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter. Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an op... Read MoreOur Price: $2,665.00
Shipping Charges Apply
Suggested Accessories
Description

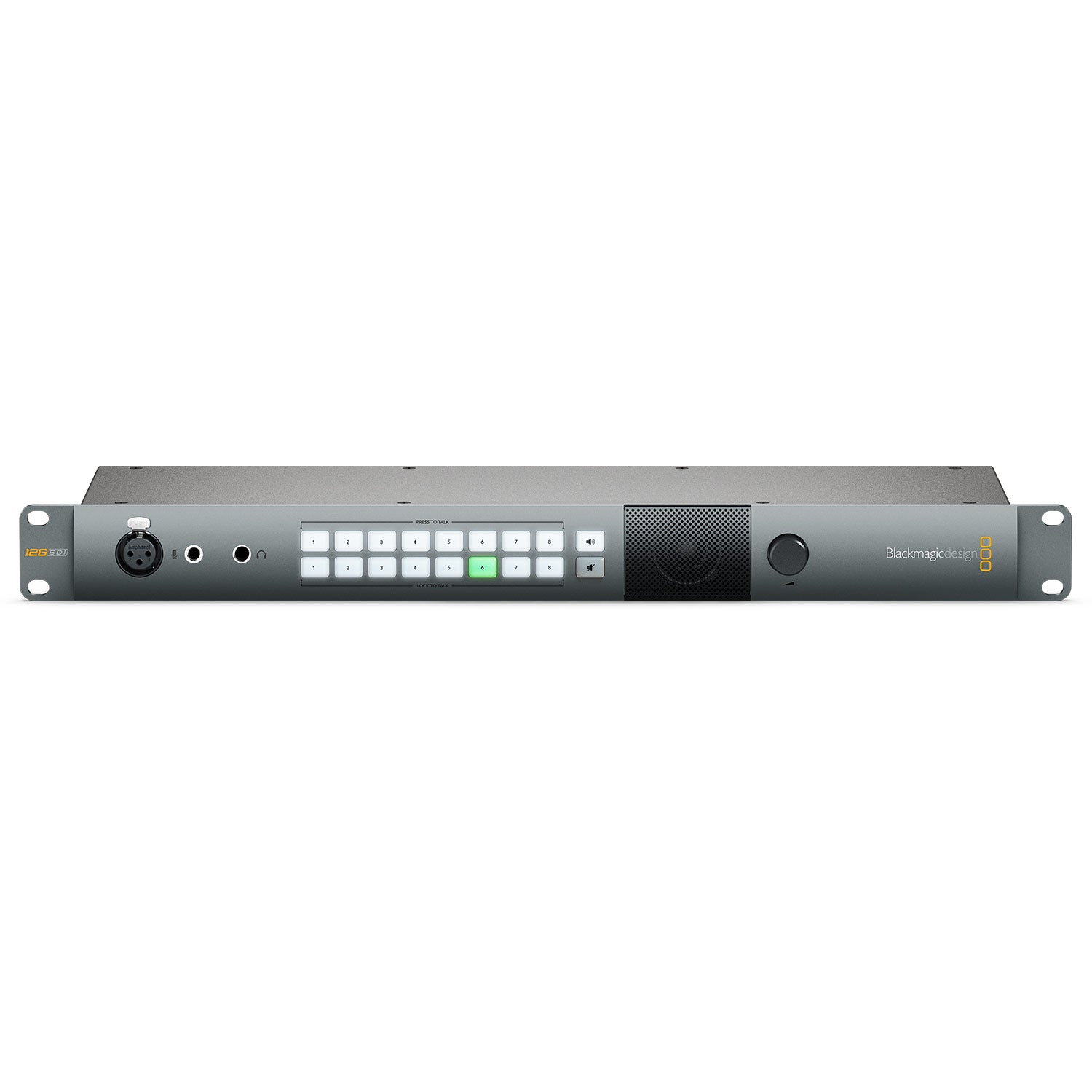

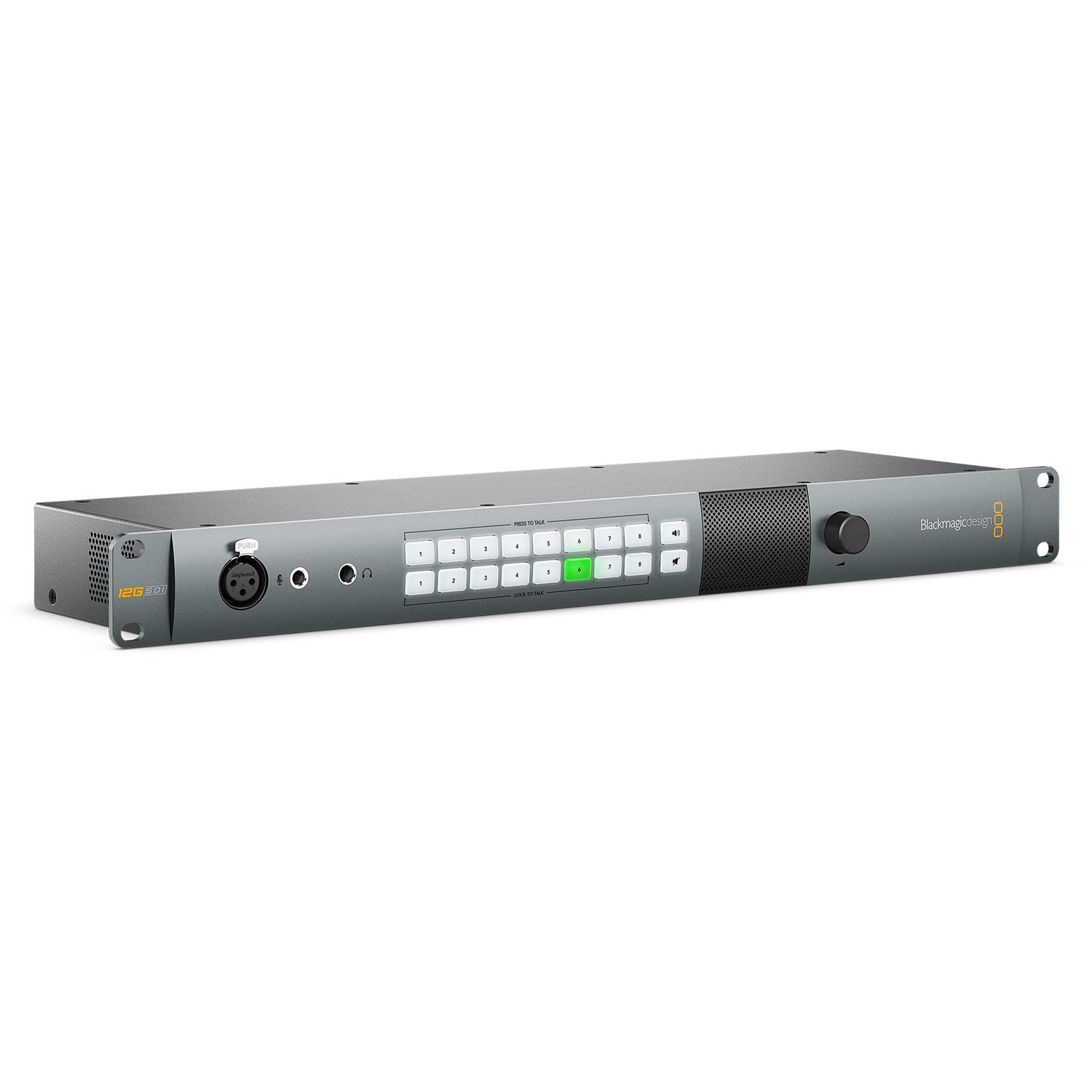

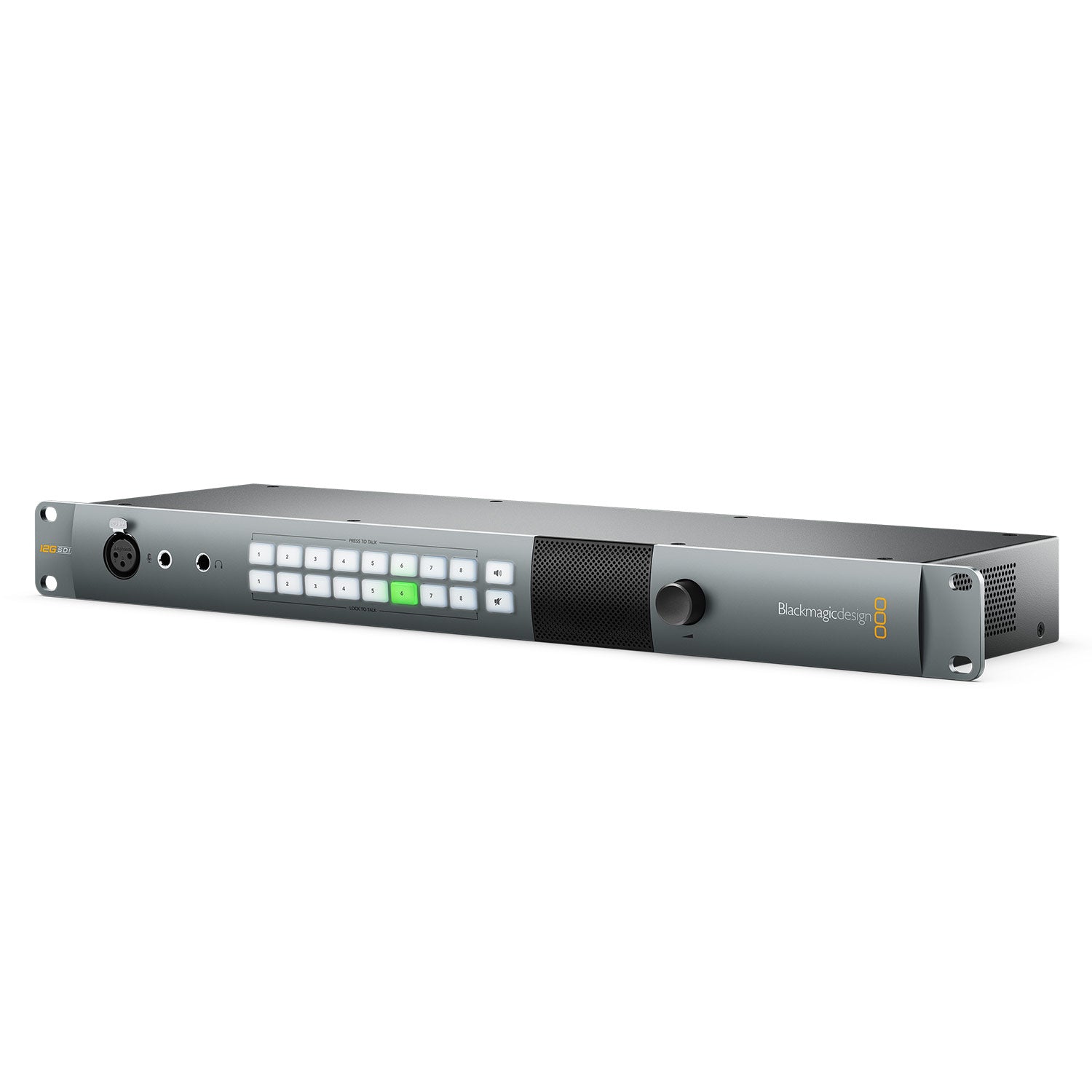

ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter. Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required. Includes push to talk buttons, support for tough and common aviation headsets, loop through for more than 8 camera support, built in speaker, front panel mic input and much more.
Get your camera close to the action using low cost optical fiber!
Now you can position your cameras a long distance away from your switcher and get closer to the action with ATEM Camera and Studio Converters. ATEM Camera Converter is a super tough optical fiber converter with talkback, tally, microphone inputs and a built in long life battery. Using low cost optical fiber you can connect to your cameras up to 28 miles away and even at those great distances you still get full bi-directional video, audio, talkback and tally signals!
ATEM Converters are the perfect solution for live music and sporting events where you need to place cameras in remote locations such as on race tracks or near to a stage, where there is a huge distance between the live action and your switcher. Connect up to 4 ATEM Camera Converters to each ATEM Studio Converter and get multiple camera talkback, so all camera operators can communicate with the switcher operator using talkback that is embedded into channels 15 and 16 of the optical fiber SDI connection.
During busy live production it's vital to be able to talk to your camera operators. ATEM Camera and Studio Converters take advantage of the 16 channel SDI audio standard and embed the talkback into rarely used channels 15 and 16. ATEM Camera Converter uses standard PC or iPhone type headsets while the ATEM Studio Converter uses more robust aviation headsets that are available in hundreds of different styles! ATEM Studio Converter also features a built in microphone input and speaker so you don't need to use a headset.
More +
Product Specs

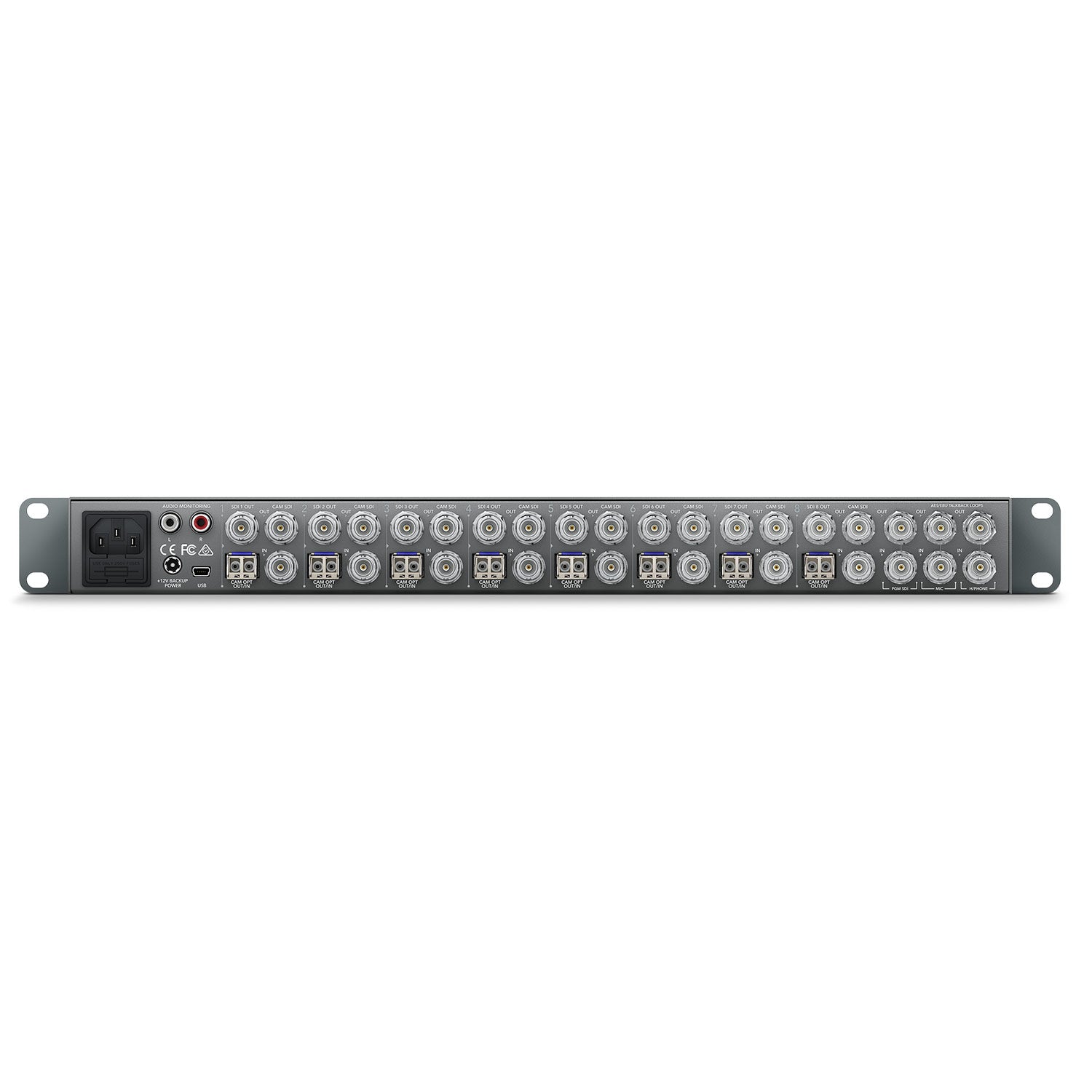

Connections | |
SDI Program Input | 1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio. |
SDI Program Output | 1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K. |
Talkback Audio | Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector. |
Analog Audio | 1 x stereo RCA monitoring output. |
SDI Camera Input | 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio. |
SDI Camera Output | 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio. |
SDI Output | 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio. |
Optical Fiber Video Input (Optional) | 8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector. |
Optical Fiber Video Output (Optional) | 8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector. |
Optical Fiber Audio Input | 8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio. |
Optical Fiber Audio Output | 8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio. |
Computer Interface | 1 x mini-B type USB connector for firmware updates. |
Standards | |
SD Format Support | 525i29.97 NTSC, 625i25 PAL |
HD Format Support | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
2K Format Support | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
Ultra HD Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60 |
4K Format Support | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 60p |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M. |
Audio Sampling | Television standard sample rate of 48Khz, 24-bit A/D conversion. |
Video Sampling | 4:2:2, 4:4:4 |
Color Precision | 10-bit |
Color Space | REC 601, REC 709. |
Multiple Rate Support | SDI switches between SD, HD and Ultra HD 4K. |
Internal Software Upgrade | Via included updater application. |
Operating Systems | Mac OS X 10.11 El Capitan, macOS Sierra or later. Windows 8.1 or Windows 10. |
Power Requirements | |
Power Usage | 60 Watts |
Power Supply | 110 - 240V AC input with redundant 12 - 31V DC input. |
Physical Specifications | |
Dimensions | 19 in W x 1.75 in H x 6.30 in D |
Weight | 5.07 lbs |
Physical Installation | 1 rack unit size. Less than 6 inches deep. |
Environmental Specifications | Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing |
What's Included | ATEM Talkback Converter 4K SD card with software and manual |
Warranty | 3 Year Limited Manufacturer's Warranty. |
Repair policy | Excluding connectors, cables, cooling fans, fiber optic modules, fuses and keyboards which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. |
