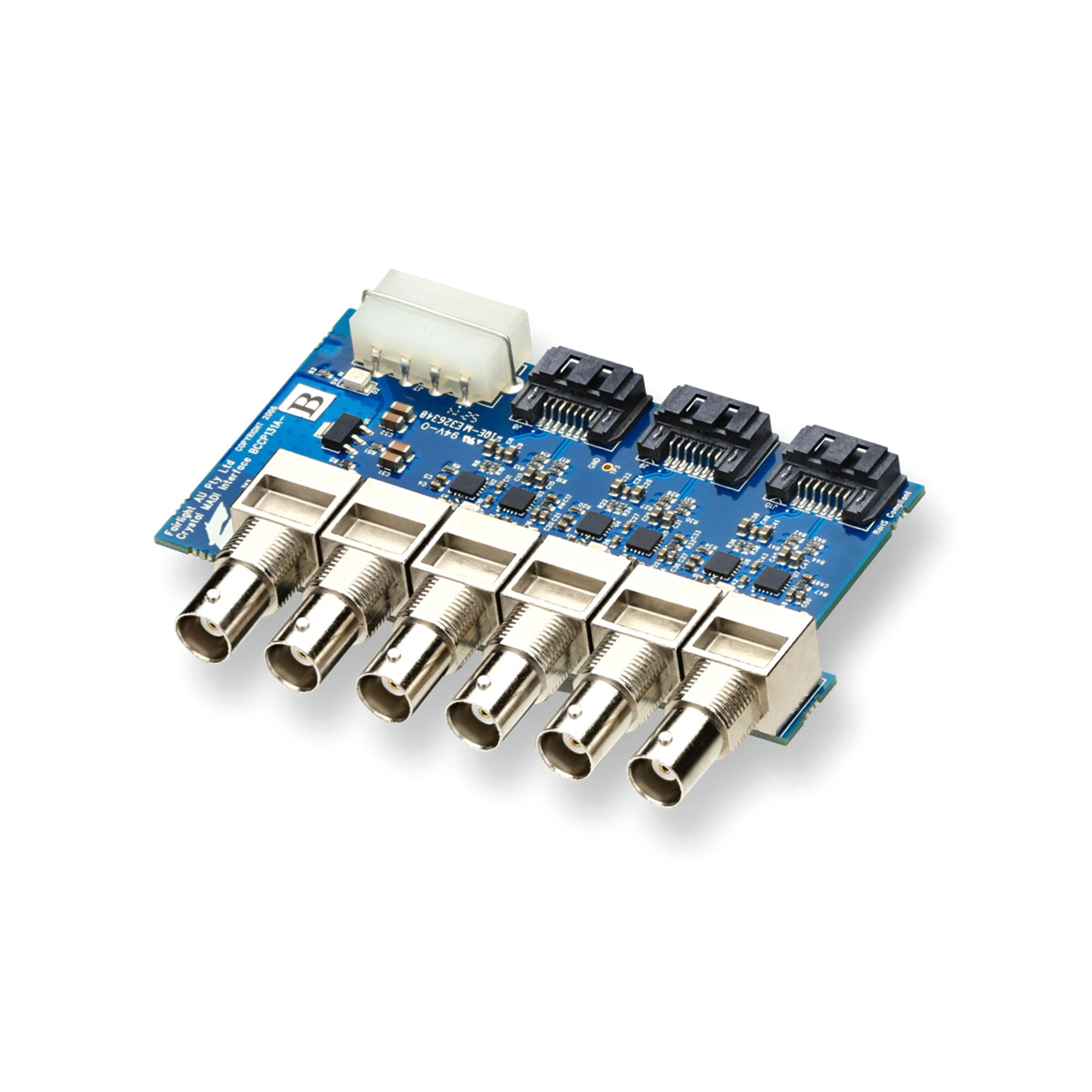

Blackmagic Design Fairlight Audio MADI Upgrade
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Fairlight Audio MADI Upgrade adds three coax MADI input and output connections to the single MADI on the Fairlight Accelerator card. That gives you a total of four MADI inputs and four MADI outputs for 256 inputs and outputs each at 24 bit / 48kHz!
| MADI Inputs | 3 x MADI inputs via 75 ohm BNCs |
| MADI Outputs | 3 x MADI outputs via 75 ohm BNCs |
| Audio Channels | Total of 192 inputs and outputs |
| Bit Depth and Sample Rate | 24 bit / 48kHz |
| PCI Form Factor | Single half length PCIe x4 board |
| Power | 4_pin computer power cable connector. |
| Hardware Requirements | Requires Fairlight Audio Accelerator. |
| PCIe Requirements | Connection to Fairlight Audio Accelerator using three SATA cables. Fairlight Audio MADI Upgrade board requires no additional PCIe bandwidth. |
| Power Usage | 4W |
| Operating Systems | Mac 10.15 Catalina or later. Windows 10, 64-bit. |
| Physical Specifications | PCIe Form Factor 3.07 in D |
| Operating Temperature | 0¡ to 40¡C (32¡ to 104¡F) |
| Storage Temperature | -20¡ to 60¡C (-4¡ to 140¡F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Fairlight Audio MADI Upgrade 3 x 30cm SATA cables. 1 x computer power cable. |
| Warranty | 1 Year Limited Manufacturer's Warranty. |
The Fairlight Audio MADI Upgrade adds three coax MADI input and output connections to the single MADI on the Fairlight Accelerator card. That gives you a total of four MADI inputs and four MADI outputs for 256 inputs and outputs each at 24 bit / 48kHz!
| MADI Inputs | 3 x MADI inputs via 75 ohm BNCs |
| MADI Outputs | 3 x MADI outputs via 75 ohm BNCs |
| Audio Channels | Total of 192 inputs and outputs |
| Bit Depth and Sample Rate | 24 bit / 48kHz |
| PCI Form Factor | Single half length PCIe x4 board |
| Power | 4_pin computer power cable connector. |
| Hardware Requirements | Requires Fairlight Audio Accelerator. |
| PCIe Requirements | Connection to Fairlight Audio Accelerator using three SATA cables. Fairlight Audio MADI Upgrade board requires no additional PCIe bandwidth. |
| Power Usage | 4W |
| Operating Systems | Mac 10.15 Catalina or later. Windows 10, 64-bit. |
| Physical Specifications | PCIe Form Factor 3.07 in D |
| Operating Temperature | 0¡ to 40¡C (32¡ to 104¡F) |
| Storage Temperature | -20¡ to 60¡C (-4¡ to 140¡F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Fairlight Audio MADI Upgrade 3 x 30cm SATA cables. 1 x computer power cable. |
| Warranty | 1 Year Limited Manufacturer's Warranty. |
