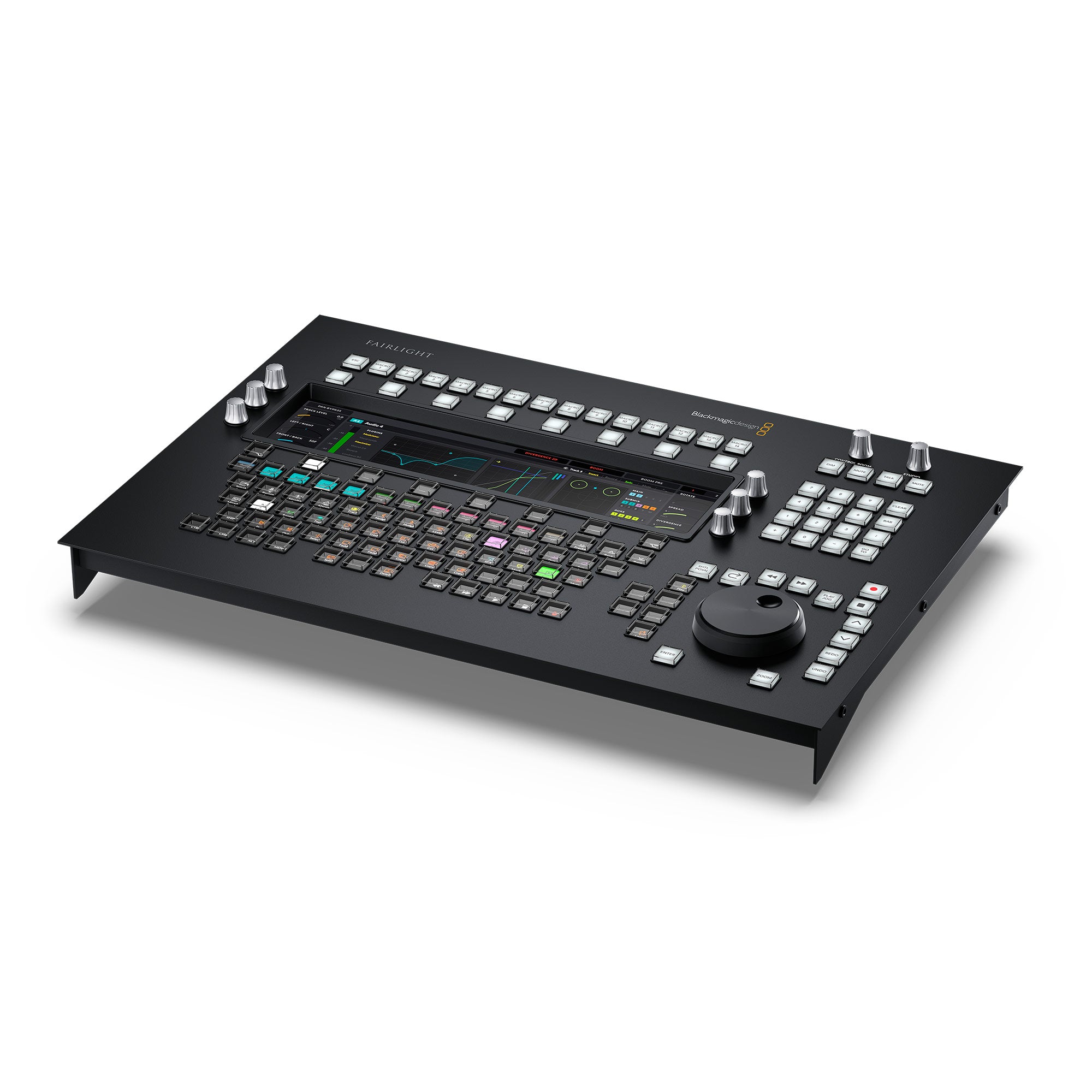

Blackmagic Design Fairlight Console Audio Editor


  • Dale #:

    BLMG-DVRESFAEDTCS
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Fairlight Console Audio Editor lets you use both hands with the search dial and action keys to work quickly without ever taking your hands off the panel. It gives you quick access to virtually every feature in the software and features a graphical custom function keyboard. The keys automatica... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Fairlight Console Audio Editor lets you use both hands with the search dial and action keys to work quickly without ever taking your hands off the panel. It gives you quick access to virtually every feature in the software and features a graphical custom function keyboard. The keys automatically change based on the current task, putting the controls you need right under your fingertips when you need them so you can work faster! There’s also a built in 12 inch LCD screen that displays information based on the current task, macro keys for automating repetitive tasks, transport controls and more. The Fairlight Console Audio Editor can also be purchased and used as a stand alone desktop model.

Integrated LCD
The Fairlight Audio Editor features a large 12 inch high resolution LCD with soft buttons and knobs. It’s an interactive audio editing dashboard with 5 different layouts, giving you a full graphical interface for EQ, dynamics, plug-ins and other tasks. The screen automatically changes to show you the information, tools and controls you need for the current activity. This lets you work quickly because you don’t have to grab the mouse, look up at the computer display and stop what you’re doing! For example, when adjusting EQ, you’ll see the parametric equalizer curve on the display. You can use the knobs to adjust the gain in different frequency ranges and see instant feedback as the curve changes.

EQ Layout
Clip EQ layout gives you total control over the 4-band parametric equalizer parameters for the selected clip. This gives you all the same EQ controls that are available in the inspector in DaVinci Resolve, along with clip EQ preset options.

Standard Mixing
Standard mixing layout displays information for the currently selected track. This includes level, pan, meters, the 6-band parametric track EQ, dynamics and more. The soft buttons and knobs give you quick access to common controls.

Plug-Ins
Displays controls for the first plug-in on the selected track. This screen has a 3 page layout giving you access to plug-in bypass and reset, loading and saving of presets, and for mapping plug-in parameters to any of the six rotary knobs.

Aux Sends
When viewing the aux layout, you’ll see all of the send levels and panning for up to 24 auxiliary channels all at the same time. The soft buttons along the top of the screen let you enable different aux channels for the active tracks.

Monitor Mode
The monitoring mode layout provides visual feedback for the dim and fixed levels, along with control room, loudness and studio meters. It also displays a graphical representation of the speaker configuration for your listening environment.

Custom Function Keyboard
The custom keyboard features easy to read, multi-function self labeling keys with dedicated layouts that cover nearly every function of the Fairlight page. The images on the keys change based on the task you’re performing so you can work quickly!

Programmable Macro Keys
Macro keys can be used to record sequences of keystrokes that you can re-call and use at any time to automate repetitive tasks and speed up your workflow. There are 14 dedicated macro keys along with a mode for displaying thirty macros on the keyboard.

Transport Controls
Navigation keys and the search dial let you quickly move around the timeline, record, search, playback at variable speeds, set locators to jump to a new position and more. They can also be used to zoom, adjust levels, shape fades and trim edits.

More +

Product Specs

Ethernet Ethernet supports 10/100/1000 BaseT.
Updates and Configuration 1 x USB Type‑C for software configuration and software updates.
Software Internal software upgrade via updater application.
Operating Systems Mac 10.15 Catalina or later.
Windows 10, 64-bit.
Settings Control Fairlight Studio and Console setup utility software when connected by USB.
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage 20W max.
Physical Specifications 19.29 in W x 12.99 in D x 2.46 in H
Weight 18 lb
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -20° to 60°C (-4° to 140°F)
Relative Humidity 0% to 90% non-condensing
What's Included Fairlight Console Audio Editor
Warranty 1 Year Limited Manufacturer's Warranty.
