DALE SKU # BLMG-DVRESFAFADCS

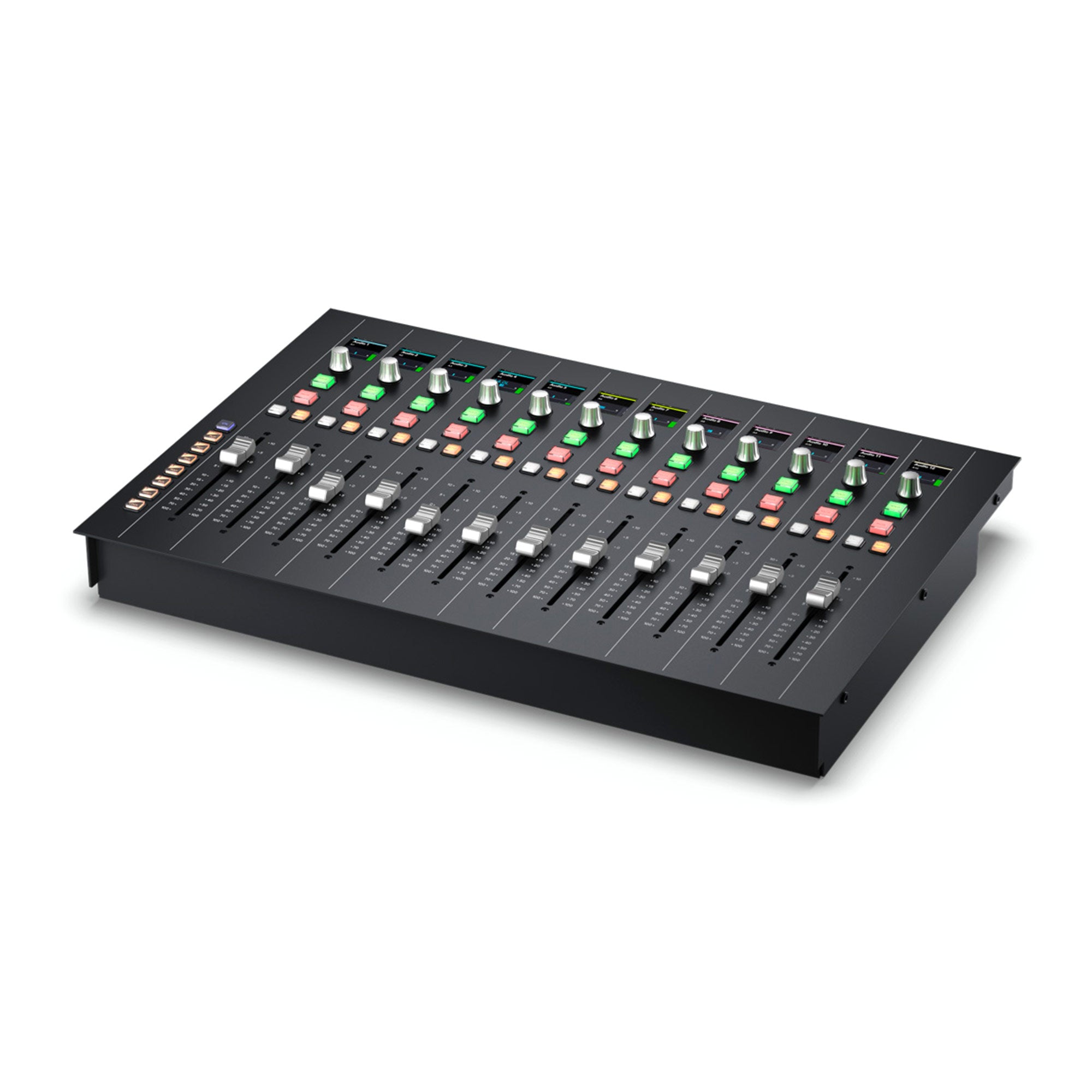

Blackmagic Design Fairlight Console Channel Fader

Sale price$4,595.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Add a fader module with 12 motorized faders, rotary control knobs and illuminated buttons for pan, solo, mute and call.

    Each bank of Fairlight Console Channel Faders features a familiar mixer design with 12 motorized faders per module, rotary control knobs and illuminated buttons. The sculpted, high quality faders are extremely smooth to move and provide the perfect amount of resistance, allowing you to make subtle adjustments. Fairlight Console Channel Fader controls include pan, solo, mute, and call buttons. Each channel strip has an integrated LCD above the channel to display the most important channel information. Fader modules can control up to 144 channels at a time using bank select buttons and you can install multiple fader modules in a 5 bay console. That gives you direct access to more than 500 channels!

    Channel Status Displays
    The integrated high resolution LCD screens located above each fader strip let you see track color, name and number, along with pan status, level meters and more. This information correlates directly with the track headers and mixer in the software.

    Multifunction Pan Knob
    The multifunction pan knob features control tap to reset functionality and can be used for panning or assigned to control other parameters. The pan knob is rotary encoder based, which means it won’t introduce unwanted noise like mechanical knobs.

    Channel Strip Controls
    Each channel strip has dedicated solo and mute buttons to quickly isolate or temporarily turn tracks off. Call buttons can be used to load track parameters, set up fader banks, and spill bus tracks to adjoining faders. Auto buttons enable automation.

    Motorized Faders
    Twelve belt driven 100mm motorized faders offer precision volume control. Bank control buttons switch and control 12 banks of 12 faders plus an additional 12 banks of user defined channels. Assigned faders can also adjust send and record levels.

    Bank Control Buttons
    The six bank and control buttons on the left side of the panel let you quickly switch your faders to work on 12 different sets of sequentially mapped channels. You can also manually map an additional 12 banks of channel faders for each fader panel.

    Ethernet Ethernet supports 10/100/1000 BaseT.
    Updates and Configuration 1 x USB Type_C for software configuration and software updates.
    Software Internal software upgrade via updater application.
    Settings Control Fairlight Studio and Console setup utility software when connected by USB.
    Operating Systems Mac 10.15 Catalina or later.
    Windows 10, 64-bit.
    Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
    Power Usage 20W max.
    Physical Specifications 19.29 in W x 12.99 in D x 2.63 in H
    Weight 14.8 lb
    Operating Temperature 0¡ to 40¡C (32¡ to 104¡F)
    Storage Temperature -20¡ to 60¡C (-4¡ to 140¡F)
    Relative Humidity 0% to 90% non-condensing
    What's Included Fairlight Console Channel Fader
    Warranty 1 Year Limited Manufacturer's Warranty.
