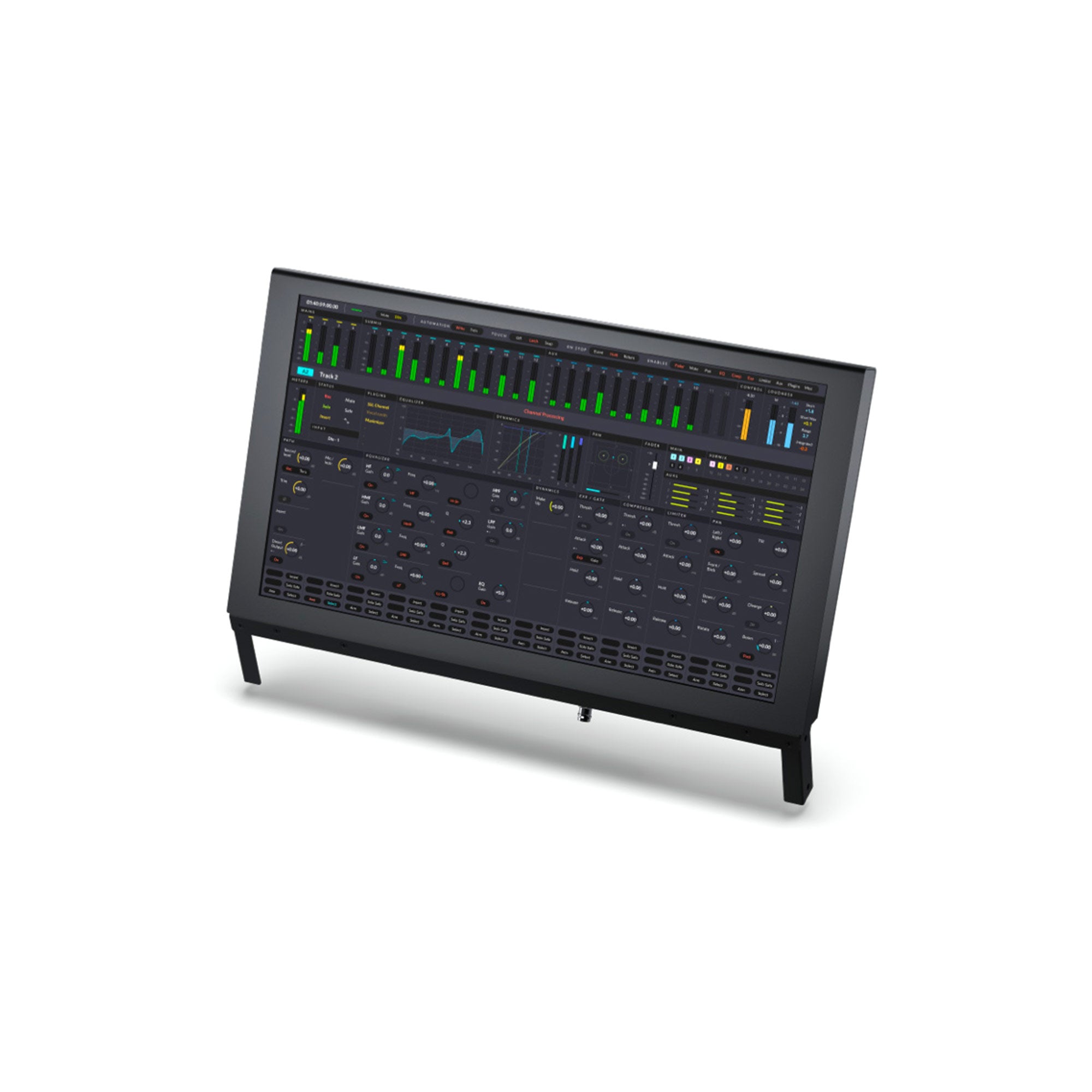

Blackmagic Design Fairlight Console LCD Monitor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
You can add a high resolution computer and display to every bay! Each LCD is its own self contained computer running Blackmagic OS giving you instant graphic feedback for all channels in that module. The LCD features ethernet, HDMI and SDI inputs. It can display channel information, the DaVinci Resolve user interface, plug‑in interfaces, or video previews. Depending on the task, you’ll see individual channel information inline with each fader strip below, all parameters when used in single channel mode, or all controls for master mode. Previewing the video program while mixing and editing allows you to see the talent up close. You get a detailed view of character faces for checking lip sync!
Graphical Channel Control Feedback
When installed above a channel control panel, the LCD is connected via Ethernet. The LCD includes a built in computer running Blackmagic OS to generate realtime graphical feedback for the controls on the panel below based on the channel control mode.
DaVinci Resolve User Interface
When the LCD is installed in a console above the Fairlight Audio Editor, the HDMI connection is used to connect the computer to the LCD. This allows the console operator to see the DaVinci Resolve interface without needing a separate monitor on a desk.
Full Screen Video Preview Monitor
The console LCD monitor also features an SDI connection that can be used to take the video preview from DaVinci Resolve via a DeckLink or UltraStudio interface. This lets you see a full screen preview of the program and is perfect for checking lip sync.
| Ethernet | Ethernet supports 10/100/1000 BaseT. |
| HDMI Video Input | HDMI Type A. |
| SDI Inputs | 1 x 3G_SDI. |
| SDI Rates | 1.5G, 3G. |
| HDMI Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M_B, SMPTE 425 Level A and Level B. |
| SDI Video Sampling | 4:2:2 |
| SDI Color Precision | 10-bit |
| SDI Color Space | YUV |
| Updates and Configuration | 1 x USB Type_C for software configuration and software updates. |
| Software | Internal software upgrade via updater application. |
| Operating Systems | Mac 10.15 Catalina or later. Windows 10, 64-bit. |
| Settings Control | Fairlight Studio and Console setup utility software when connected by USB. |
| Power Supply | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Usage | 20W max. |
| Environmental Specifications | 19.29 in W x 12.9 in H x 4.76 in D |
| Weight | 9.92 lb |
| Operating Temperature | 0¡ to 40¡C (32¡ to 104¡F) |
| Storage Temperature | -20¡ to 60¡C (-4¡ to 140¡F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Fairlight Console LCD Monitor |
| Warranty | 1 Year Limited Manufacturer'sÊWarranty |
