Blackmagic Design GPI and Tally Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

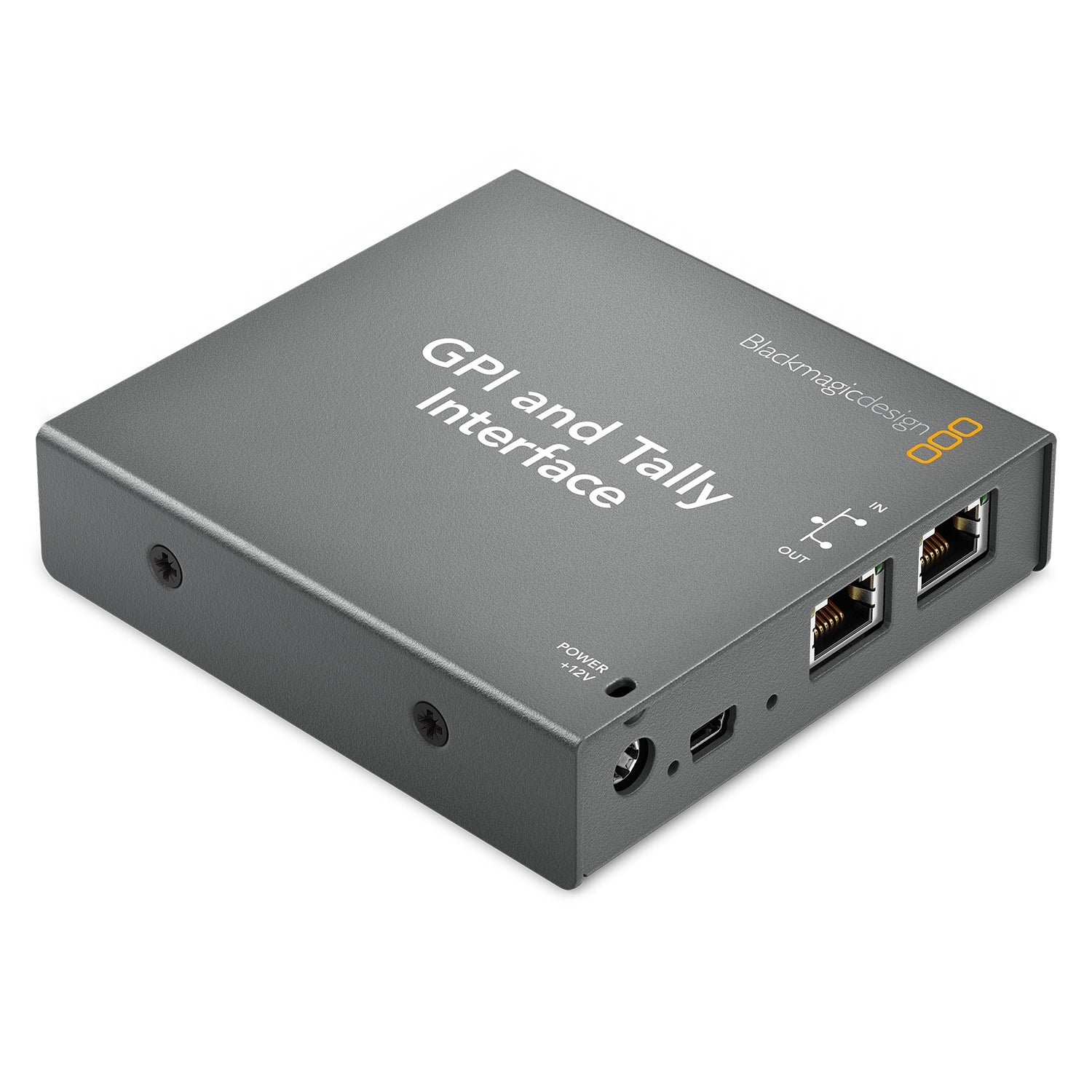

GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs. Tallies will be displayed when connected to an ATEM switcher to indicate their on-air status and you can even connect multiple interfaces together to increase the number of tally outputs.
| Connections | |

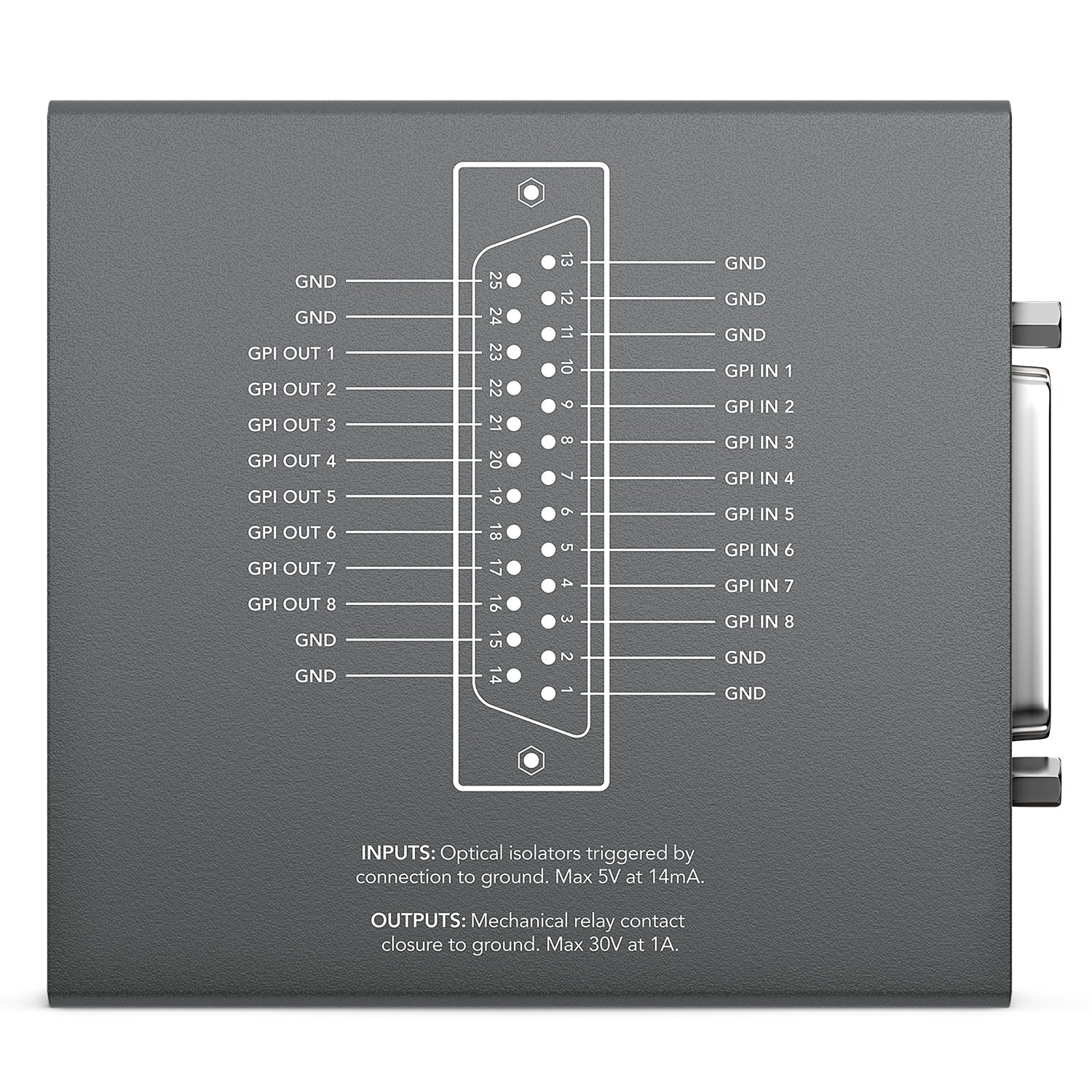

| Contact Closure | 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs |
| Inputs | Optical isolators triggered by connection to ground. Max 5V at 14mA. |
| Outputs | Mechanical relay contact closure to ground. Max 30V at 1A. |
| Ethernet | 10/100 BaseT with loop through for connecting to other ethernet enabled equipment |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| åÊ | |
| Extras | |
| Software Included | Configured via ATEM Switcher Utility |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
| Operating System Compatibility | Microsoft Windows 7 and Apple Mac OS X |
| Power Supply | 12V power supply included with international socket adaptors for all countries |
| Product Warranty | 12 Months Limited Manufacturer's Warranty |
GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs. Tallies will be displayed when connected to an ATEM switcher to indicate their on-air status and you can even connect multiple interfaces together to increase the number of tally outputs.
| Connections | |
| Contact Closure | 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs |
| Inputs | Optical isolators triggered by connection to ground. Max 5V at 14mA. |
| Outputs | Mechanical relay contact closure to ground. Max 30V at 1A. |
| Ethernet | 10/100 BaseT with loop through for connecting to other ethernet enabled equipment |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| åÊ | |
| Extras | |
| Software Included | Configured via ATEM Switcher Utility |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
| Operating System Compatibility | Microsoft Windows 7 and Apple Mac OS X |
| Power Supply | 12V power supply included with international socket adaptors for all countries |
| Product Warranty | 12 Months Limited Manufacturer's Warranty |
