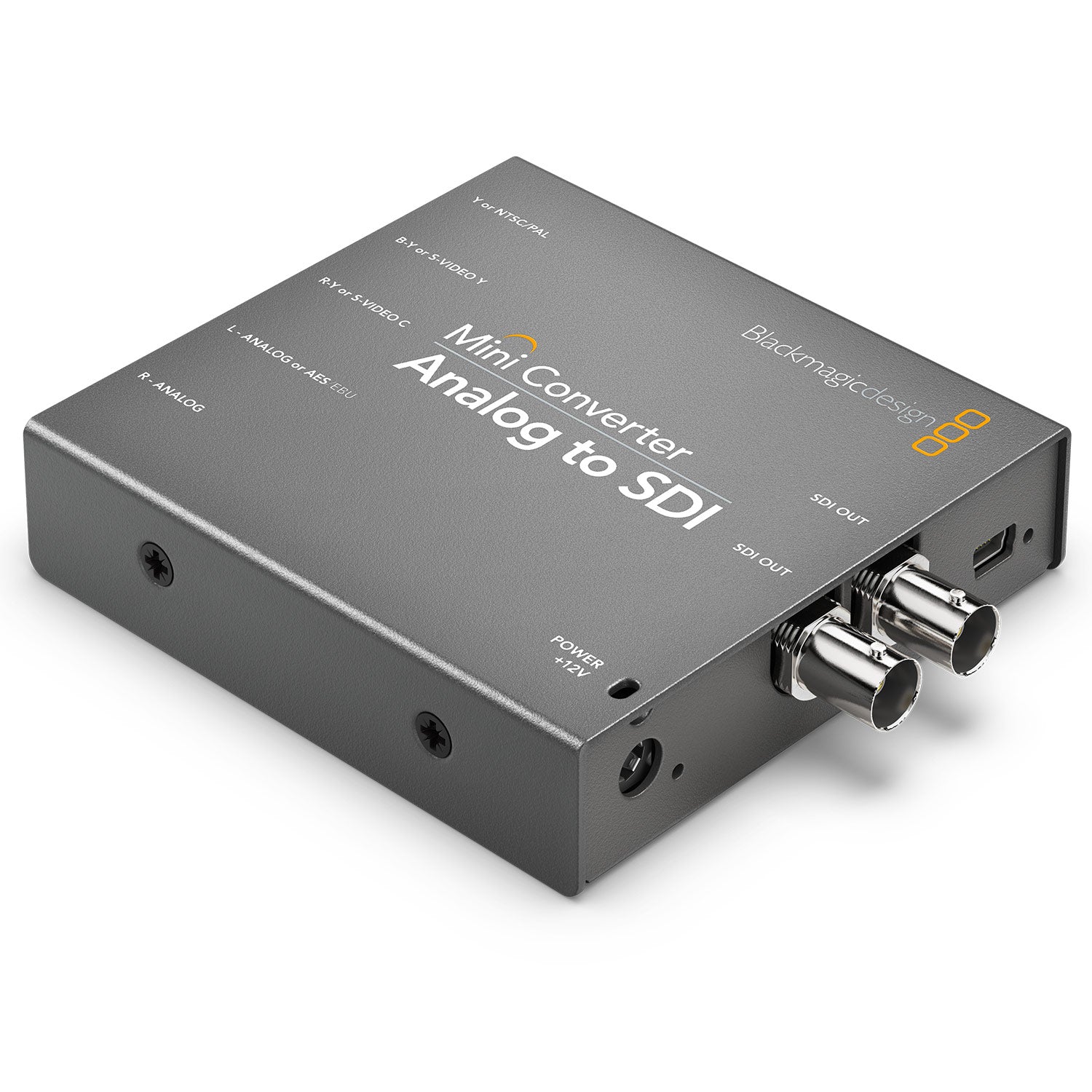

Blackmagic Design Mini Converter Analog to SDI

  • Dale #:

    BLMG-CONVMAAS2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD and 3Gb/s video standards. Whether you want to convert to or from SDI, move between different SDI video forma... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD and 3Gb/s video standards. Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of 12 models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.

The Analog to SDI Mini Converter is perfect for converting from analog HD/SD component, NTSC, PAL or S-Video to SDI out with balanced jack AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

More +

Product Specs

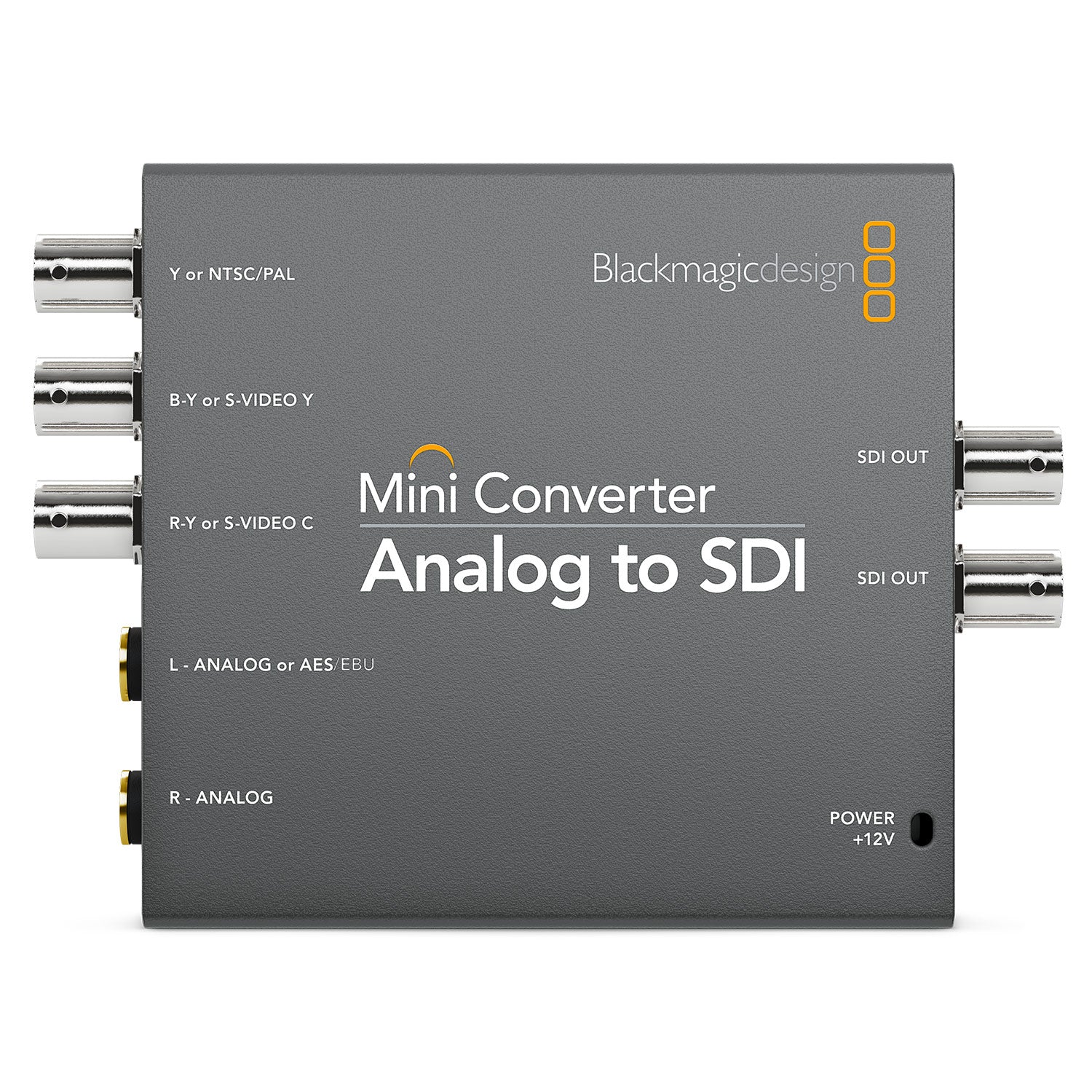

Connections
SDI Video Input None
SDI Video Output Automatically matches the SD and HD video input.
Analog Video Component SD/HD, NTSC, PAL and S-Video.
Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input None
Multi Rate Support Auto detection of HD or standard definition SDI inputs.
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Reclocking Yes

Standards
SD Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Color Space YUV
Analog Color Precision 4:2:2
HDMI Format Support N/A
HDMI Color Space N/A
HDMI Color Precision N/A
Copy Protection N/A

Extras
Software Control Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB.
Internal Software Upgrade Via included updater application.

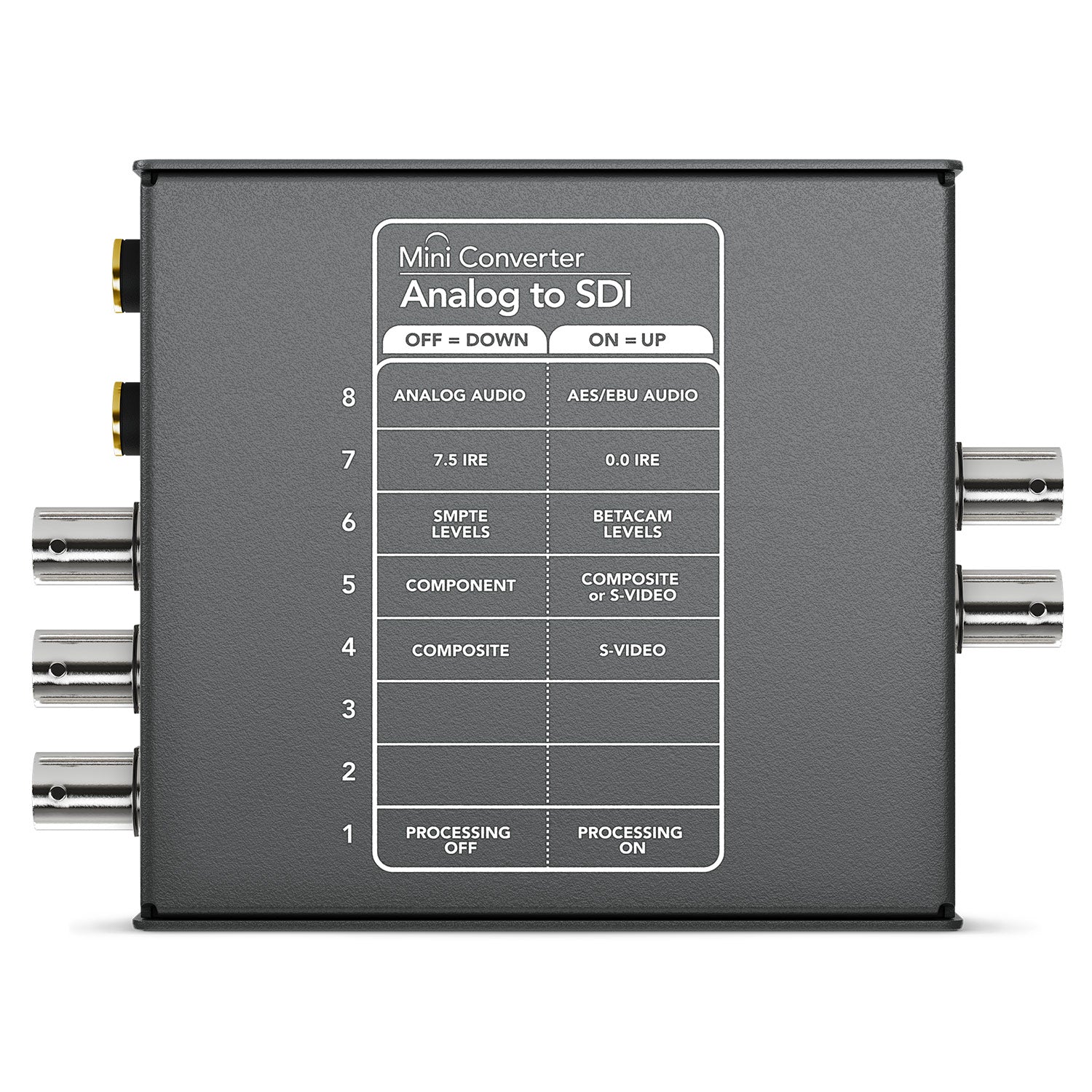

Settings Control Mini Switches or USB software.
Format Conversion None
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption 6.50 Watts
Operational Voltage Range 12 - 31 Vdc
Product Warranty 3 Year Limited Manufacturer's Warranty.
