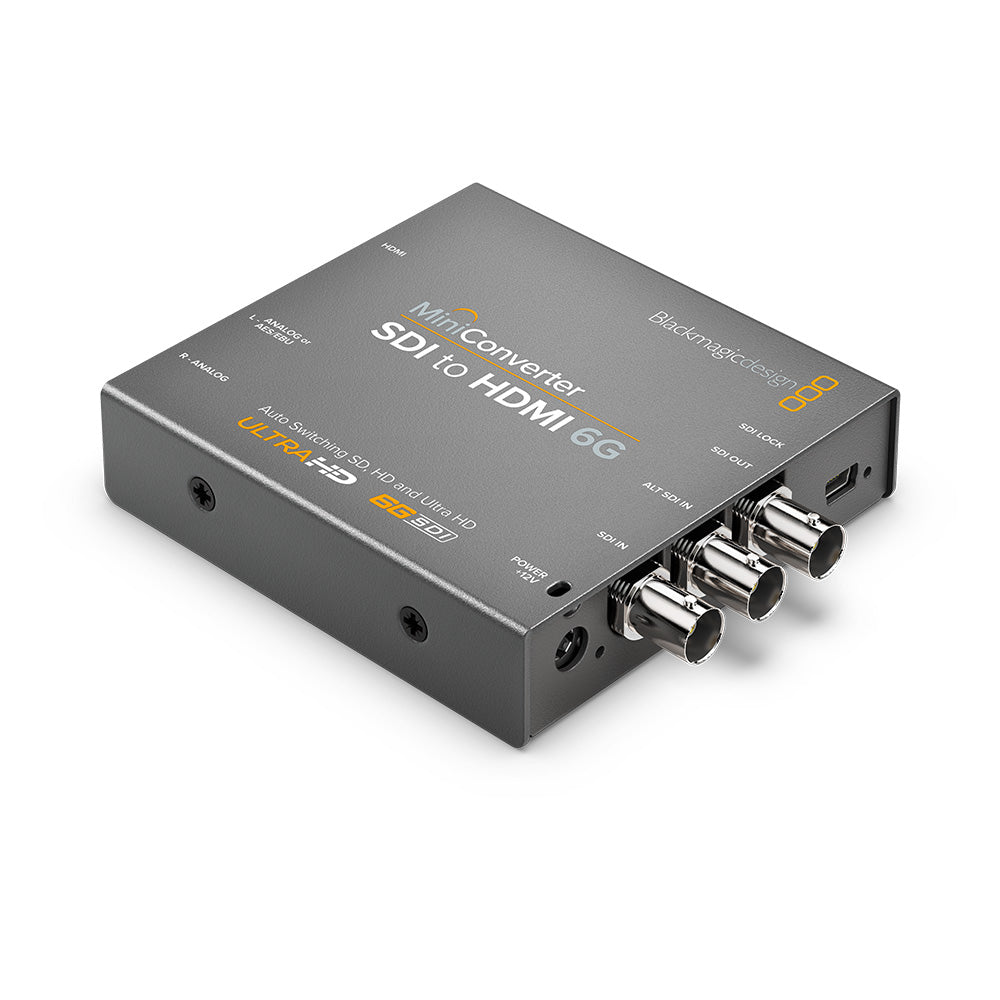

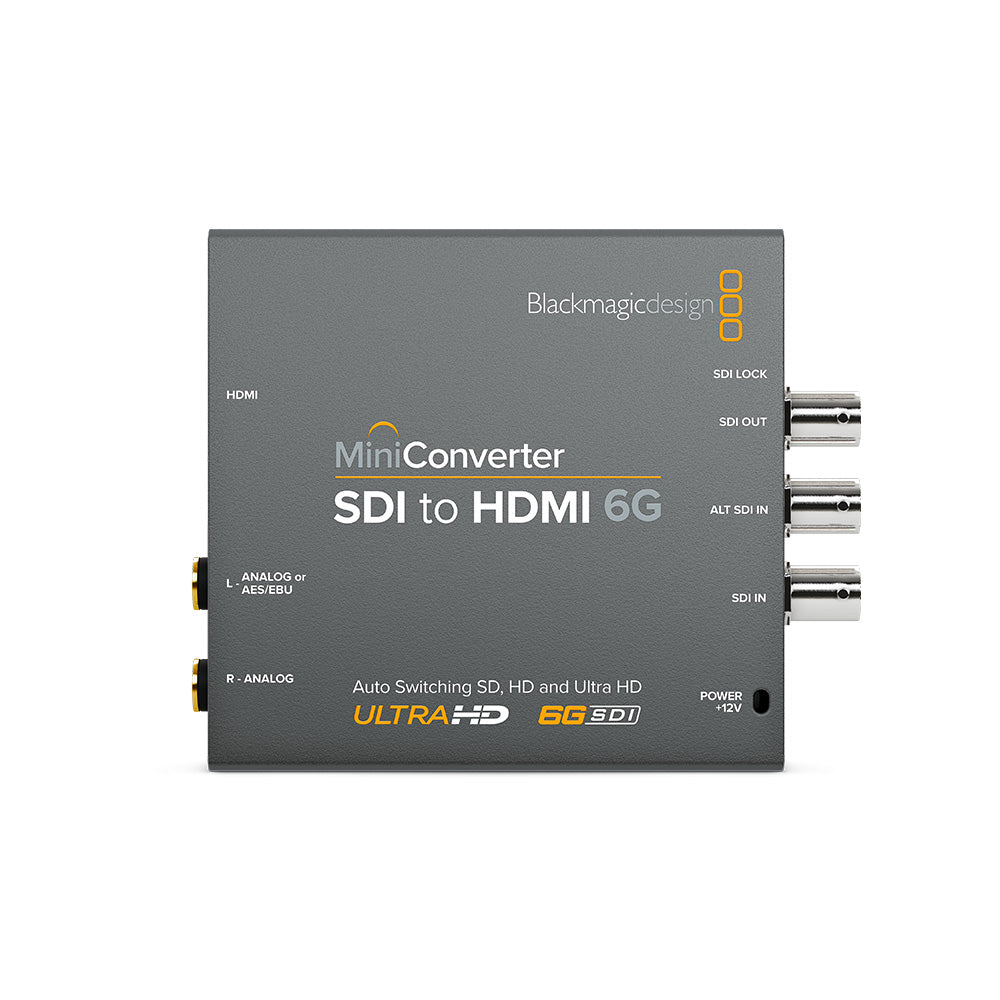

Blackmagic Design Mini Converter SDI 6G to HDMI

  • Dale #:

    BLMG-CONVMBSH4K6G
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Blackmagic Mini Converters are the world’s most advanced converters because they include the latest 6G-SDI technology, automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30! You get advanced features such as redund... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Blackmagic Mini Converters are the world’s most advanced converters because they include the latest 6G-SDI technology, automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30! You get advanced features such as redundant SDI inputs, re‑clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analog and AES/EBU audio connections so you can convert video, as well as embed or de-embed audio! Choose from a wide range of 3G and 6G-SDI models, depending on the conversion you need!

Most Mini Converter models feature 6G-SDI, making them compatible with all SD, HD and Ultra HD formats up to 2160p30! Ultra HD features a massive 3840 x 2160 frame size that's 4 times the resolution of regular 1080 HD video! The 6G-SDI connections are multi-rate, so they are fully compatible with all of your existing SD and HD-SDI equipment, as well as Ultra HD! The advanced SDI connections automatically detect the input signal and switch formats as needed.

Process your audio separately or embedded
In professional broadcast, post and live production workflows, the audio is just as important as the video. Blackmagic Mini Converters maintain the cleanest possible audio signal and always keep it in sync with your video! Mini Converters support embedded SDI and HDMI audio, and there are several models that let you separately embed or de-embed it to balanced analog or AES/EBU digital connections. Mini Converters support 24 bit analog and AES/EBU audio, and feature standard 1/4 inch audio jacks so you don't need custom cables!

Safeguard against a damaged SDI cable
Anything can happen during a live production and you can’t afford to lose a signal and go off air. All Blackmagic Mini Converters with SDI inputs feature an innovative redundant SDI input so you can run a second SDI cable as a back up in case one cable is damaged! This feature is great for outdoor use, or in large, crowded venues where there’s a chance cables might get damaged. Often it makes sense to run the second cable on a different route than the first. If the main input is lost, the converter automatically switches over to the second input, so you’re always on air!

True broadcast quality for professional use
With the highest quality 10-bit video processing and low jitter SDI, Mini Converters are ideal for the stringent requirements of broadcast, post production and professional AV. You get incredibly low noise levels when moving between analog and digital video formats. Low SDI jitter and full SDI re-clocking means you can run long cable lengths without any loss of video quality. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats, and then all the way up to massive 3840 x 2160 Ultra HD resolutions!

Simple to set up and update

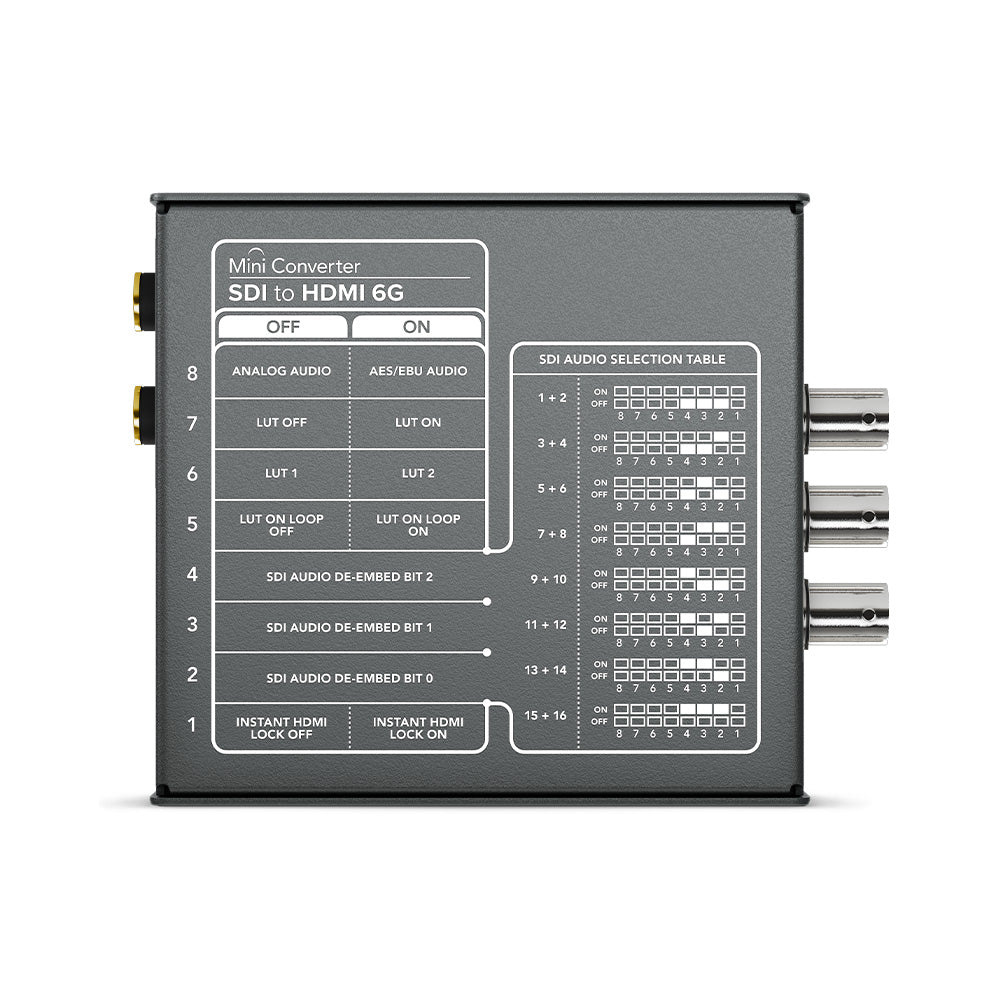

Changing settings on Mini Converter's is as easy as using the built in function switches! This is great when you need to change settings quickly as there are no complicated menus to navigate. There’s even a printed switch diagram on each converter, so you never have to find the manual! You can also control settings using the included Converter Utility software by connecting the converter to any OS X or Windows computer! All models can be updated to the latest software via USB by simply downloading upgrades directly from the Blackmagic Design website and connecting the Mini Converter to your Mac or Windows computer! This means Mini Converters can be updated to include new video standards and technologies when they become available.

More +

Product Specs

SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Outputs 1 x SDI Video Loop Output.
HDMI Video Outputs HDMI type A out.
Analog Audio Outputs 2 channels of balanced analog audio.
Digital Audio Outputs 4 channels of AES/EBU digital audio
SDI Redundant Input Automatically switches over if main SDI input is lost.
Multi Rate Support Auto detection of SD, HD or 6G‑SDI.
Updates and Configuration USB
Reclocking Yes
SD Video Standards 625i50 PAL, 525i59.94 NTSC
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
SDI Video Rates SDI video inputs are automatically detected between standard definition and high definition.
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB
SDI Auto Switching Automatically detects SD, HD or 6G‑SDI.
HDMI Video Standards 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
HDMI Color Space YUV and RGB
HDMI Color Precision 4:2:2 and 4:4:4
Software Control Mac OS and Windows software upgrade via USB.
Internal Software Upgrade Via included updater application.
Operating Systems Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control Mini Switches or USB software.
Power Requirements +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Operational Voltage Range 12 ‑ 18V DC
Power Consumption 5.2 Watts
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Mini Converter SDI to HDMI 6G
12V universal power supply with international socket adapters
Warranty 3 Year Limited Manufacturer's Warranty.
