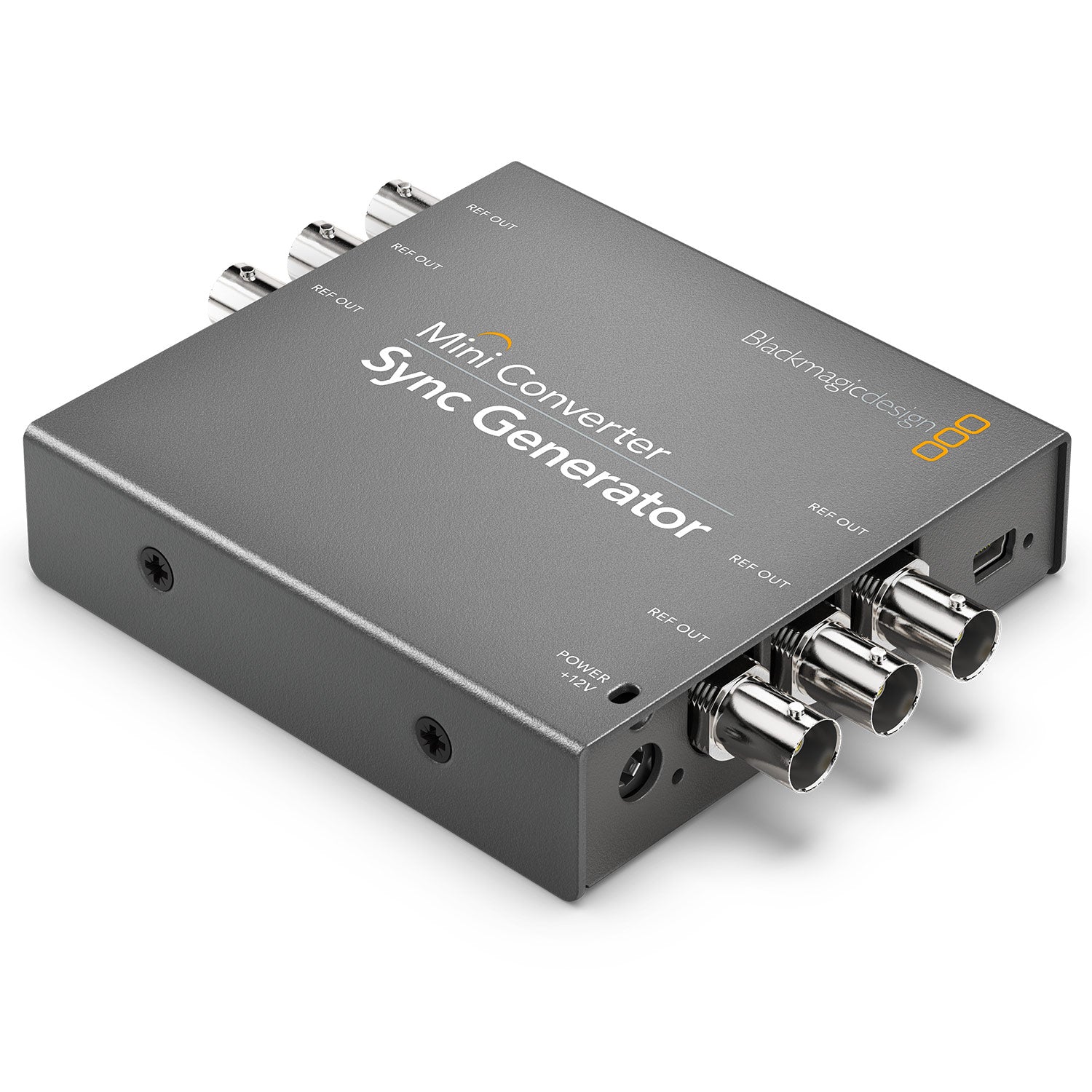

Blackmagic Design Mini Converter Sync Generator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD and 3Gb/s video standards. Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of 12 models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.
The Sync Generator Mini Converter includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
| Connections | |
| SDI Video Output | None |
| Analog Video | 6 x common reference outputs |
| Analog Audio | None |
| AES/EBU Digital Audio | None |

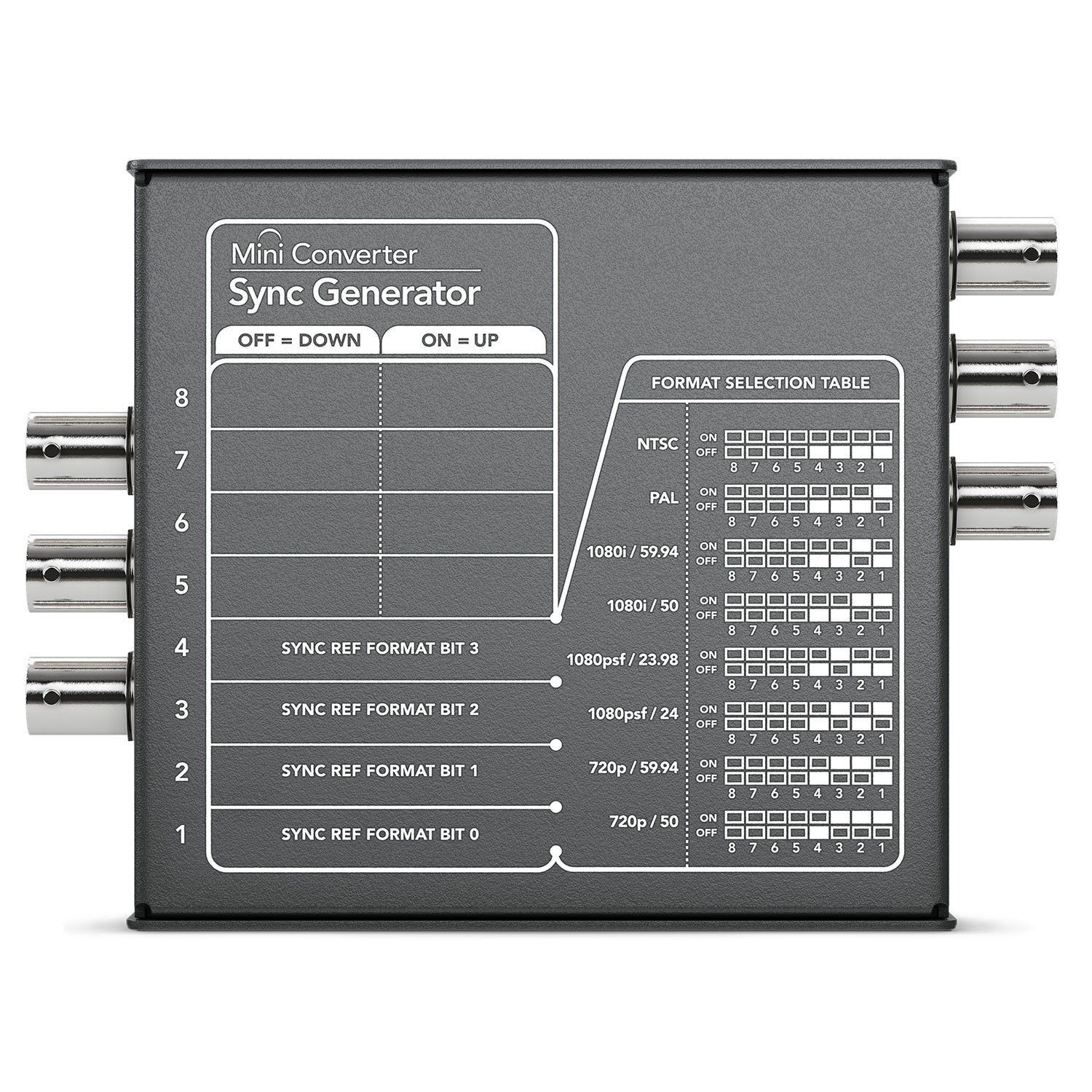

| Multi Rate Support | Via mini switches |
| Updates and Configuration | Via USB 2.0 high speed. (480 Mb/s) |
| Reclocking | N/A |
| åÊ | |
| Standards | |
| Analog Format Support | 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30. |
| åÊ | |
| Extras | |
| Software Control | Mac OS X䋢 and Windows䋢 software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | Mini Switches or USB software. |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 3.00 Watts |
| Operational Voltage Range | 12V |
| Product Warranty | 3 Year Limited Manufacturer's Warranty. |
Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD and 3Gb/s video standards. Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of 12 models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.
The Sync Generator Mini Converter includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
| Connections | |
| SDI Video Output | None |
| Analog Video | 6 x common reference outputs |
| Analog Audio | None |
| AES/EBU Digital Audio | None |
| Multi Rate Support | Via mini switches |
| Updates and Configuration | Via USB 2.0 high speed. (480 Mb/s) |
| Reclocking | N/A |
| åÊ | |
| Standards | |
| Analog Format Support | 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30. |
| åÊ | |
| Extras | |
| Software Control | Mac OS X䋢 and Windows䋢 software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | Mini Switches or USB software. |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 3.00 Watts |
| Operational Voltage Range | 12V |
| Product Warranty | 3 Year Limited Manufacturer's Warranty. |
