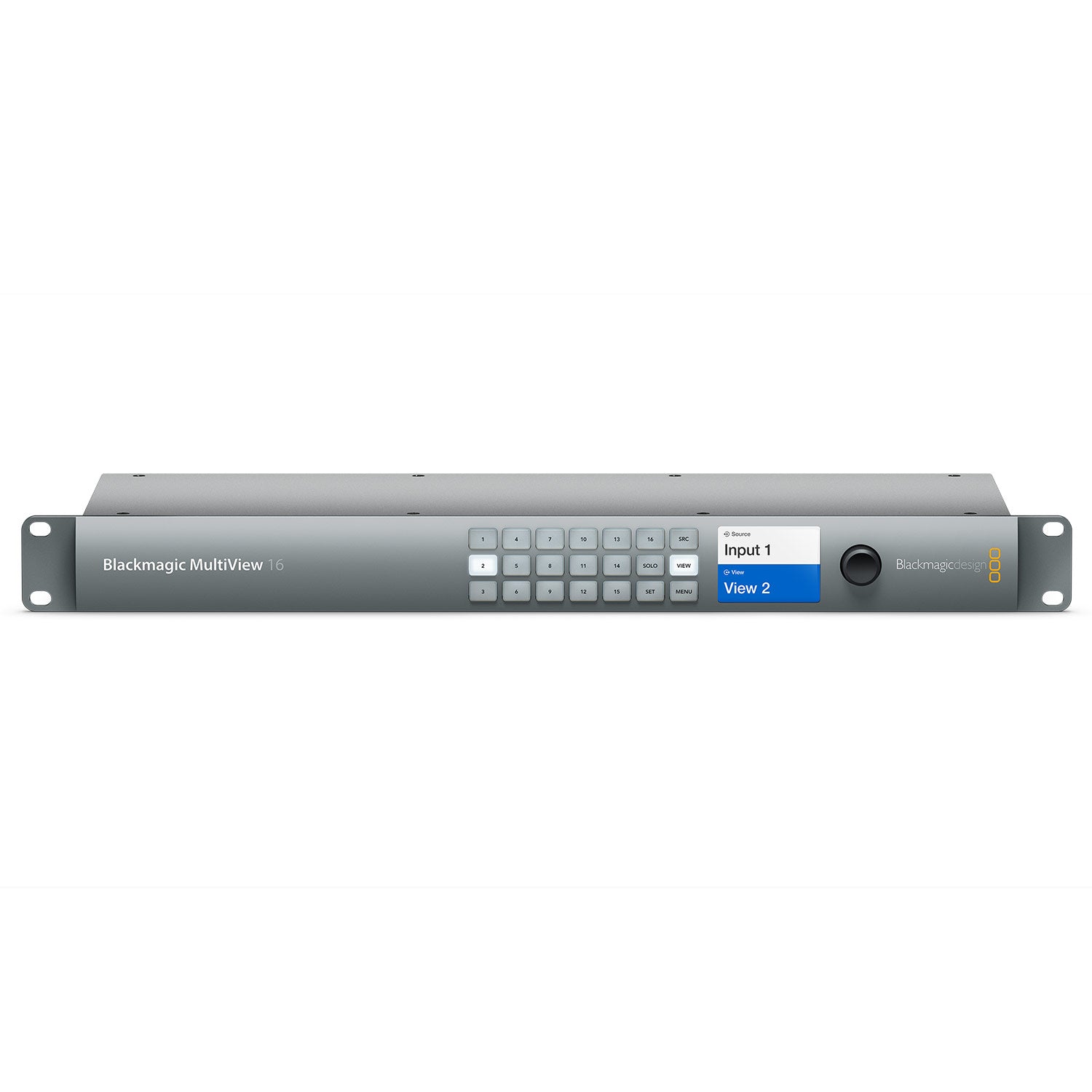

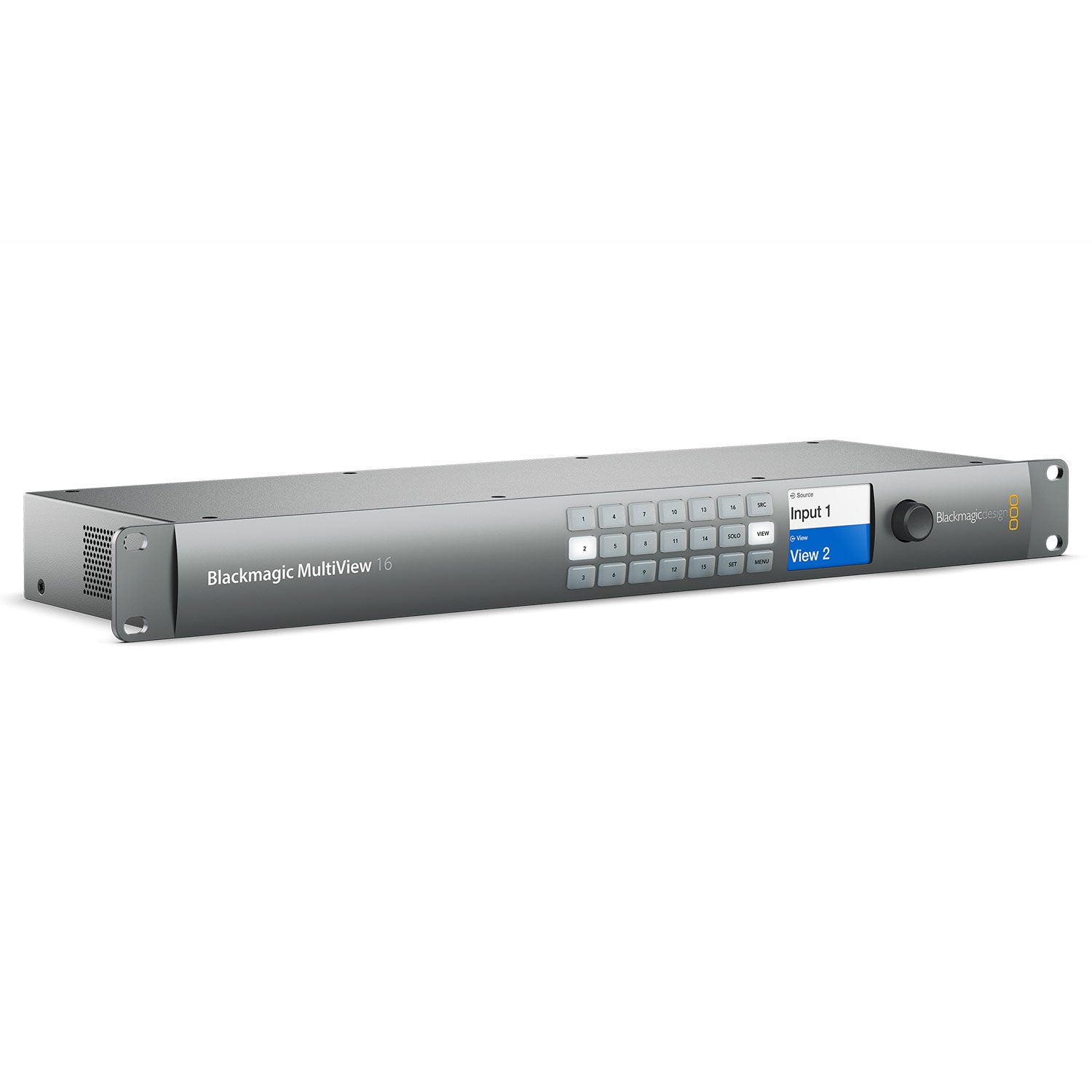

Blackmagic Design MultiView 16 High Definition Multi-Viewer
Dale #:
BLMG-HDLMULTIP6G16Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
Blackmagic MultiView 16 is the world's first multi viewer that operates natively in Ultra HD, which allows you to use an Ultra HD monitor or television for twice the image sharpness, even if you are not even using Ultra HD in your facility yet! Now you can connect up to 16 different SD, HD and Ul... Read MoreOur Price: $1,735.00
Free Shipping (Continental US)
Suggested Accessories
Description
Blackmagic MultiView 16 is the world's first multi viewer that operates natively in Ultra HD, which allows you to use an Ultra HD monitor or television for twice the image sharpness, even if you are not even using Ultra HD in your facility yet! Now you can connect up to 16 different SD, HD and Ultra HD SDI sources into one display for monitoring! Blackmagic MultiView 16 allows 4, 9 or 16 views to be selected and each input includes a full frame re-synchronizer so you can have any combination of SD, HD and Ultra HD SDI sources connected, all at the same time!
Features:
- Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view
- Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order
- Full frame re-sync on each input
More +
Product Specs

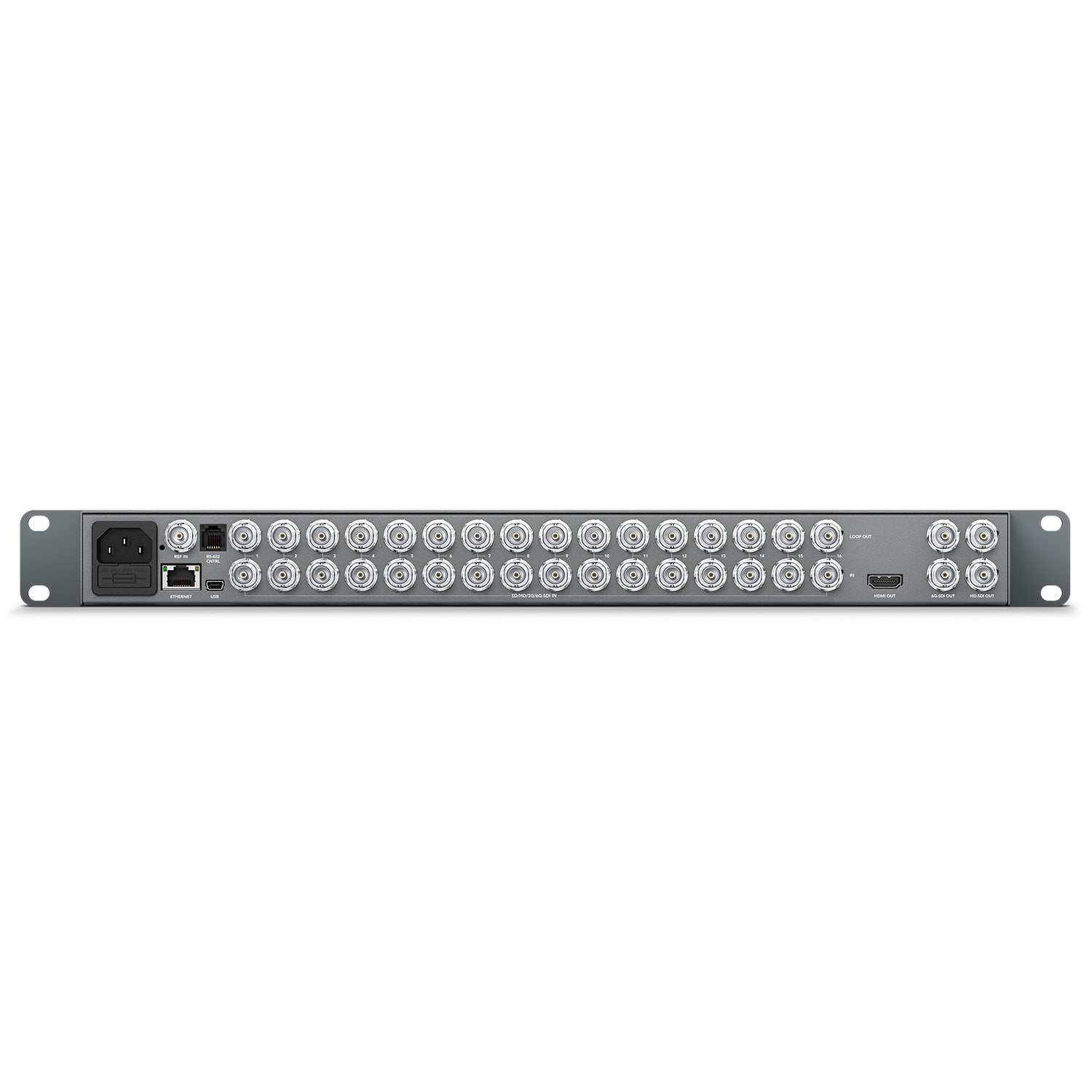

| Connections | åÊ |
| SDI Video Input | 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI. |
| SDI Video Loop Output | 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI. |
| Multi View Outputs | 4 x SDI plus 1 x HDMI (2 x HD, 2 x 6G-SDI, 1 x HDMI), able to be used concurrently. |
| SDI Video Multi View Outputs | 2 x 10-bit HD-SDI, 2 x 10 bit 6G-SDI. |
| HDMI Video Multi View Outputs | 1 x HDMI type A connector. Output supports EDID of the monitor. |
| Reference Input | Black burst and Tri-level Sync for SD, HD and 4K. |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video. |
| Updates | USB 2.0 high speed (480Mb/s) interface or via Ethernet. |
| Control | 16 buttons for local control of MultiView 16. 5 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. |
| Configuration | Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting. |
| RS-422 Control | 1 x input for configuring layouts. |
| Reclocking | On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video. |
| Standards | åÊ |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC. |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. |
| 2K Format Support | 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25. |
| 4K Format Support | 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24. |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601. |
| SDI Video Rates | SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI. |
| SDI Video Sampling | 4:2:2 and 4:4:4. |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| SDI Color Precision | 10-bit 4:2:2 and 4:4:4. |
| SDI Color Space | YUV or RGB for inputs, YUV for outputs. |
| SDI Auto Switching | Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard. |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. |
| Displays | Built-in 1.5" LCD for menu settings |
| Software | åÊ |
| Software Control | Multi view software included free for Windows䋢 and Mac OS X䋢. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac OS X 10.11 El Capitan, macOS Sierra or later. Windows 8.1 or Windows 10. |
| Power Requirements | åÊ |
| Power Fail Protection | MultiView 16 settings preserved and restored instantly at power on |
| Power Supply | IEC power cable required. 90 - 240V AC input. |
| Dimensions | 18.97 in W x 1.74 in H x 6.03 in D |
| Weight | 4.62 lbs |
| Operating temperature | 0å¡ to 40å¡ C (32å¡ to 104å¡ F) |
| Storage temperature | -20å¡ to 45å¡ C (-4å¡ to 113å¡ F) |
| Relative Humidity | 0% to 90% non-condensing |
| In The Box | Blackmagic MultiView 16 Tarjeta SD con manual y programas |
| Warranty | 12 month Limited Manufacturer's Warranty |
