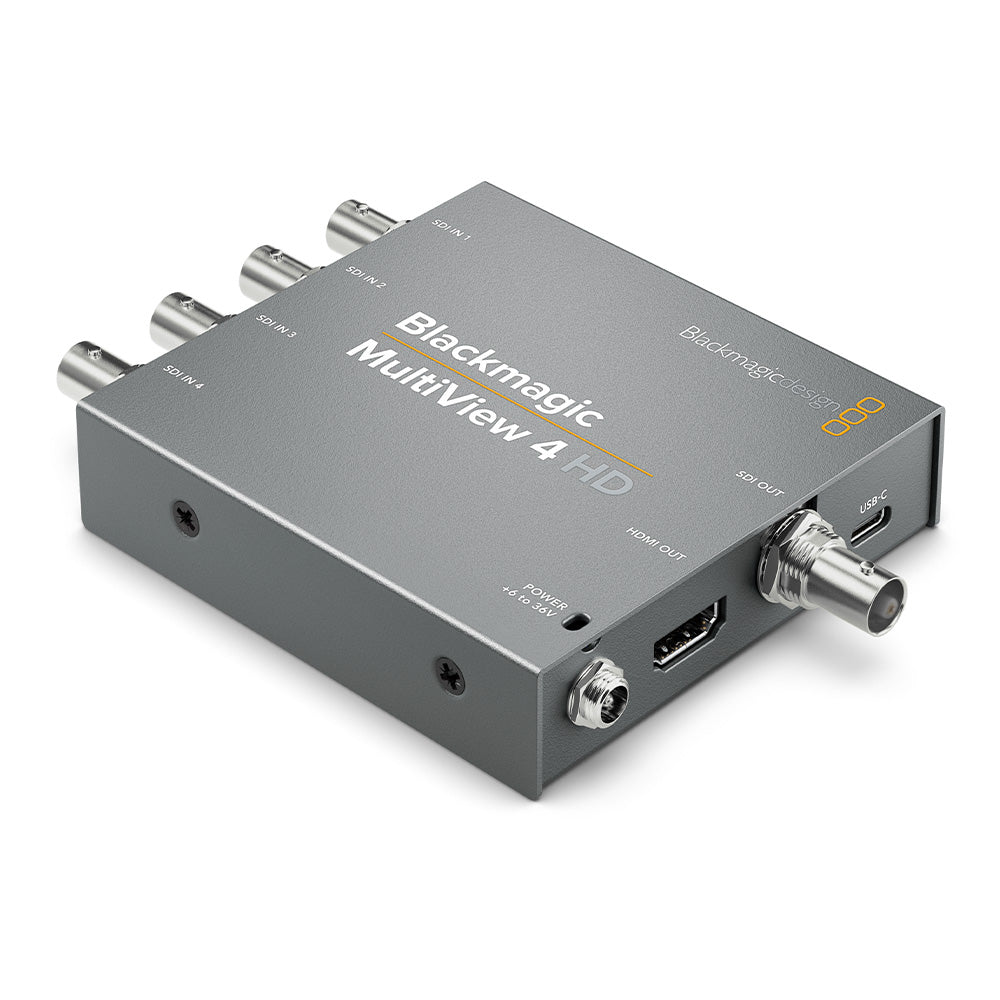

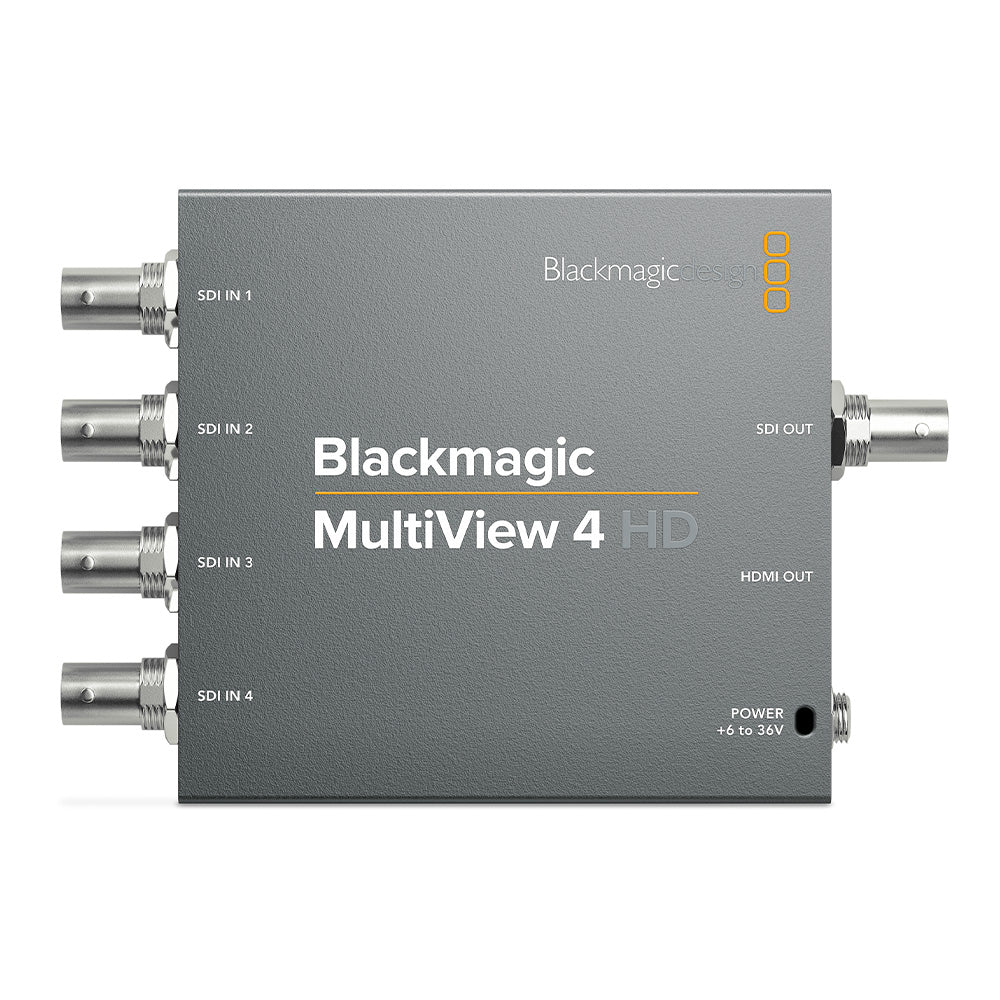

Blackmagic Design MultiView 4 HD - Compact SDI Multiviewer

  • Dale #:

    BLMG-HDLMULTIP3G04HD
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custo... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions.

Blackmagic MultiViews are the world’s first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame re‑synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen! You also get on screen audio meters, custom view labels and much more!

Monitor up to four different SD and HD sources on the same display at the same time
The new Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions.

Multi source monitoring designed for broadcasters
Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don’t have room for multiple monitors. With Blackmagic MultiViews you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor.

Mix any combination of SD, HD and Ultra HD sources
Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re‑synchronization on all SDI inputs, which means that they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30 on some models, all on the same display at the same time! It's like getting 4 or 16 independent monitors in one.

The world’s highest resolution multi viewer
All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2x2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more.

Custom labels, tally, audio meters and more

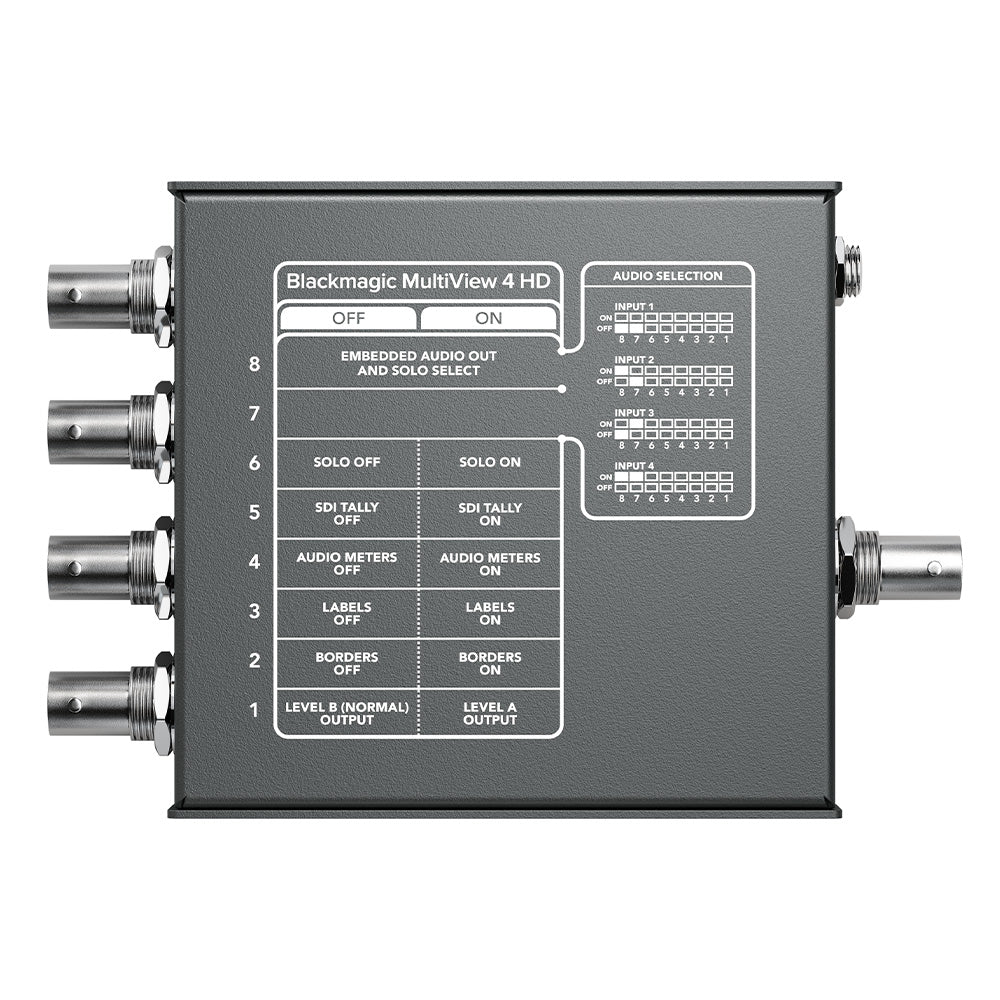

Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.

Supports all of your SD, HD and Ultra HD equipment
Blackmagic MultiView models feature multi rate SDI inputs with full frame re-synchronization and some models also have separate loop through outputs, making them compatible with your existing equipment. The SDI inputs automatically detect and re-sync SD and HD formats, plus some models also re-sync Ultra HD formats up to 2160p30. You get HDMI and SDI output, and MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.

Flexible Design
The tough metal mini converter style design of MultiView 4 HD makes it perfect for use on the road or in tough broadcast environments. Simply plug in your sources and start monitoring! The MultiView 4 works with HD or Ultra HD and features a Teranex Mini style design which means you can use it rack mounted or on a desktop. You can add an optional front panel or use Ethernet for more control options. MultiView 16 is designed for larger setups in which you need to view more sources on the same screen. You get router style front panel controls, a spin knob and LCD screen that make it fast to adjust settings, add overlays, and quickly route any source to any view on the grid.

More +

Product Specs

SDI Video Inputs 4 x 10-bit SD-SDI and HD-SDI.
SDI Video Outputs 1 x HD-SDI.
SDI Rates 270Mb, 1.5G, 3G.
SDI Video Multi View Outputs 1 x 10-bit HD-SDI.
HDMI Video Multi View Outputs 1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking On all SDI outputs, auto switching between standard definition or high definition.
Reference Input None
Multi Rate Support Auto detection of SD or HD.
Updates USB 2.0 high speed (480Mb/s) interface.
Configuration USB 2.0
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio Meters Each view, VU standard.
Source Routing None
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision 10-bit 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Built in Control Panel None
External Control Panel None
Display None
Software Control MultiView software included free for Windows™ and Mac™.
Internal Software Upgrade Via included updater application.
Operating Systems Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Fail Protection MultiView 4 HD settings preserved and restored instantly at power on.
Power Consumption 5.5 Watts
Operational Voltage Range 6 to 36V DC
Physical Specifications 5.27 in W x 0.86 in H x 3.62 in D
Weight 8.53 oz
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Blackmagic MultiView 4 HD
+12V universal power supply with international socket adapters
Warranty 3 Year Limited Manufacturer's Warranty.
