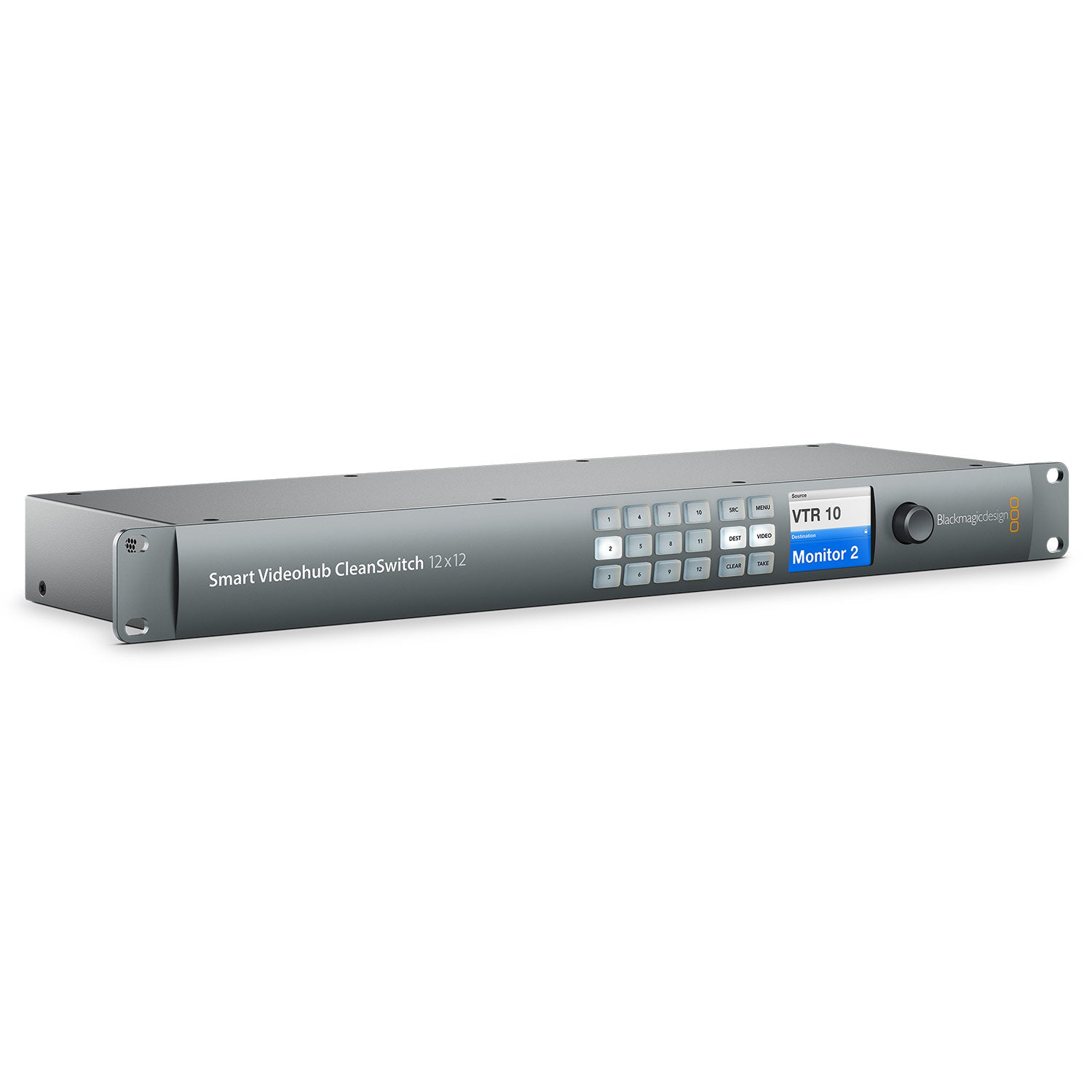

Blackmagic Design Smart VideoHub CleanSwitch 12x12 Video Router

  • Dale #:

    BLMG-VHUBSMTCS6G1212
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually al... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

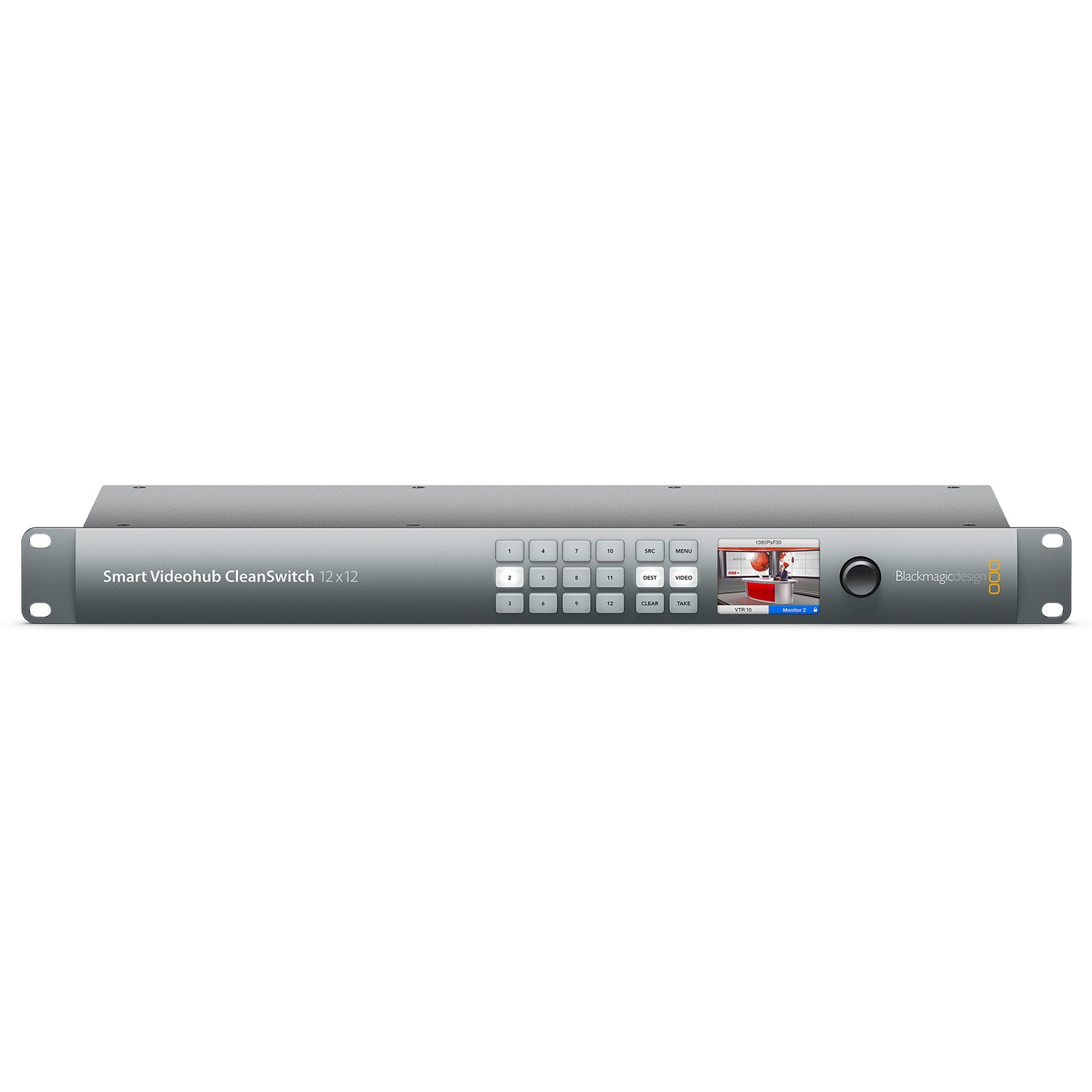

Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.

When you need to cleanly switch between video sources to monitors or directly to air, you need timed or genlocked signals. If you cannot guarantee perfectly timed source signals but you still need to clean switch then Smart Videohub CleanSwitch 12x12 is the special model of Videohub that features resynchronization on all inputs so you get perfect clean feeds every time! Smart Videohub CleanSwitch 12x12 has all of the same great features of Smart Videohub 12x12 plus includes full resynchronization on every input so the router automatically re times all inputs to ensure clean, glitch free switching between router cross points. Sources of the same resolutions and the same frame rate can even be output directly to air for smooth, cuts only production. Just like all Smart Videohub models, you can control Smart Videohub CleanSwitch directly from the front panel or remotely over ethernet using the Videohub Control Panel software on a Mac or PC.

Visual Routing
Scan through video at lightning speed! Smart Videohub's super fast spin knob control lets you dial though your router cross points while displaying live video combined with custom on screen labels. Scroll order is arranged alphabetically so it’s easy to find the crosspoint you are looking for! The spin knob control combined with visual routing is the fastest way to route! Imagine scrolling through your connections while viewing them as live video on the LCD! On screen labels support unicode so they work in non Roman character sets such as Chinese, Japanese, Russian, German, French, Spanish and more. That means if you have labels in Japanese it will appear on the front panel in Japanese exactly the same as it appears on the software control panel on your computer.

Built In Video Monitoring
Now you can monitor all the live video connected to your Videohub. The built in LCD lets you see your video in virtually every TV format! That means you don't need a separate external monitor because it's built into the front panel of the router itself! You can look at any source or destination and confirm the correct video inputs are being sent to the correct video outputs. Built in monitoring is perfect when space is tight, such as mini racks and broadcast trucks.

Multi Rate 6G-SDI: Work with SD, HD and Ultra HD
All Smart Videohub models feature 6G-SDI connections for working with standard frame rate Ultra HD video, while retaining full compatibility with all of your SD and HD-SDI equipment. You get the perfect quality of SDI video connections with the flexibility to work in any television format you like, as well as 4:2:2 or 4:4:4 color sampling. Even if you’re not running in Ultra HD now, you can still work in SD or HD today and be ready for Ultra HD when you need it.

More +

Product Specs

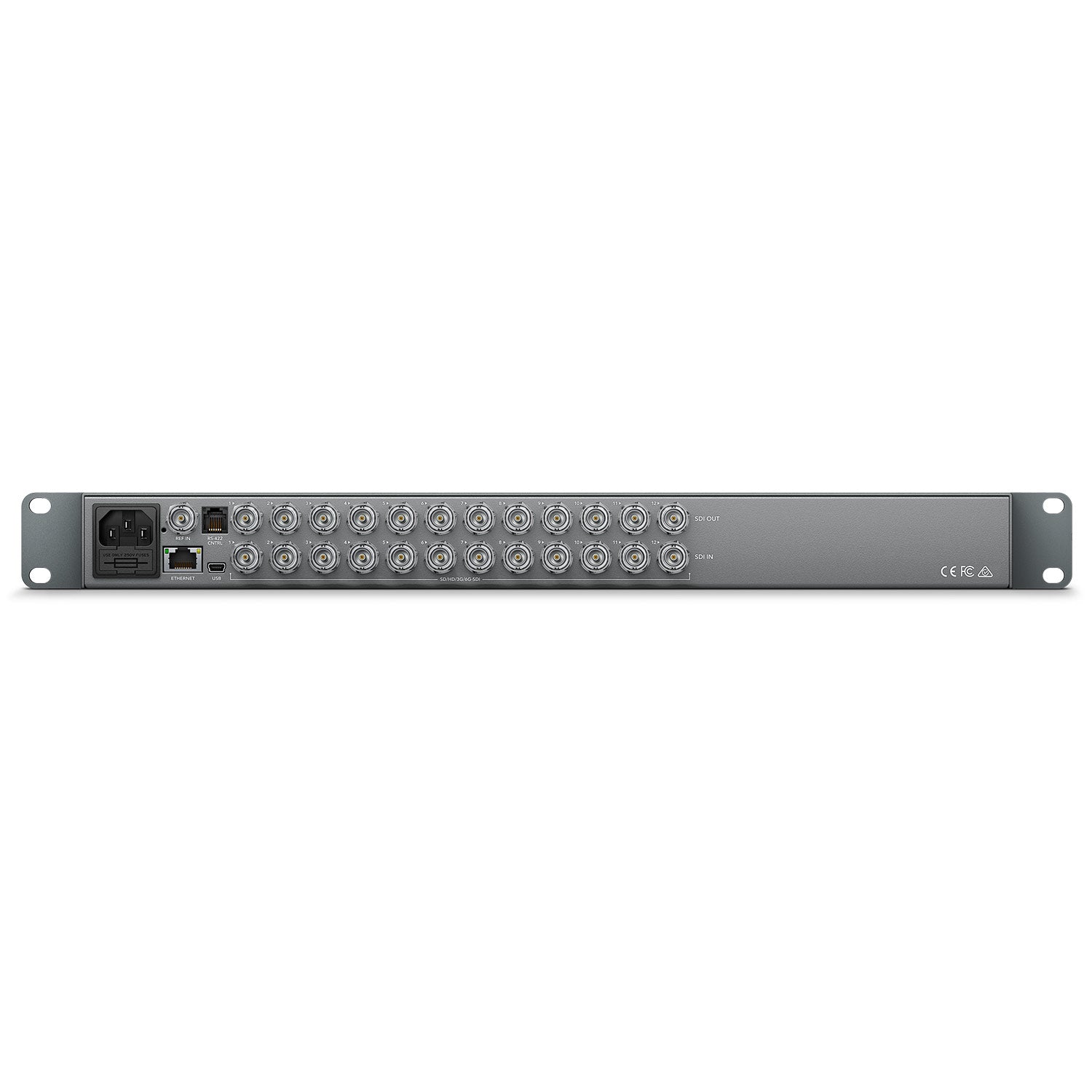

Connections
SDI Video Input 12
SDI Video Output 12
SDI Rates 270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync On all 12 inputs for clean switch.
SDI Relocking On all SDI outputs.
Reference Input Tri-Sync or Black Burst.
Control Panel Connection Ethernet.
Serial Control Connection RJ-6 RS RS-422.
Multi Rate Support Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates USB.
Front Panel Router Control 12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control 1 x input for controlling router crosspoint switching.
Standards
SD Format Support 525i59.94 NTSC, 625i50 PAL.
HD Format Support 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF9.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, ITU-R BT.656 and ITU-R BT.601.
SDI Video rates SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision 4:2:2 and 4:4:4 10 bit.
SDI Color Space YUV or RGB.
SDI Auto Switching Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input.
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control
Built-in Control Panel 12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel Includes Blackmagic Videohub software control panel for Mac OS X and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ehternet Videohub Control Protocol.
Software Control Router control included free for Windowsâ„¢ and Mac OS Xâ„¢.
Internal Software Upgrade Via included updater application.
Operating Systems Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Display Built-in LCD for video and menu settings.
Power Requirements
Power Fail Protection Router connections preserved and restored instantly at power on.
Power Supply IEC power cable required. 90 - 240V AC input.
Physical
Physical Installation 1 rack unit size. Less than 6 inches deep.
Dimensions 19 in W x 1.75 in H x 6.30 in D
Weight 4.14 lbs
Environmental Specifications Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Smart Videohub CleanSwitch 12x12
SD card with software and manual
Warranty 12 Month Limited Manufacturer's Warranty.
