Availability: Usually ships in 5 - 10 Days
Our Price: $1,695.00

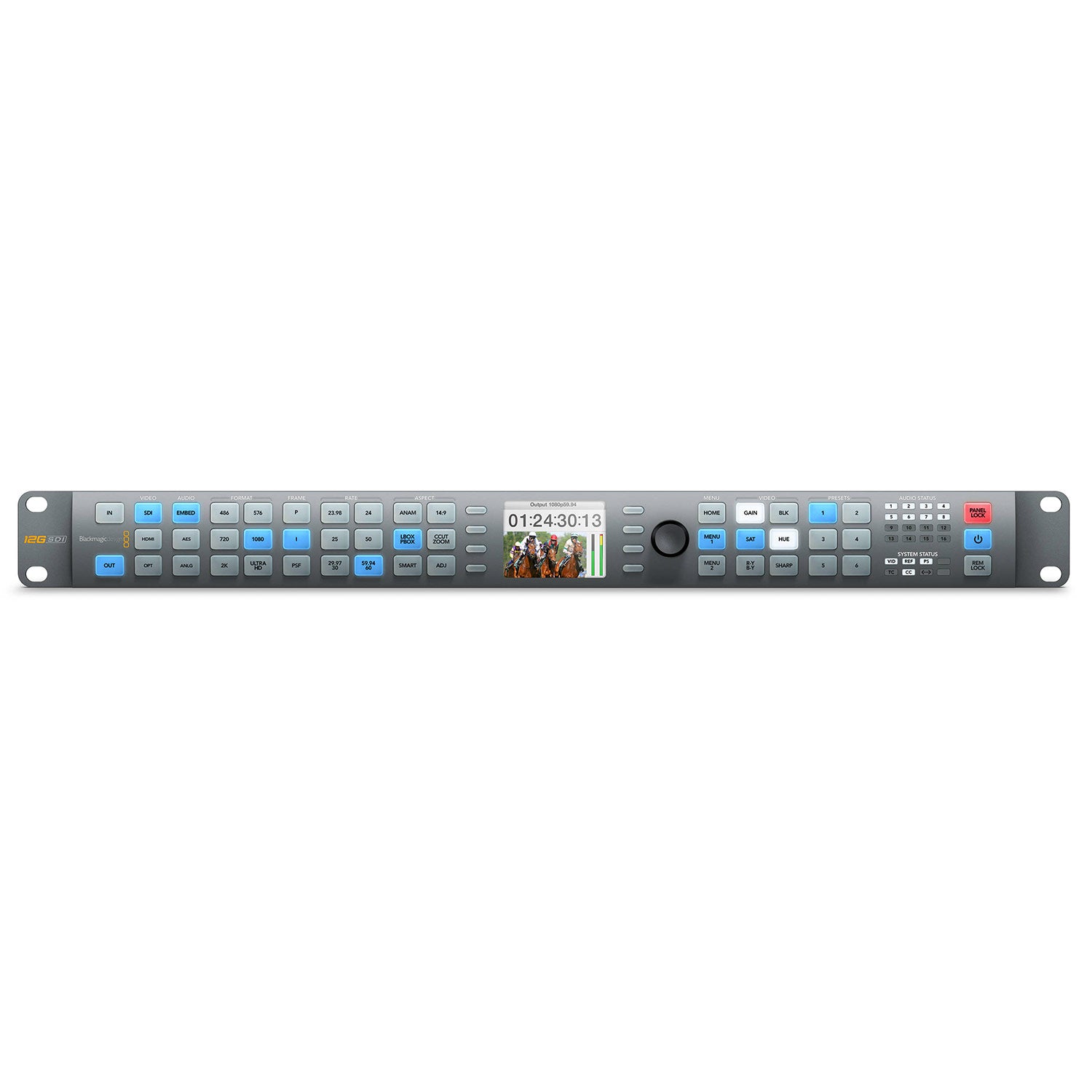

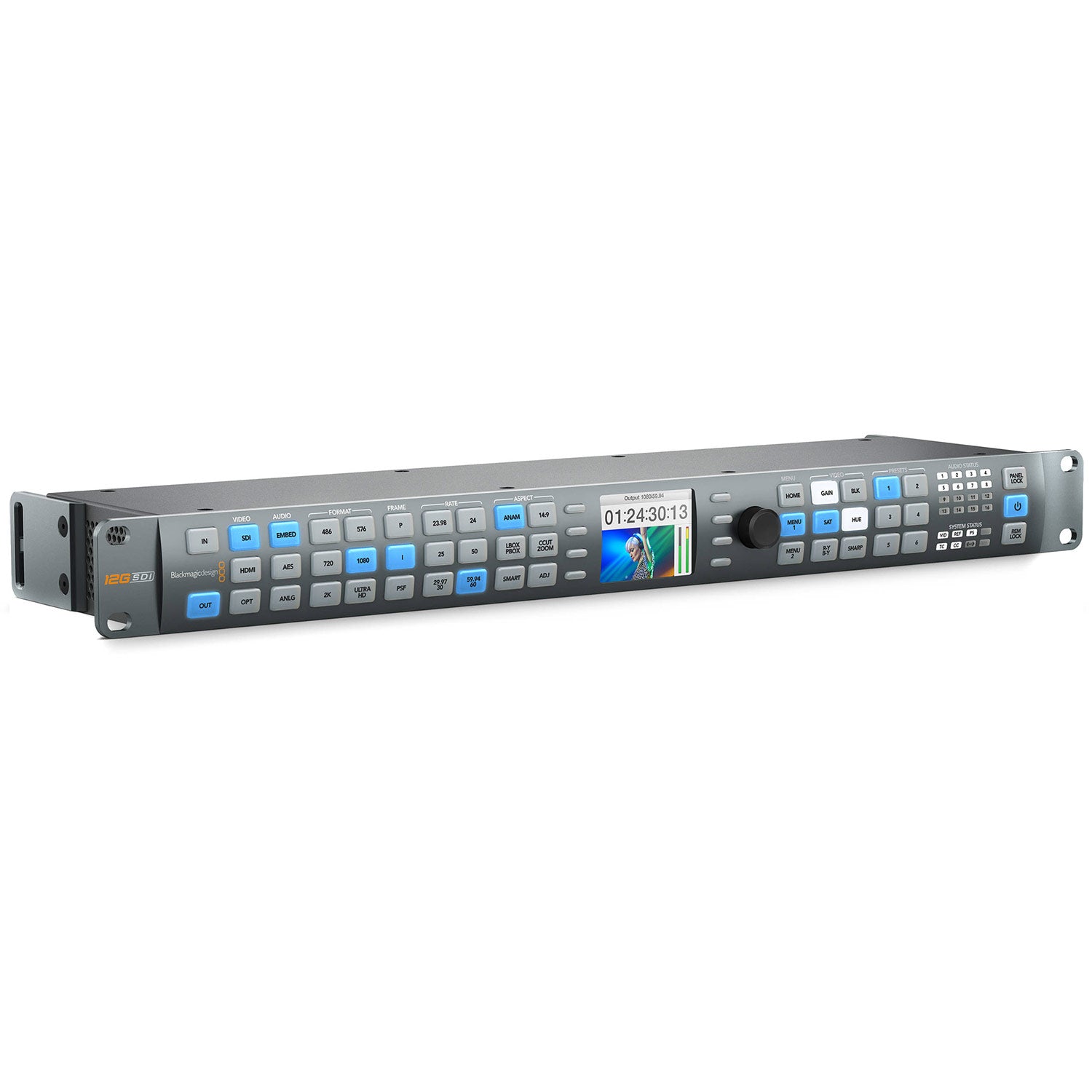

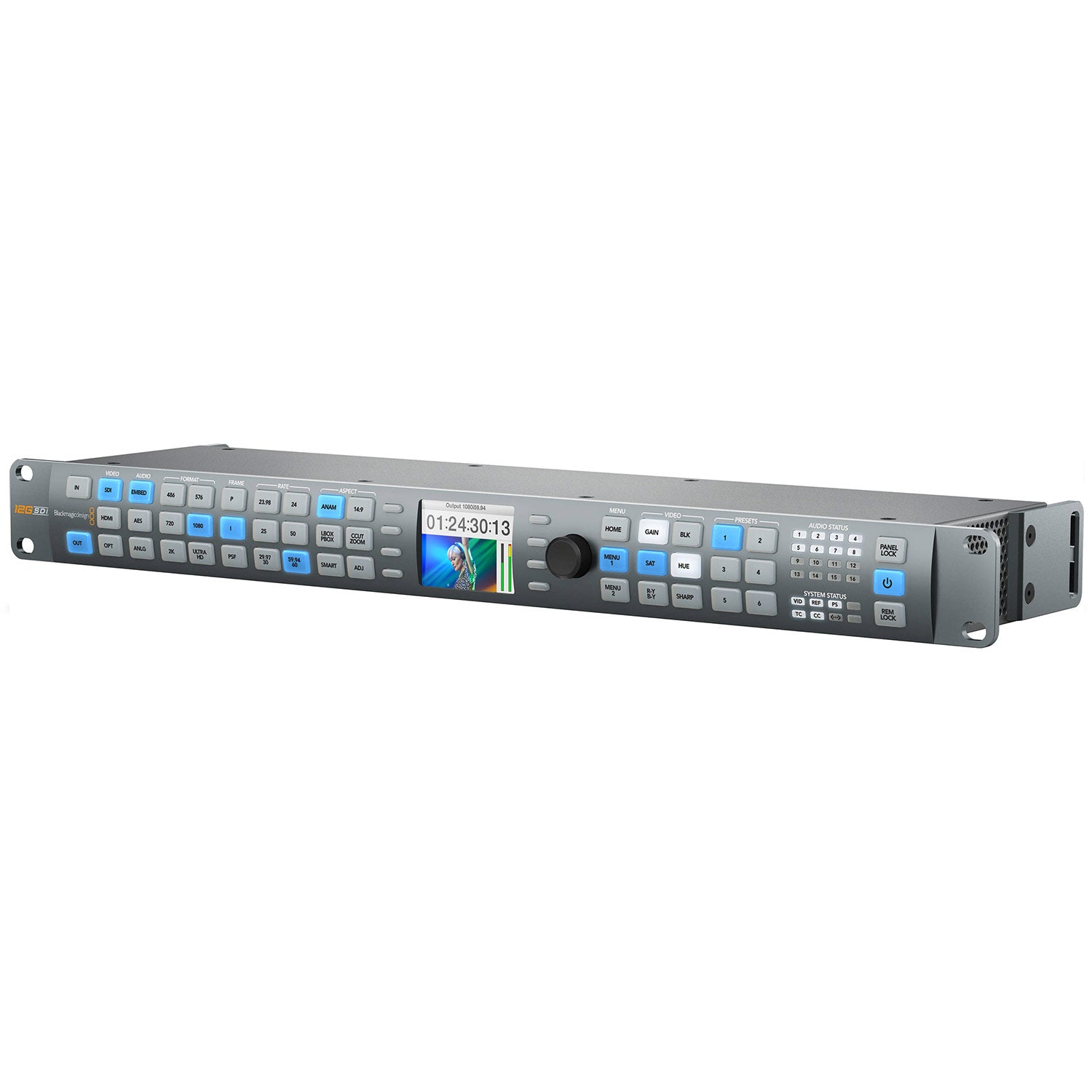

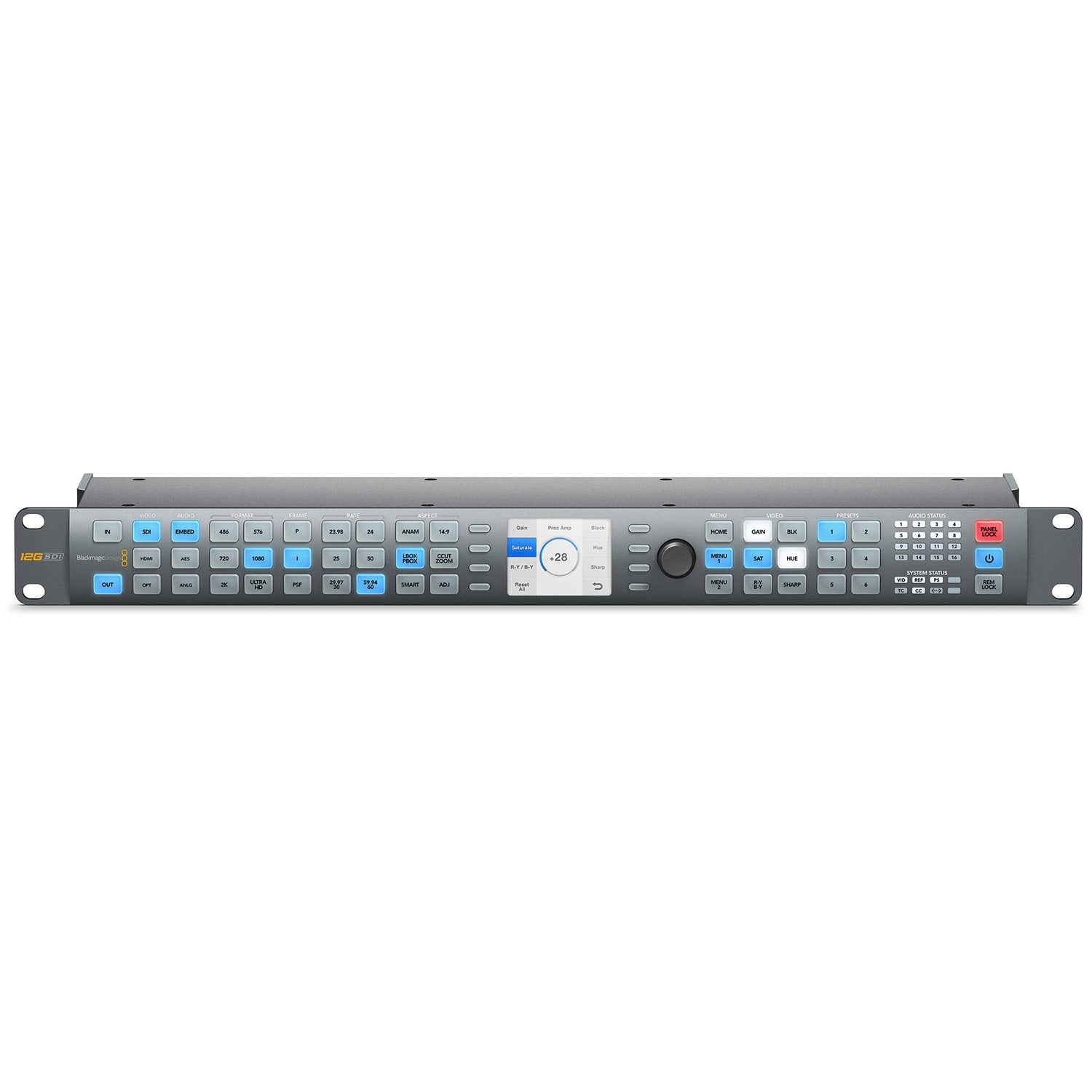

Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!
Teranex converters are the ultimate SD, HD and Ultra HD standards converters, and give you the quality and speed mandated by broadcasters worldwide. You can choose from models that give you up to a massive 1089 conversions, a wide range of broadcast connections, low latency processing, HDMI loop through and more! You get up, down, cross and standards conversions between virtually all SD, HD and Ultra HD formats and frame rates, including 3:2 cadence removal and insertion! Featuring advanced patented algorithms, Teranex converters give you visually transparent, high quality conversions in full 10-bit quality, complete with audio, closed captions, timecode and more!

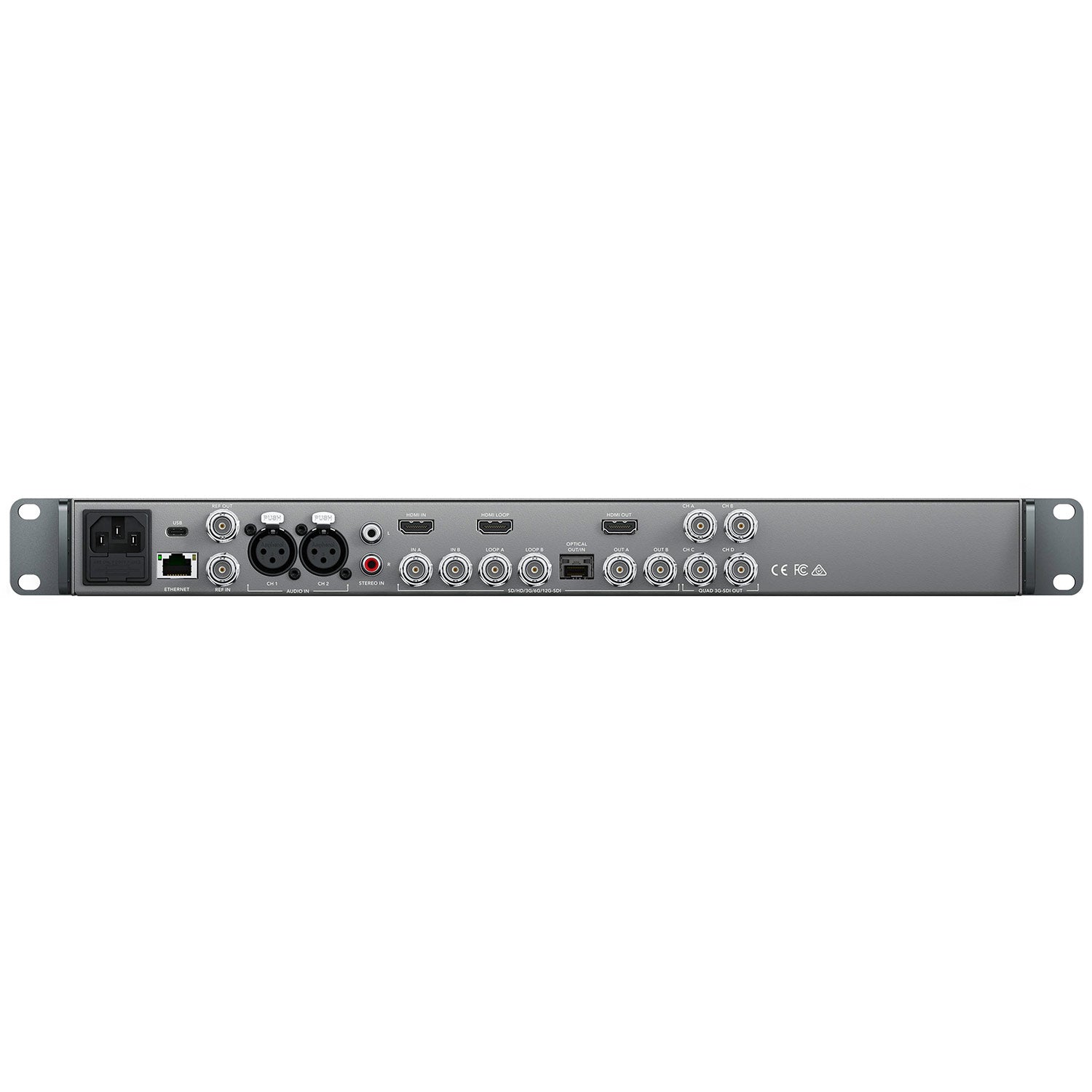

|SDI Video Input||1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
|SDI Video Input Loop||1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
|SDI Video Output||1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable duplicated output or dual link output for 4:2:2 3G or 6G Ultra HD.
|Quad SDI Video Output||4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link output when processor output video format is Ultra HD . For other output formats, these connectors will supply four additional replicated SDI outputs.|
|HDMI Input||1x HDMI 2.0 type A connector.|
|HDMI Loop Output||1x HDMI 2.0 type A connector.|
|HDMI Output||1x HDMI 2.0 type A connector.|
|SDI Audio Input||16 channels in SD, HD, 3G HD, 2K and Ultra HD.|
|SDI Audio Output||16 channels in SD, HD, 3G HD, 2K and Ultra HD.|
|HDMI Audio Input||8 channels in SD, HD, 3G HD, 2K and Ultra HD.|
|HDMI Audio Output||8 channels in SD, HD, 3G HD, 2K and Ultra HD.|
|Optical Fiber Connection (optional)||1x SMPTE optical fiber SFP socket.|
|Optical Fiber Video Input||1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.|
|Optical Fiber Video Output||1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.|
|Optical Fiber Audio Input||16 channels in SD, HD, 3G HD, 2K and Ultra HD.|
|Optical Fiber Audio Output||16 channels in SD, HD, 3G HD, 2K and Ultra HD.|
|Analog Audio Input||2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.
|AES/EBU Digital Audio Input||2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)|
|Dolby Support Built-In||Dolby AC-3 pass through in all conversions. Dolby E pass through except during video frame rate conversions.|
|Timecode Input||Support for VITC/ATC. No support for LTC.|
|Timecode Output||Support for VITC/ATC. No support for LTC.|
|Multi Rate Support||SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.|
|Reference Input||1x BNC - Black Burst in SD or Tri-level sync in HD.|
|Reference Output||1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.|
|Computer Interface||1 x USB type C port for software updates.
1 x RJ45 Gigabit Ethernet for remote control and configuration.
|Processor Interface||Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.|
|SD Format Support||525i59.94 NTSC, 625i50 PAL|
|1.5G-SDI HD Format Support||720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
|3G-SDI HD Format Support||1080p50, 1080p59.94, 1080p60 levels A and B|
|2K Format Support||2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF
|Ultra HD Format Support||2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60|
|SDI Compliance||SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M|
|SDI Metadata Support||VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.|
|Audio Sampling||Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD.|
|Color Space||REC 601, REC 709|
|SDI Format Support||525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.|
|Aspect Ratio Conversion||Real time variable and fixed aspect ratio conversions.|
|Real Time Video Processing||Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control|
|Low Latency Processing||Real time processing with 2 frame latency, available for select format conversions.|
|Format Conversion||Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion.|
|Colorspace Conversion||Hardware based real time|
|Still Store||Capture a video frame into non-volatile memory from the current input signal.|
|Freeze Frame||Temporarily freeze incoming live video.|
|Test Patterns||SMPTE 75% Bars; full-field color bars 75%; convergence grid; multi-burst; black.|
|Output Switching||Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video.|
|Software Control||Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac OS X|
|Internal Software Upgrade||Via USB type C using the included Teranex Setup application|
|Operating Systems||Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
|Physical Specifications||19 in W x 1.75 in H x 5 in D|
|Power Supply||1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz|
|Typical Power Consumption||42 watts|
|Environmental Specifications||Operating Temperature 5° to 50° C (41° to 122° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
|What's Included||Teranex AV
SD card with software and manual
2 x Bumper guards with 4x M4 screws
|Warranty||12 Month Limited Manufacturer's Warranty.|
