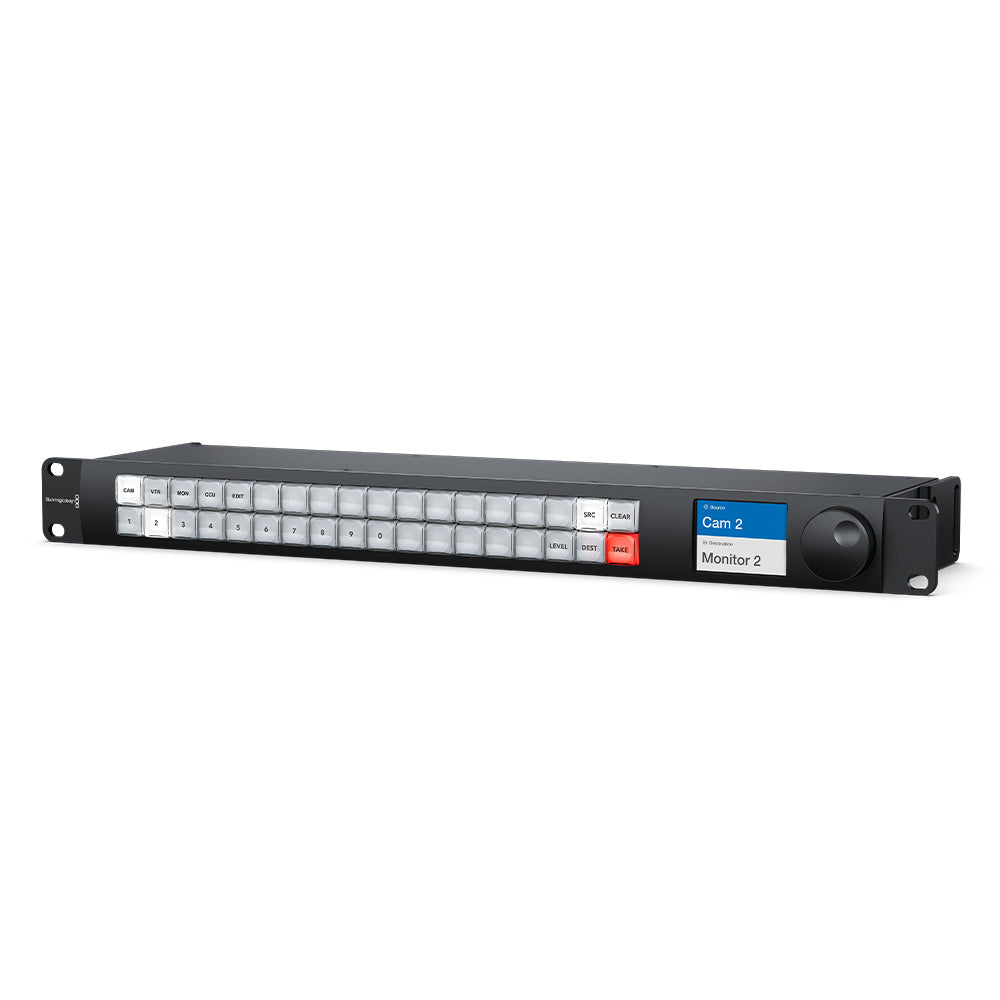

Blackmagic Design Videohub Master Control Pro - Video Switching Controller
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection.
For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.

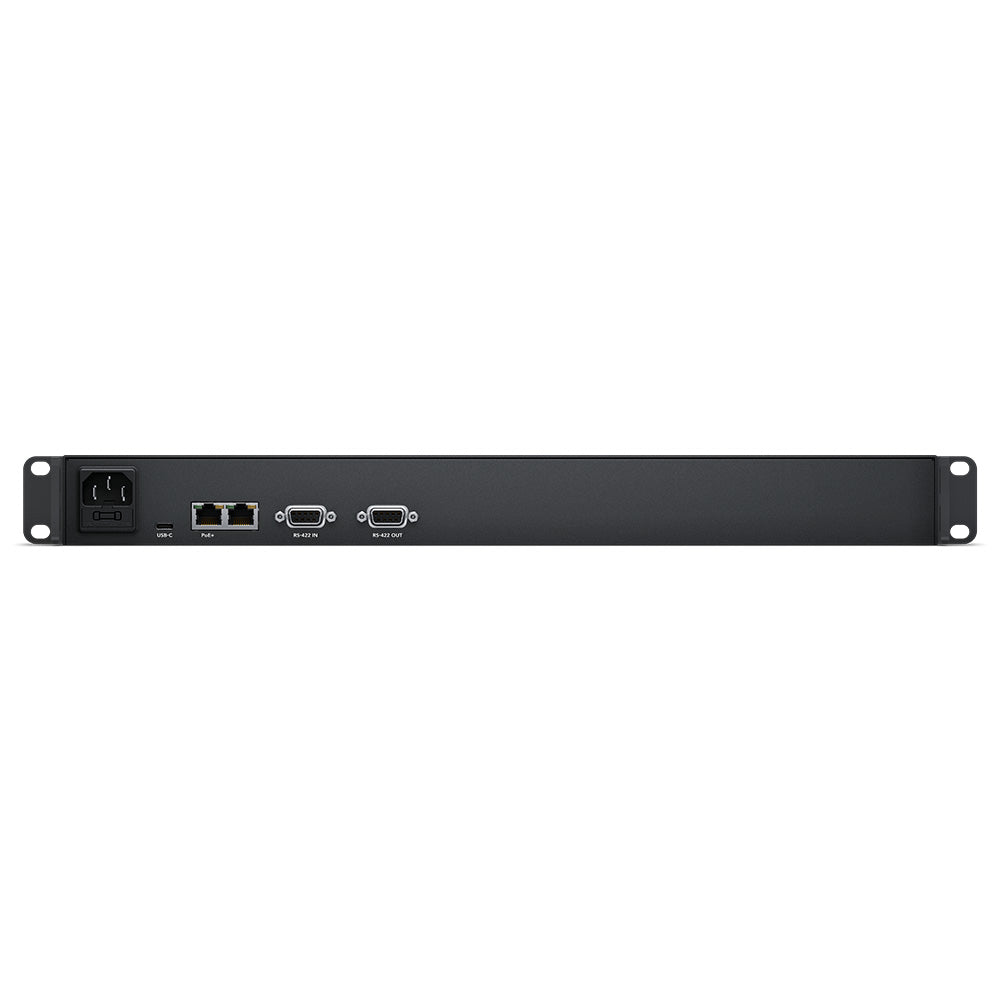

| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 - 240 AC |
| Hardware Control | 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen. |
| Internal Software | Internal Software upgrade via included firmware updater application via USB or ethernet. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Physical Installation | 1 rack unit size. Less than 3 inches deep. |
| Button Configuration | Included free for Windowsª and Macª via USB 2.0 high speed (480Mb/s) interface. |
| Power Fail Requirements | Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. |
| Power Supply | Internal 100 - 240 V AC |
| Physical Specifications | 18.97 in W x 4.64 in D x 1.74 in H |
| Weight | 2.2 lb |
| Operating temperature | 0¡ to 40¡ C (32¡ to 104¡ F) |
| Storage temperature | -20¡ to 45¡ C (-4¡ to 113¡ F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Videohub Master Control Pro |
| Warranty | 12 Months Limited Warranty |
When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection.
For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.
| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 - 240 AC |
| Hardware Control | 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen. |
| Internal Software | Internal Software upgrade via included firmware updater application via USB or ethernet. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Physical Installation | 1 rack unit size. Less than 3 inches deep. |
| Button Configuration | Included free for Windowsª and Macª via USB 2.0 high speed (480Mb/s) interface. |
| Power Fail Requirements | Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. |
| Power Supply | Internal 100 - 240 V AC |
| Physical Specifications | 18.97 in W x 4.64 in D x 1.74 in H |
| Weight | 2.2 lb |
| Operating temperature | 0¡ to 40¡ C (32¡ to 104¡ F) |
| Storage temperature | -20¡ to 45¡ C (-4¡ to 113¡ F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Videohub Master Control Pro |
| Warranty | 12 Months Limited Warranty |
