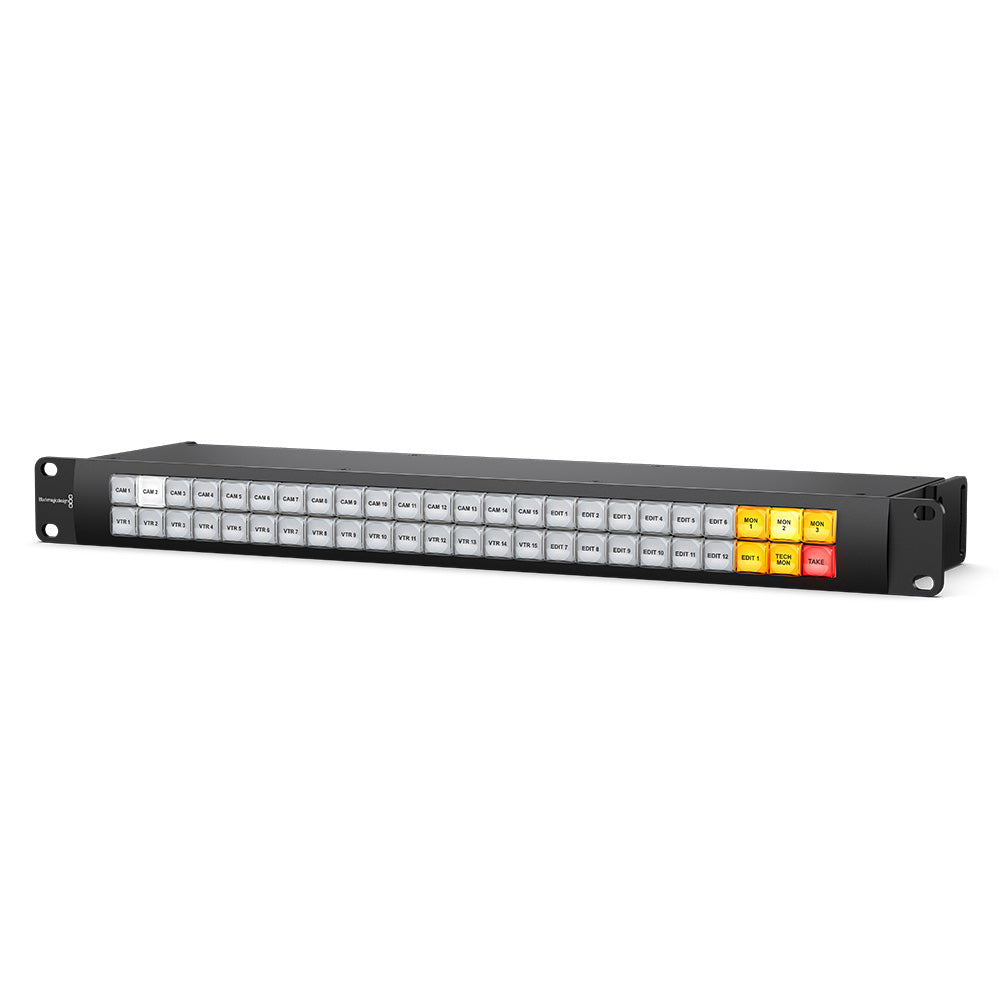

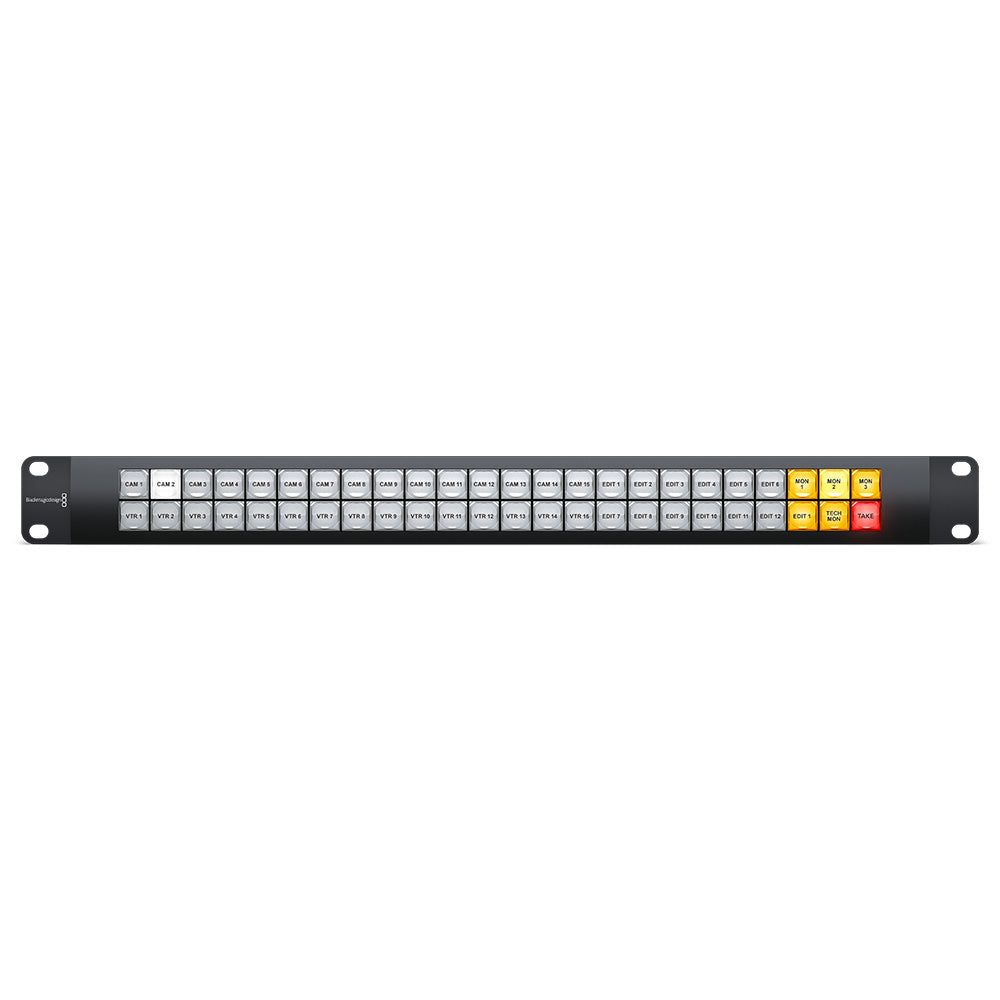

Blackmagic Design Videohub Smart Control Pro - 48-Button Controller
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!
For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.

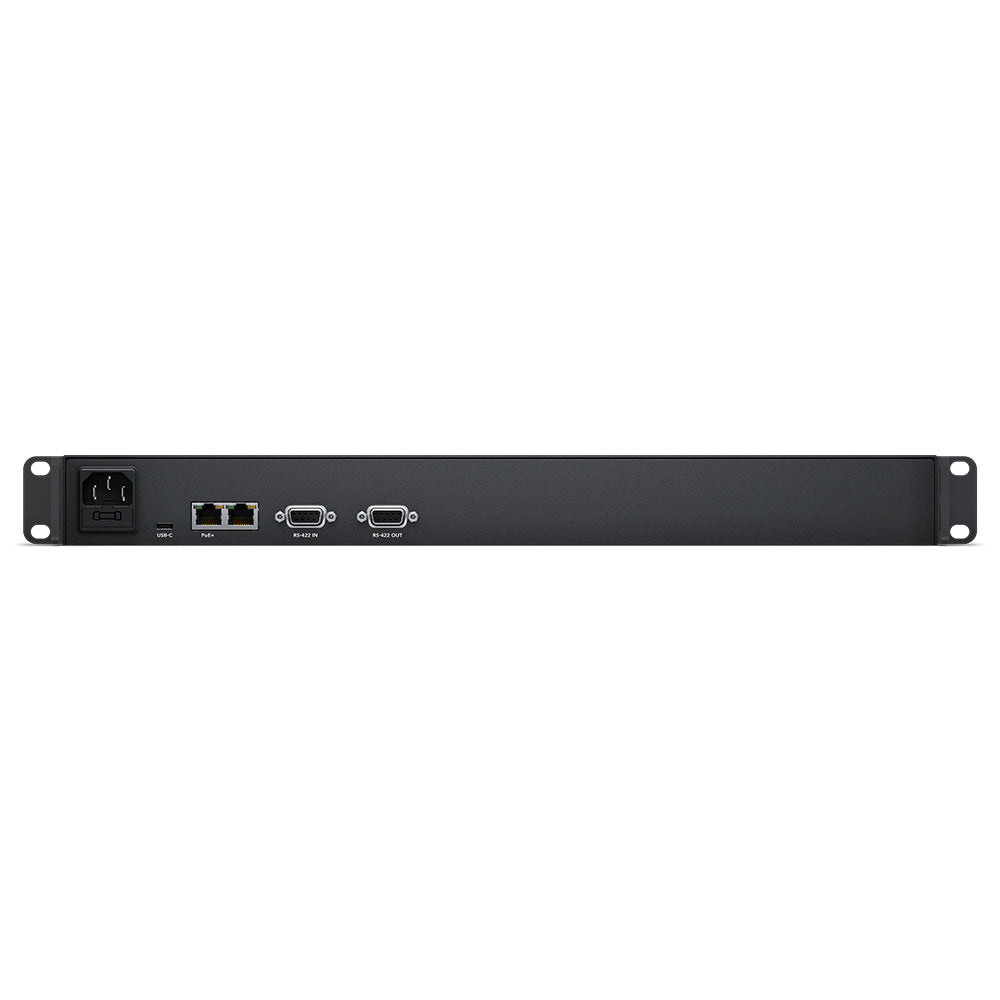

| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 - 240 AC |
| Macro Capability | Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands. |
| Hardware Control | 48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network. |
| Software | Internal Software upgrade via included firmware updater application via USB. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Physical Installation | 1 rack unit size. Less than 3 inches deep. |
| Button Configuration | Included free for Windowsª and Macª via USB 2.0 high speed (480Mb/s) interface. |
| Power Fail Protection | Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. |
| Power Supply | Internal 100 - 240 V AC |
| Physical Specifications | 18.97 in W x 4.41 in D x 1.74 in H |
| Weight | 2.2 lb |
| Storage temperature | -20¡ to 45¡ C (-4¡ to 113¡ F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Videohub Smart Control Pro |
| Warranty | 12 Months Limited Warranty. |
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!
For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.
| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 - 240 AC |
| Macro Capability | Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands. |
| Hardware Control | 48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network. |
| Software | Internal Software upgrade via included firmware updater application via USB. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Physical Installation | 1 rack unit size. Less than 3 inches deep. |
| Button Configuration | Included free for Windowsª and Macª via USB 2.0 high speed (480Mb/s) interface. |
| Power Fail Protection | Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. |
| Power Supply | Internal 100 - 240 V AC |
| Physical Specifications | 18.97 in W x 4.41 in D x 1.74 in H |
| Weight | 2.2 lb |
| Storage temperature | -20¡ to 45¡ C (-4¡ to 113¡ F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Videohub Smart Control Pro |
| Warranty | 12 Months Limited Warranty. |
