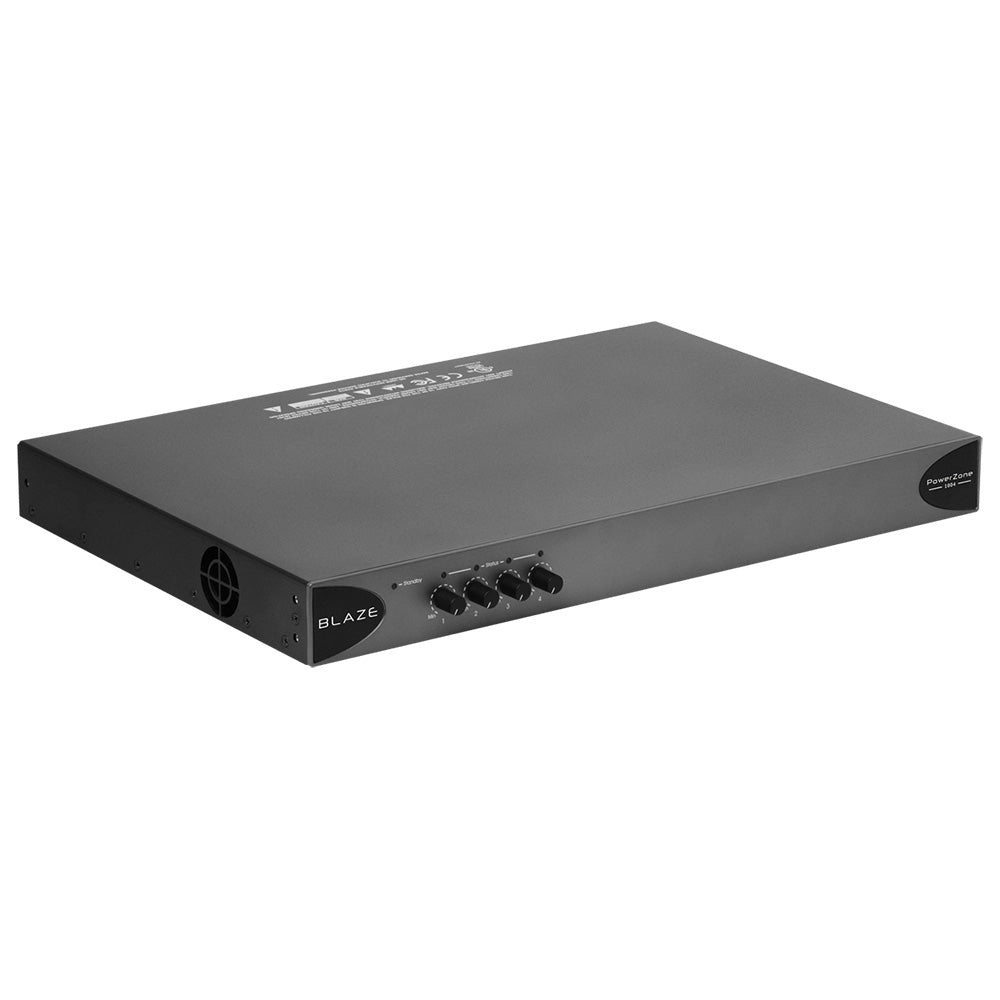

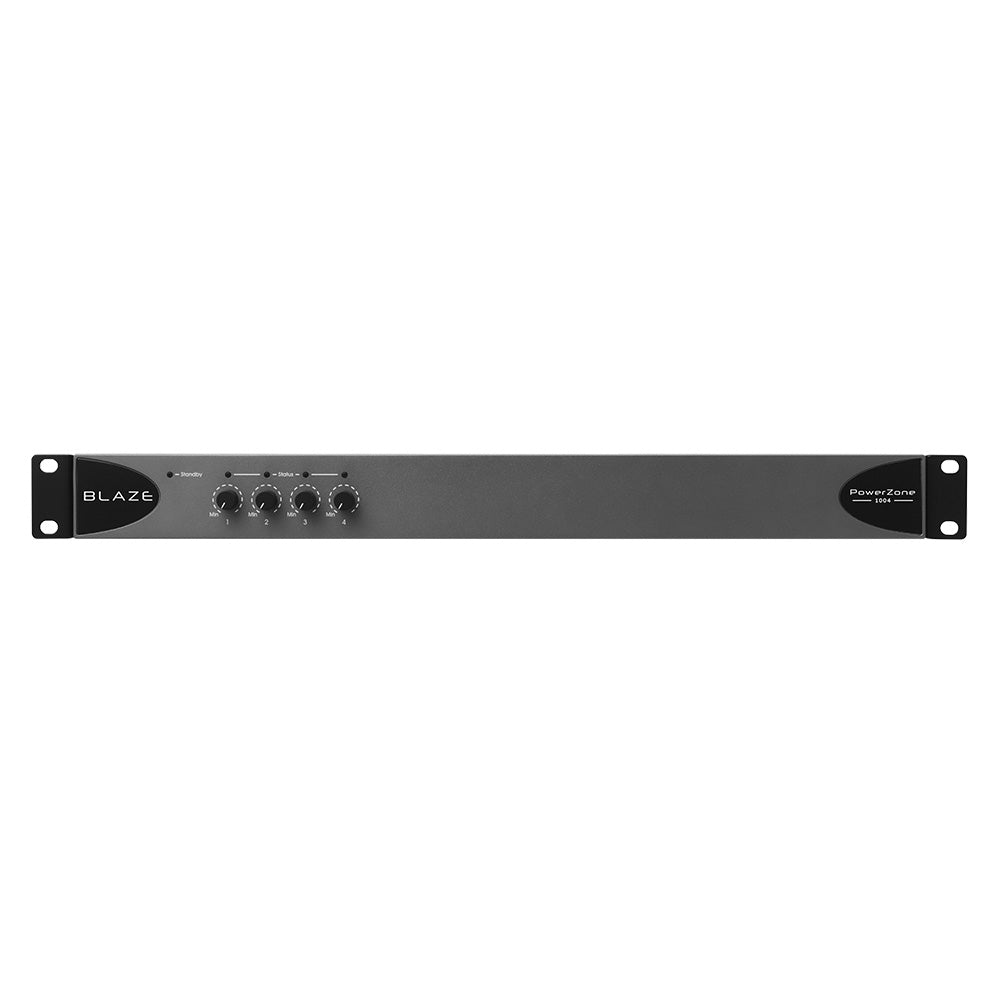

Blaze Audio PowerZone 1004 - 4 x 250W Install Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PowerZone 1004 is 4 x 250 Watt power amplifier in a full rack, 1U format. It drives both low impedance (4Ω to 16Ω) and constant voltage (70V/100V) loudspeaker loads.
Each output channel can be independently configured to drive either Lo-Z or Hi-Z loads – making it so much more flexible and versatile than other full rack products.
Like all PowerZone products, this reliable, high-performance amplifier has a 5-year warranty.
Features:
- Configure any output channel in Low or High impedance – 4 x 250W

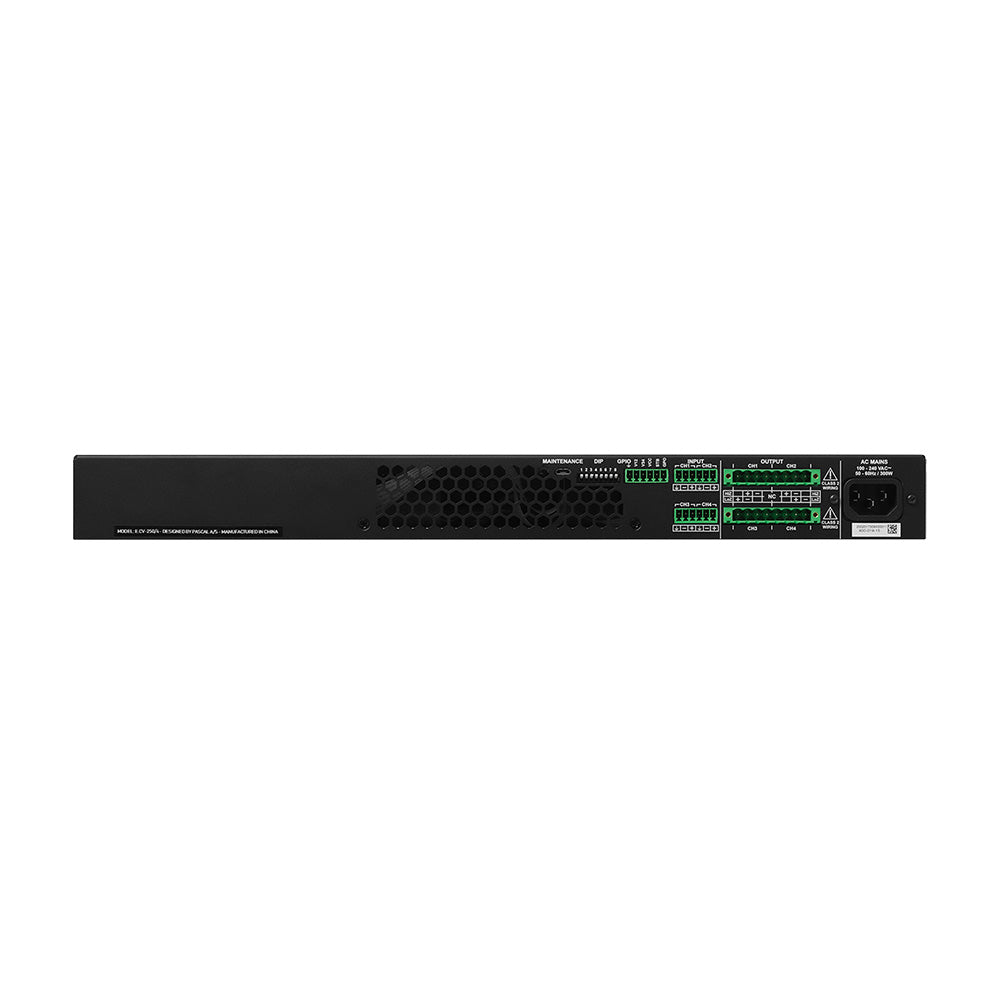

- DIP Switches allow you to configure on site – with GPIO connectors for external controllers
- Class leading energy efficiency and long-term low cost of ownership
- Powered by Pascal UMAC™ Class-D technology
Possible Applications:
- Bars and Cafes
- Restaurants
- Retail stores
- Fitness Centres
- Hotels and Education Sites
- Corporate
- House of Worship
| Total System Power | 1000 W |
| Output Power @ 4/8½ | 4 x 250 W |
| Output Power @ 70/100V | 4 x 250 W |
| Powershare (up to) Across all channels |
N/A |
| Power Consumption | 300W |
| Dimensions | 44.5 x 440 x 292 mm (1.75 x 17.32 x 11.50 in) |
| Weight | 3.6 kg (7.9 lbs) |
| Output Circuitry | UMACª Class D - full bandwidth PWM modulator with ultra-low distortion |
| Output Voltage | 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded) |
| Signal To Noise-Ratio | Over 100 dB (A-weighted, 20 Hz - 20 kHz, 8 ½ load) |
| THD+N (typical) | Under 0.05 % (20 Hz - 20 kHz, 8 ½ load, 3 dB below rated power) |
| Frequency Response | 20 Hz - 20 kHz (+0/-0.25 dB (8 ½ load, 3 dB below rated power) |
| Protection Circuits | Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
| Power Supply | URECª universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter |
| Operating Voltage/Frequency | Universal Mains, 100-240V, 50-60Hz |
| Standby Consumption | 0.5 W (Energy Star / ErP 1275/2008/EC compliant) |
| Optional Accessories | 2x Rack ears (supplied with PowerZone 1004) 1x 1/2 rack plate extension 2x 1/2 rack mounting 2x Rear supports |
| Power Ratings | 1% THD @ 120VAC and 230VAC |
