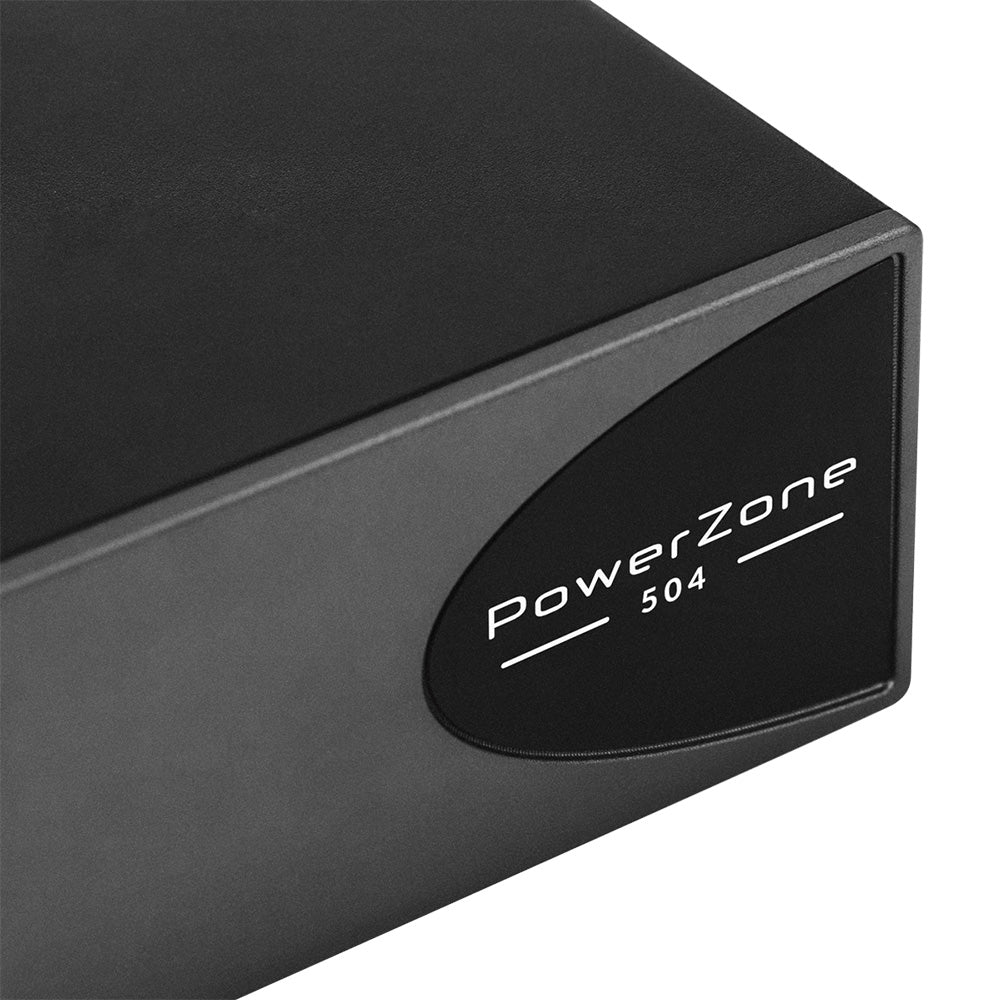

Blaze Audio PowerZone 504 - Compact 4 x 125W Install Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

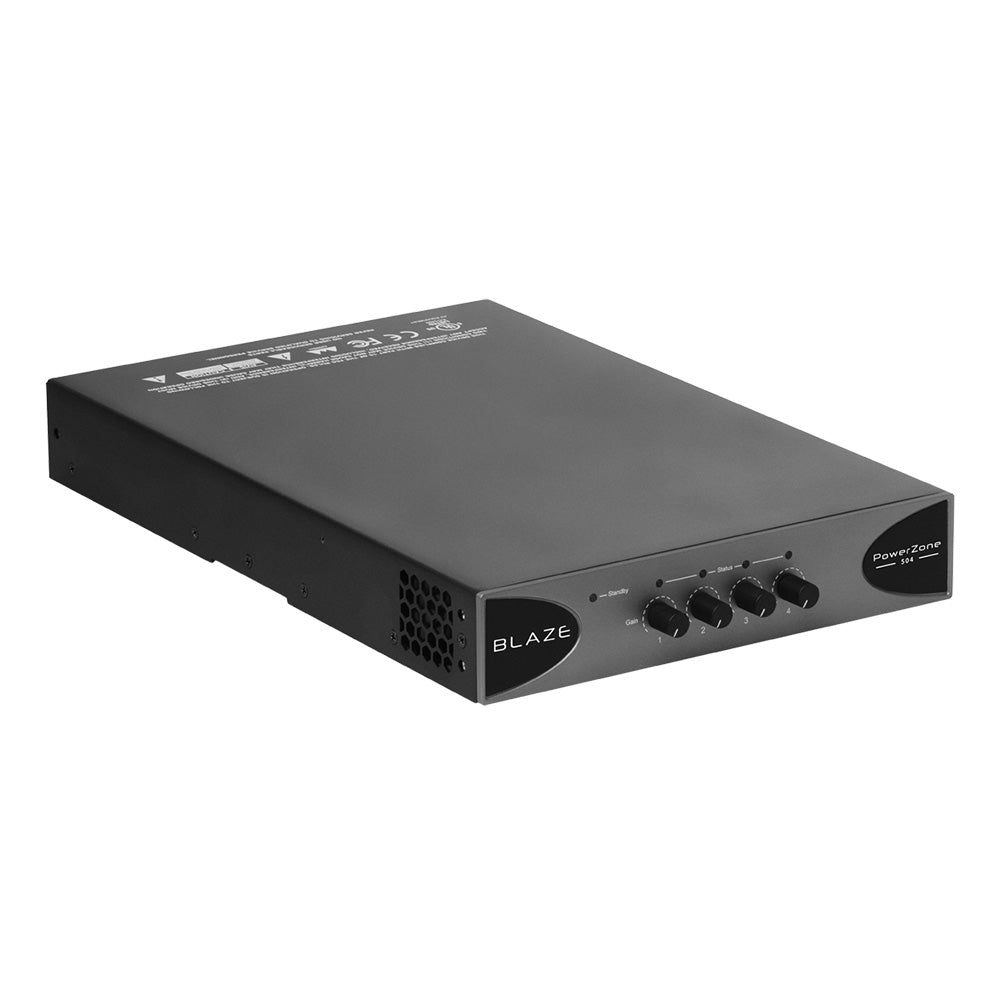

The PowerZone 504 is a 4 x 125 Watt power amplifier in a half width, 1U format. It drives both low impedance (4Ω to 16Ω) and constant voltage (70V/100V) loudspeaker loads. Each output channel can be independently configured to drive either Lo-Z or Hi-Z and automatic power sharing enables the total 500 Watts to be shared proportionately across each pair of output channels (so 4 x 125W/channel or 2 x 250W/channel.
With a small form factor of just 22 cm x 33 cm – it’s one of the most compact 4 channel amplifiers in its power class.
Features:
- Configure any output in Low or High impedance – share total power as you need it

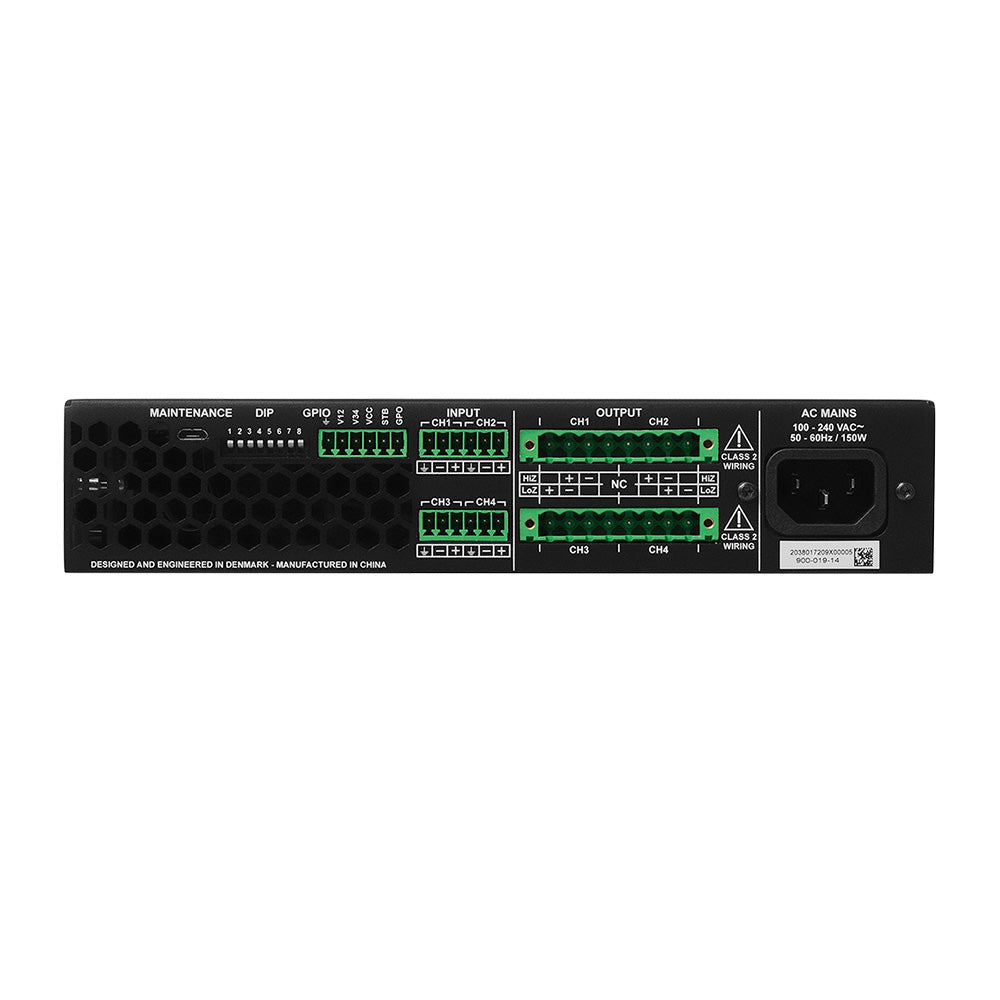

- DIP Switches allow you to configure on site – with GPIO connectors for external controllers
- Ultra-compact form factor means it can be installed in spaces where others cannot
- Class leading energy efficiency and long-term low cost of ownership
- Powered by Pascal UMAC™ Class-D technology
Possible Applications:
- Bars and Cafes
- Restaurants
- Retail stores
- Fitness Centres
- Hotels and Education Sites
- Corporate
- House of Worship
| Total System Power | 500 W |
| Output Power @ 4/8½ | 4 x 125 W |
| Output Power @ 70/100V | 4 x 125 W |
| Powershare (up to) Across all channels |
2 x 250 W |
| Power Consumption | 150W |
| Dimensions | 44.5 x 220 x 337 mm (1.75 x 8.66 x 13.27 in) |
| Weight | 2.4 kg (5.3 lbs) |
| Output Circuitry | UMACª Class D - full bandwidth PWM modulator with ultra-low distortion |
| Output Voltage | 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded) |
| Signal To Noise-Ratio | Over 100 dB (A-weighted, 20 Hz - 20 kHz, 8 ½ load) |
| THD+N (typical) | Under 0.05 % (20 Hz - 20 kHz, 8 ½ load, 3 dB below rated power) |
| Frequency Response | 20 Hz - 20 kHz (+0/-0.25 dB (8 ½ load, 3 dB below rated power) |
| Protection Circuits | Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
| Power Supply | URECª universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter |
| Operating Voltage/Frequency | Universal Mains, 100-240V, 50-60Hz |
| Standby Consumption | 0.5 W (Energy Star / ErP 1275/2008/EC compliant) |
| Optional Accessories | 2x Rack ears (supplied with PowerZone 1004) 1x 1/2 rack plate extension 2x 1/2 rack mounting 2x Rear supports |
| Power Ratings | 1% THD @ 120VAC and 230VAC |
