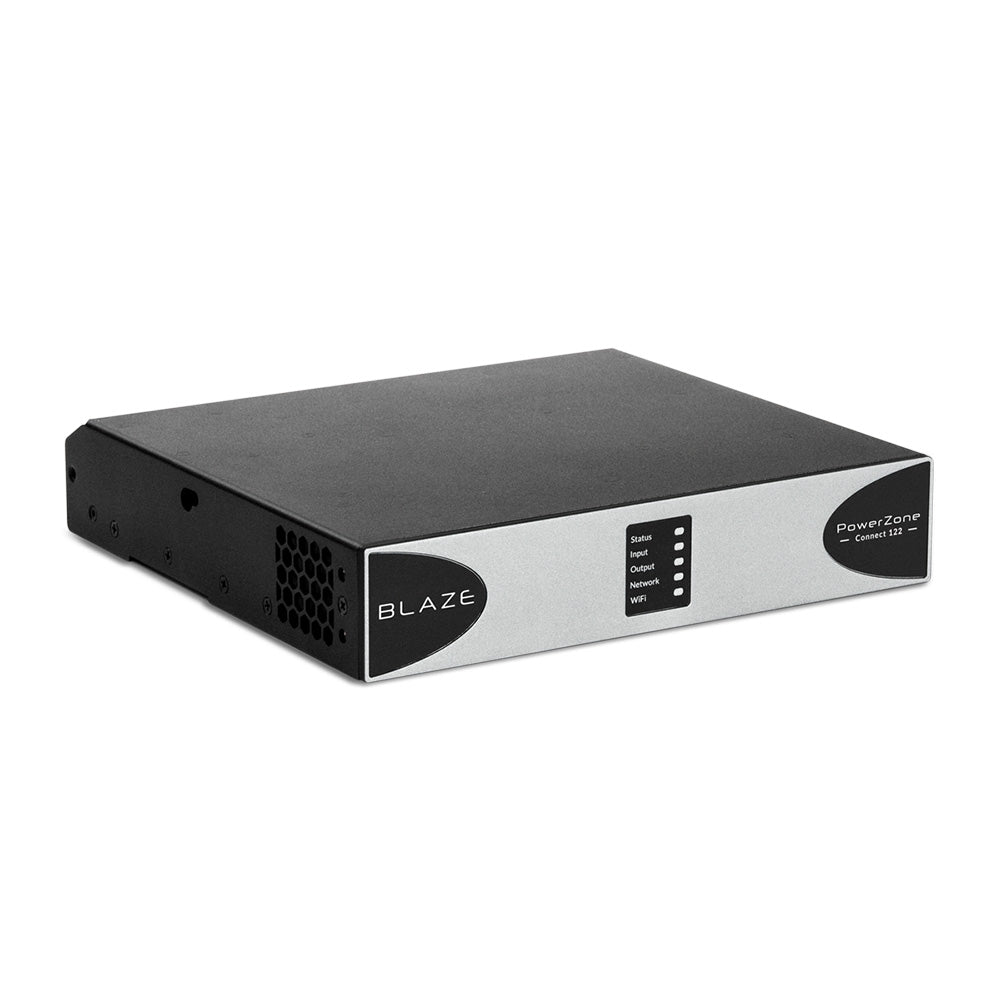

Blaze Audio PowerZone Connect 122 - Compact 2 x 60W Install Power Amplifier

The PowerZone Connect 122 is a compact DSP amplifier in a half rack, 1U format. It's network-connected, giving wired or wireless access to the PowerZone Control web app's system setup and audio configuration menu. From here you can manage inputs/outputs, control sound zones and access professional tuning settings – helping to achieve impressive sound in the shortest time.

It can drive both conventional low impedance (4 ohm to 16 ohm) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers. With four analogue inputs, and one stereo digital input, it has flexible output options – 2 x 60W in Lo-Z mode and 1 x 125W in Hi-Z mode. Automatic power sharing technology enables total available power to be shared proportionately between the outputs.

Features:

• DSP – full matrix DSP embedded and controlled via TCP/IP
• Targeted Constant Voltage – Optimal hybrid of Lo-Z and Hi-Z performance
• Master / Slave functionality – S/PDIF link to multiple amps
• Power share – Support power sharing up to 250W per channel
• Market proven reliability – Based on Pascal’s proven technologies
• UREC™ universal power supply with PFC

Possible Applications:

• Bars and Cafes
• Restaurants
• Retail stores
• Fitness Centres
• Hotels and Education Sites
• Corporate
• House of Worship

PowerZone Control
You can set up and control any PowerZone Connect DSP amplifier using your phone, tablet, or PC with the smart PowerZone Control Web App.

System integrators now have the freedom to manage even the most complex install projects with our dedicated PowerZone Control web app. Configure everything from your phone, or any other device of your choice. Simply connect through the amplifier’s built-in Wi-Fi, or direct via the network port.

PowerZone Control makes life easier - thanks to its intuitive interface giving access first to the basic system set up, and then the advanced configuration and professional tuning settings. It allows you to create the most impressive multizone sound system, in the least amount of time.
