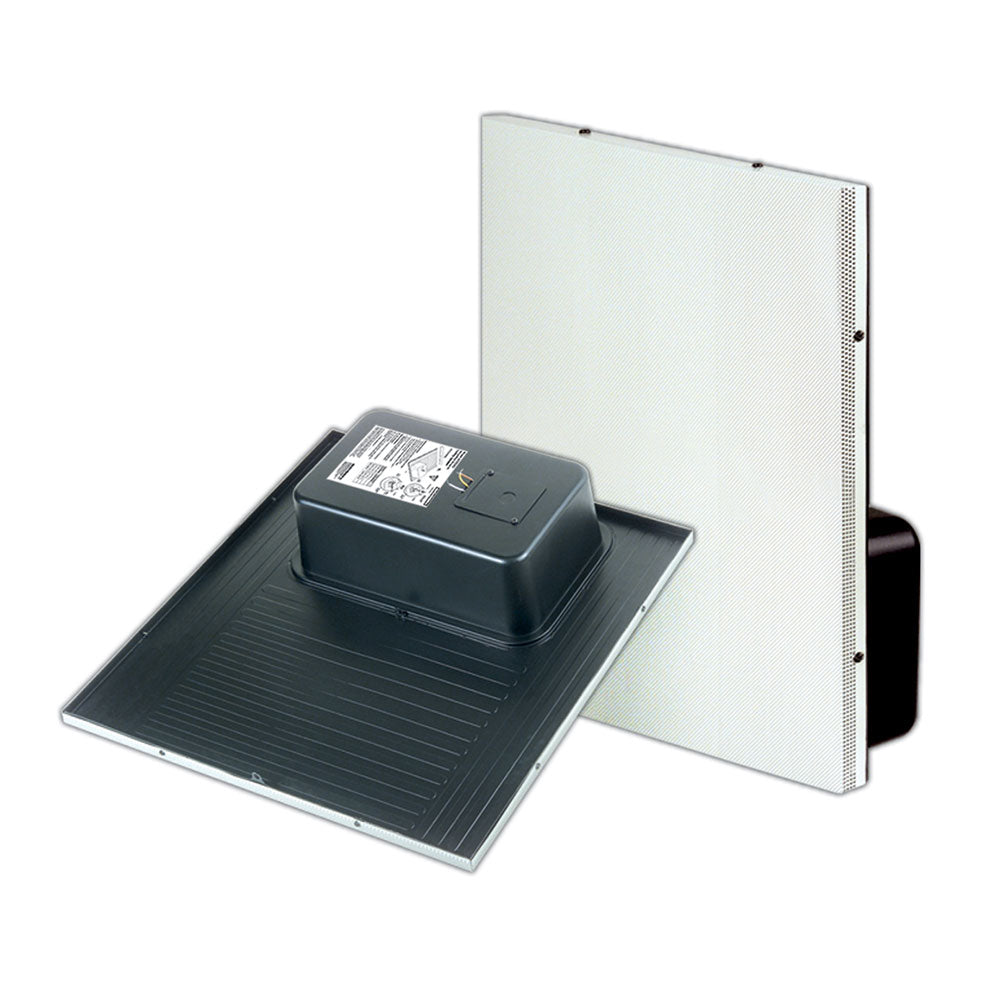

Bogen ACD2X2 Active Drop-In Ceiling Speaker (Off White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
Bogen's ACD2X2 Drop-In Ceiling Speaker is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost. The ACD2X2 is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles or requiring the use of tile support rails. The ACD2X2 can also be easily installed in 2' x 4' ceiling grids - just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- Self-contained 1-watt amplifier
- 8'' main cone with secondary high-frequency cone
- Available in off-white and bright white ("U" versions) grille finish
- Recessed Volume Control (front-mounted)
- Complies with Requirements of UL-2043
- Support Rail Crossbar (included)
- Seismic attachment points
| Frequency Response | 95 Hz - 12 kHz |
| Max. SPL @ 1W / 1m | 94 dB |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Maximum Amplifier Output | 1W |
| Typical Operational Current | 1 CU (50 mA) |
| Input Impedance | 2000 ohms |
| Typical Input Sensitivity | 125 mV rms |
| Supply Voltage | 24V DC |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 23-7/8" W x 5" H x 23-7/8" D |
| Product Weight | 12 lb. |
Priced individually, but sold in pairs.
Bogen's ACD2X2 Drop-In Ceiling Speaker is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost. The ACD2X2 is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles or requiring the use of tile support rails. The ACD2X2 can also be easily installed in 2' x 4' ceiling grids - just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place
Features:
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed Back Can
- Self-contained 1-watt amplifier
- 8'' main cone with secondary high-frequency cone
- Available in off-white and bright white ("U" versions) grille finish
- Recessed Volume Control (front-mounted)
- Complies with Requirements of UL-2043
- Support Rail Crossbar (included)
- Seismic attachment points
| Frequency Response | 95 Hz - 12 kHz |
| Max. SPL @ 1W / 1m | 94 dB |
| Dispersion @ 2 kHz (6 dB down) | 100 deg. |
| Cone Material / Surround | Treated paper |
| Cones | 8" main cone with secondary high frequency cone |
| Maximum Amplifier Output | 1W |
| Typical Operational Current | 1 CU (50 mA) |
| Input Impedance | 2000 ohms |
| Typical Input Sensitivity | 125 mV rms |
| Supply Voltage | 24V DC |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 23-7/8" W x 5" H x 23-7/8" D |
| Product Weight | 12 lb. |
