Bogen AH15A Self-Amplified 15-Watt Paging Horn


  • Dale #:

    BOGE-AH15A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AH5A and AH15A metal horn speakers are rugged, self-contained one-way amplified paging horn assemblies with screwdriver-adjustable volume controls. Their sturdy, weatherproof, all-aluminum construction make them ideal for use in industrial plants, warehouses, schools, construction sites, tran... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

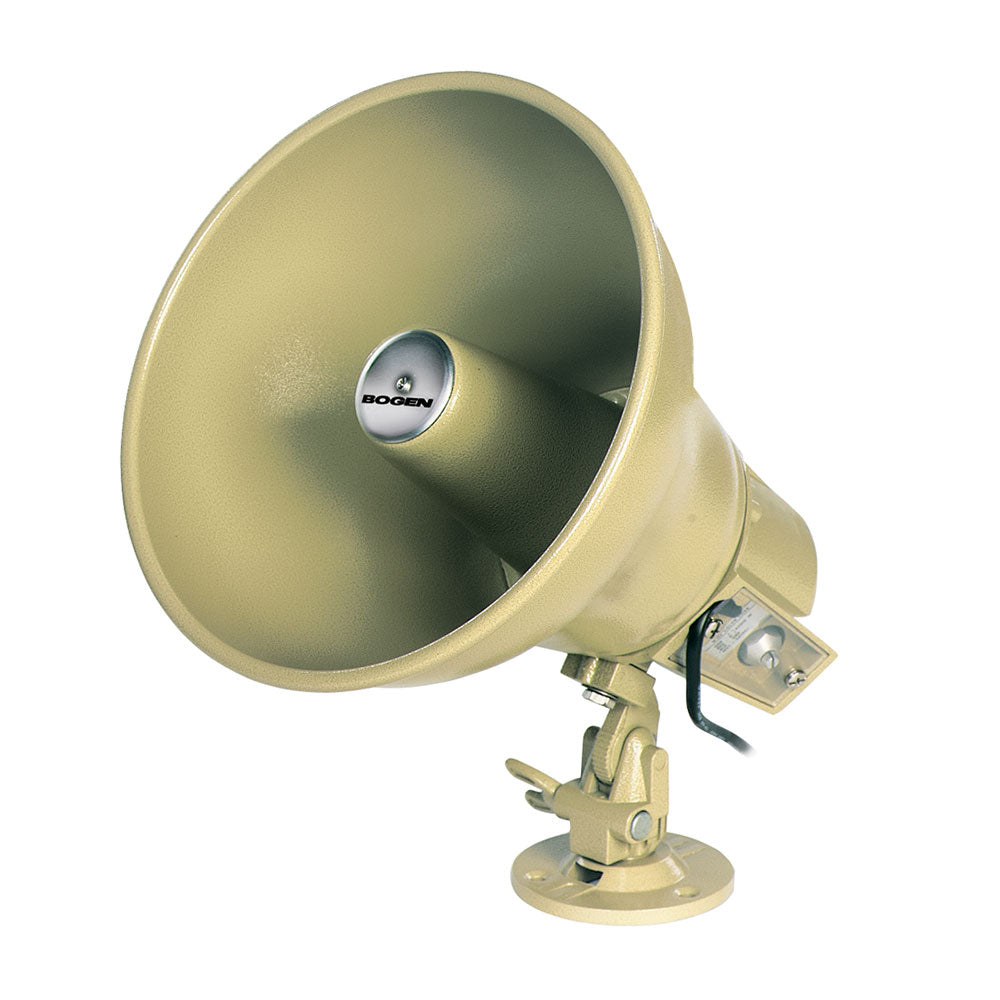

The AH5A and AH15A metal horn speakers are rugged, self-contained one-way amplified paging horn assemblies with screwdriver-adjustable volume controls. Their sturdy, weatherproof, all-aluminum construction make them ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreation areas. Universal mounting brackets permit adjustment in vertical and horizontal planes; banding slots are provided for ease in securing the horns to beams and pillars. Quick connections to audio and power sources are easily made with the supplied 4-conductor, color-coded cable. A plastic cover protects the volume control and provides cable strain relief.

Features:

  • 5- and 15-watt models with built-in amplifiers
  • Screwdriver-adjustable volume controls
  • Universal tilt-and-swivel mount
  • Banding slots easily secure horns to beams and pillars
  • 4-conductor, color-coded cable for quick connections to audio and power sources
  • Plastic cover protects volume control and provides cable strain relief
  • Weatherproof, all-aluminum housing
  • Self-aligning, field-replaceable diaphragm
  • Speaker and brackets have textured mocha enamel finish
  • Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
  • Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
  • Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)

More +

Product Specs

Typical Operating Current 18 CU (900 mA) (1 CU = 50 mA)
Maximum Output Power (RMS) 15W
Frequency Response 275 Hz to 14 kHz
Input Impedance 1000 ohms
Voltage 24V DC
Sensitivity (across 600 ohms) 58 mV
SPL @ 4' on axis with rated input @ 1 kHz 121 dB
Dispersion 110°
Dimensions 9" Diameter x 9-1/4" D
Product Weight 4 lb.
Finish Textured mocha enamel
