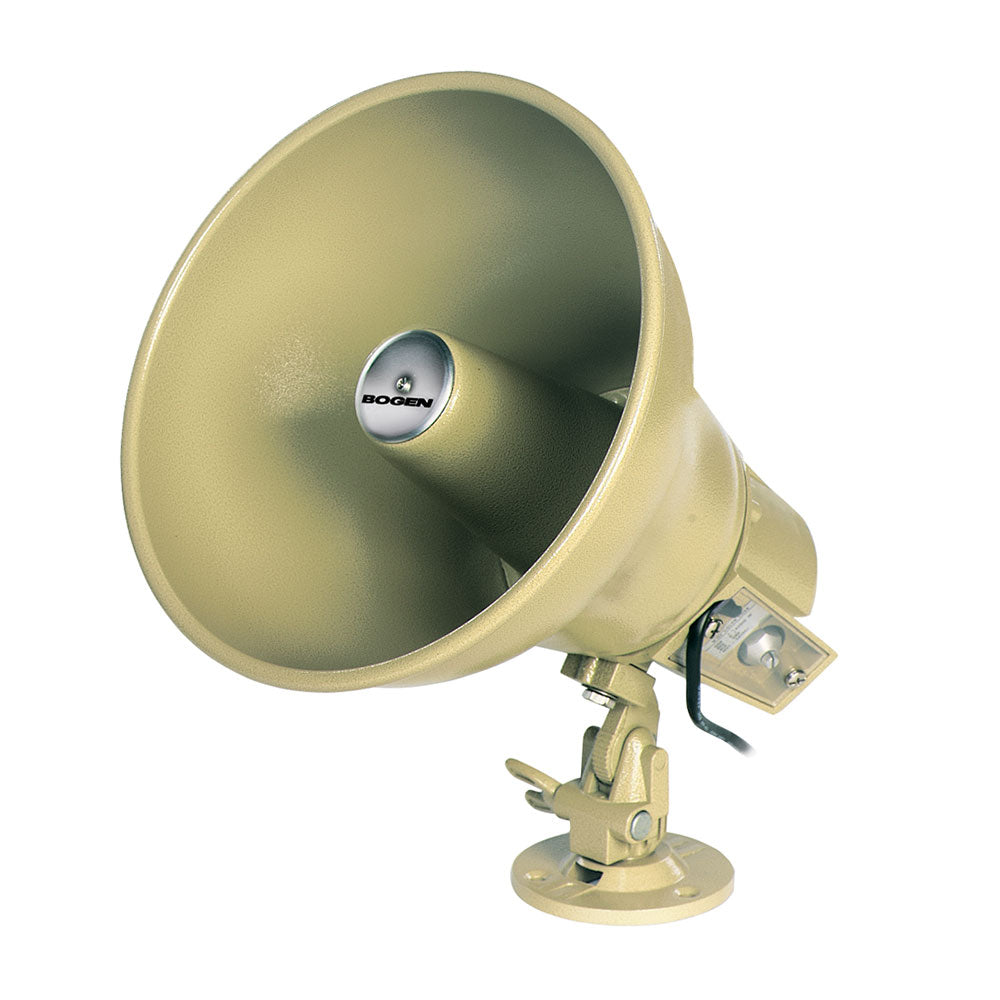

Bogen AH5A Self-Amplified 5-Watt Paging Horn


  • Dale #:

    BOGE-AH5A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The AH5A and AH15A metal horn speakers are rugged, self-contained one-way amplified paging horn assemblies with screwdriver-adjustable volume controls. Their sturdy, weatherproof, all-aluminum construction make them ideal for use in industrial plants, warehouses, schools, construction sites, tran... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AH5A and AH15A metal horn speakers are rugged, self-contained one-way amplified paging horn assemblies with screwdriver-adjustable volume controls. Their sturdy, weatherproof, all-aluminum construction make them ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreation areas. Universal mounting brackets permit adjustment in vertical and horizontal planes; banding slots are provided for ease in securing the horns to beams and pillars. Quick connections to audio and power sources are easily made with the supplied 4-conductor, color-coded cable. A plastic cover protects the volume control and provides cable strain relief.

Features:

  • 5- and 15-watt models with built-in amplifiers
  • Screwdriver-adjustable volume controls
  • Universal tilt-and-swivel mount
  • Banding slots easily secure horns to beams and pillars
  • 4-conductor, color-coded cable for quick connections to audio and power sources
  • Plastic cover protects volume control and provides cable strain relief
  • Weatherproof, all-aluminum housing
  • Self-aligning, field-replaceable diaphragm
  • Speaker and brackets have textured mocha enamel finish
  • Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
  • Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
  • Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)

More +

Product Specs

Typical Operating Current 6 CU (300 mA) (1 CU = 50 mA)
Maximum Output Power (RMS) 5W
Frequency Response 275 Hz to 14 kHz
Input Impedance 1000 ohms
Voltage 24V DC
Sensitivity (across 600 ohms) 32 mV
SPL @ 4' on axis with rated input @ 1 kHz 116 dB
Dispersion 110°
Dimensions 9" Diameter x 9-1/4" D
Product Weight 4 lb.
Finish Textured mocha enamel

More +
