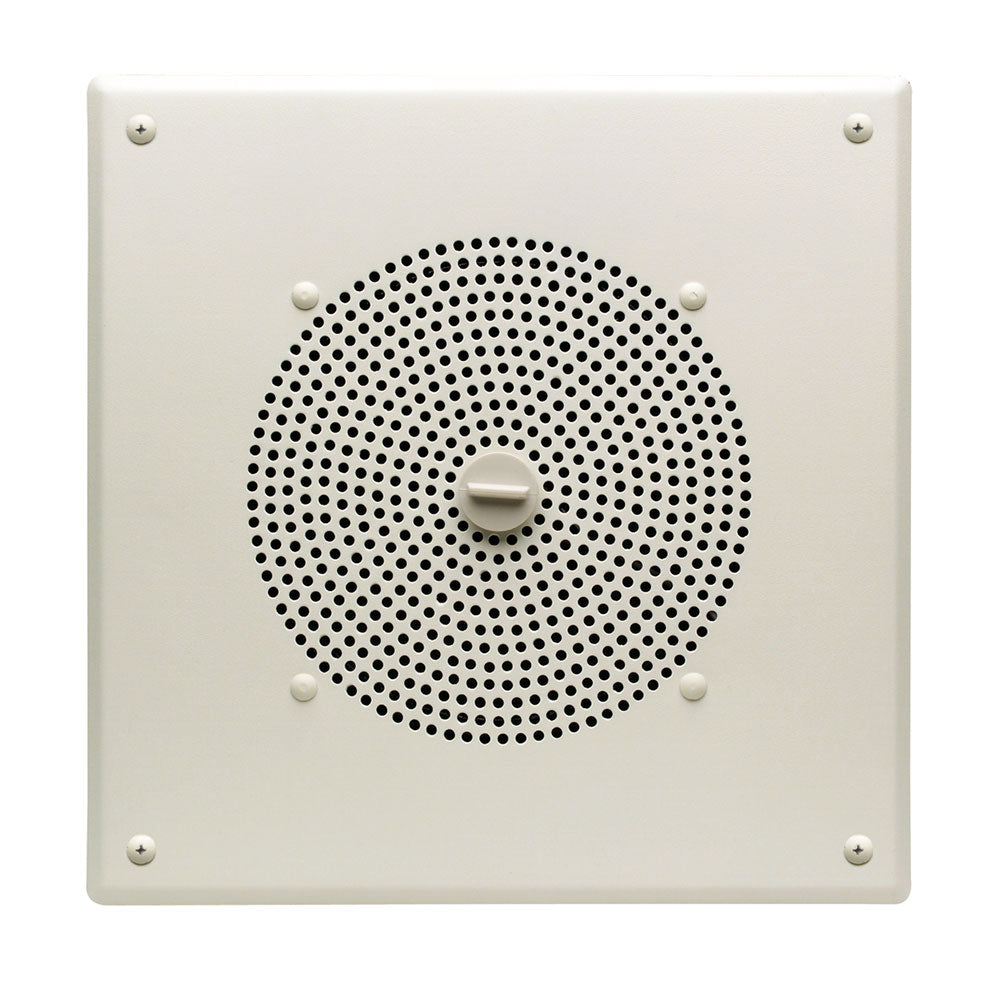

Bogen AMBSQ1 Self-Amplified Wall-Mount Paging Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bogen's AMBSQ1 and AMBSL1 speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker, built-in 1W amplifier, and volume control. The AMBSQ1 is suitable for ceiling or wall mounting. The AMBSL1 is designed primarily for wall mounting and its face is angled downward by 12.5 degrees. A detachable volume control knob on the grille allows individual adjustment of paging level at each speaker location.
Features:
- Rugged all-steel surface-mounted enclosure
- Full-range 8" cone speaker for excellent intelligibility
- Self-contained 1-watt amplifier
- Interfaces with standard 600-ohm telephone line
- Built-in volume control with detachable knob
- Knockouts for Wiremold®
- Mounting hardware included (toggle bolts, wood screws, pluggable screw terminals, volume knob)
| Cone Diameter | 8" (paper) |
| Magnet Weight | 6 oz. |
| Power Rating (max.) | 1W |
| Typical Operational Current | 1 CU (50 mA) |
| Supply Voltage | 24V DC |
| Frequency Response | 110 Hz to 15 kHz |
| Input Impedance | 2000 ohms |
| Typical Input Sensitivity | 125 mV |
| Maximum Sound Pressure Level | 92 dB @ 1 Meter on axis, 1W output |
| Dispersion (min.) | 100¡ |
| Product Weight | 9 lb. |
| Enclosure Size | 11-5/8" W X 11-5/8" H X 4-1/4" D |
| Construction | Painted steel enclosure |
Bogen's AMBSQ1 and AMBSL1 speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker, built-in 1W amplifier, and volume control. The AMBSQ1 is suitable for ceiling or wall mounting. The AMBSL1 is designed primarily for wall mounting and its face is angled downward by 12.5 degrees. A detachable volume control knob on the grille allows individual adjustment of paging level at each speaker location.
Features:
- Rugged all-steel surface-mounted enclosure
- Full-range 8" cone speaker for excellent intelligibility
- Self-contained 1-watt amplifier
- Interfaces with standard 600-ohm telephone line
- Built-in volume control with detachable knob
- Knockouts for Wiremold®
- Mounting hardware included (toggle bolts, wood screws, pluggable screw terminals, volume knob)
| Cone Diameter | 8" (paper) |
| Magnet Weight | 6 oz. |
| Power Rating (max.) | 1W |
| Typical Operational Current | 1 CU (50 mA) |
| Supply Voltage | 24V DC |
| Frequency Response | 110 Hz to 15 kHz |
| Input Impedance | 2000 ohms |
| Typical Input Sensitivity | 125 mV |
| Maximum Sound Pressure Level | 92 dB @ 1 Meter on axis, 1W output |
| Dispersion (min.) | 100¡ |
| Product Weight | 9 lb. |
| Enclosure Size | 11-5/8" W X 11-5/8" H X 4-1/4" D |
| Construction | Painted steel enclosure |
