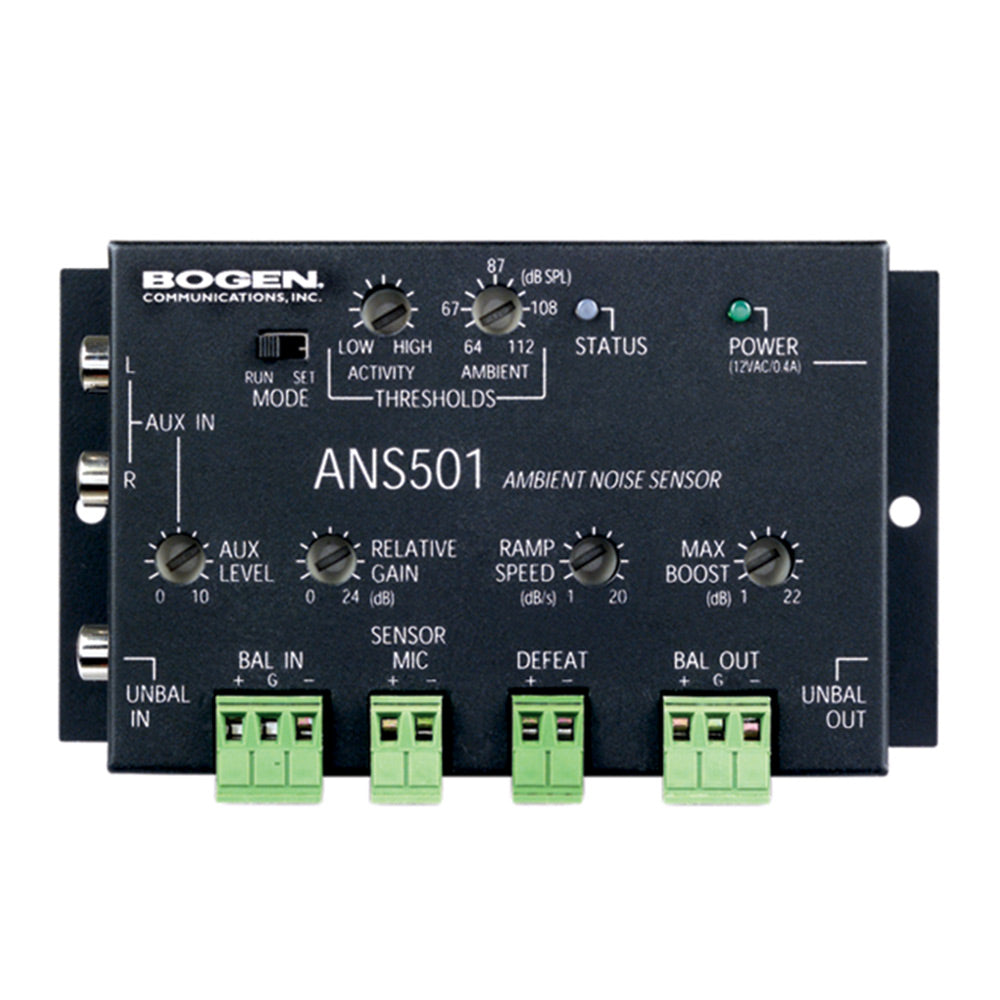

Bogen ANS501 Ambient Noise Sensor Measurement System (Main Unit)


  • Dale #:

    BOGE-ANS501
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Main unit for the Ambient Noise Sensor system, can connect to up to four ANS500M microphone sensors (sensors are sold separately). The Bogen Ambient Noise Sensor system is designed to monitor continuously changing ambient noise levels and electronically adjust the level of a page announcement a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Main unit for the Ambient Noise Sensor system, can connect to up to four ANS500M microphone sensors (sensors are sold separately).

The Bogen Ambient Noise Sensor system is designed to monitor continuously changing ambient noise levels and electronically adjust the level of a page announcement and/or background music so intelligibility is maintained. The system consists of the control module (Model ANS501), a microphone module (ANS500M), and a power supply. The system ensures that page announcements and music are audible even during periods of high noise levels by continuously monitoring the ambient noise level through a microphone module located in the subject area and adjusting the paging signal level into the system’s amplifier.

Features:

  • Consists of an ANS501 control unit, an ANS500M microphone module, and a power supply
  • Balanced input and output
  • Unbalanced input and output
  • Unbalanced stereo AUX inputs (summed mono)
  • AUX inputs bypass gain control feature
  • Remote defeat connections (to disable level boost)
  • Automatically adjusts level of page announcements
  • Run/Set mode switch
  • ANS501 can be wired in between preamp and power amp or to amplifier insert jacks
  • Maximum boost; activity threshold; relative gain; AUX input level; ramp speed; and ambient MIC input threshold controls
  • Supports up to four microphones wired in parallel
  • Microphone wire run can be up to 2,000 feet with no appreciable loss of signal
  • Microphone module includes an adjustable mounting bracket for precise positioning
  • Powered by a 12V wall-mounted power supply that operates from 120V AC

More +

Product Specs

Gain (Boost) 0 dB to 22 dB (± 1 dB)
Frequency Response 5 Hz to 80 kHz (+0 / -3 dB)
S/N (20 Hz - 20 kHz) -96 dBV
Distortion <0.007%
Input Impedance Aux Input: Unbalanced 10 k-ohms
Unbalanced Input: 20 k-ohms
Balanced Input: 20 k-ohms
Output Impedance Unbalanced Output: 300 ohms
Balanced Output: 600 ohms
Gain Ramp Speed 1 dB/s to 20 dB/s
Power 12V AC/0.4A
Controls Maximum Boost, Ramp Speed, Activity Threshold, Ambient Threshold, Aux Level, & Relative Gain
Connector RCA & pluggable screw terminals
Product Weight 12 oz. (ANS501); 4 oz. (ANS500M)
Dimensions 51/4" W x 3" H x 11/4" D (ANS501); 2" W x 21/8" H x 7/8" D (ANS500M)
Indicators Bi-Color Status (Amber/Green); Power (Green)
