Bogen ASWB1 Self-Amplified Wall Baffle Paging Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bogen ASWB1 Self-Amplified Wall Baffle Paging Speaker
Sale price$161.68
Description

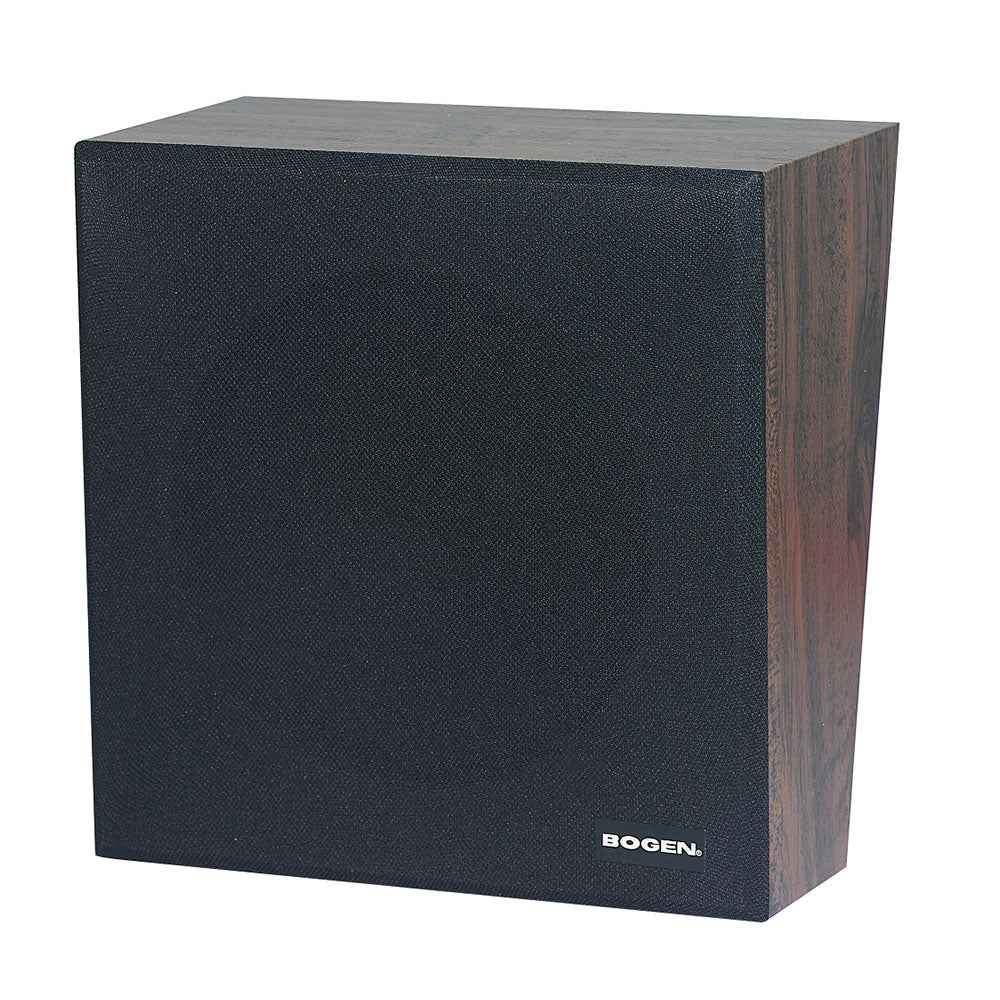

Bogen Model AS1 is an 8", cone-type loudspeaker, complete with a built-in 1-watt amplifier and volume control knob. Mounted in a walnut wall baffle.
Features:
- 8" Cone speaker
- Self-contained 1-watt amplifier
- Interfaces with standard 600-ohm telephone line
- Wall baffle finished in simulated walnut with sloping front panel for enhanced downward dispersion
| Maximum Output | 1W |
| Typical Operational Current | 1 CU (50 mA) |
| Frequency Response | 100 Hz to 10 kHz |
| Input Impedance | 2000 ohms |
| Typical Input Sensitivity | 125 mV |
| Maximum Sound Pressure Level | 92 dB @ four feet on axis with 1W output at 1000 Hz |
| Dispersion | 90¡ |
| Size | 8" cone |
| Supply Voltage Range | 24V DC |
| Product Weight | 8 lb. |
Bogen Model AS1 is an 8", cone-type loudspeaker, complete with a built-in 1-watt amplifier and volume control knob. Mounted in a walnut wall baffle.
Features:
- 8" Cone speaker
- Self-contained 1-watt amplifier
- Interfaces with standard 600-ohm telephone line
- Wall baffle finished in simulated walnut with sloping front panel for enhanced downward dispersion
| Maximum Output | 1W |
| Typical Operational Current | 1 CU (50 mA) |
| Frequency Response | 100 Hz to 10 kHz |
| Input Impedance | 2000 ohms |
| Typical Input Sensitivity | 125 mV |
| Maximum Sound Pressure Level | 92 dB @ four feet on axis with 1W output at 1000 Hz |
| Dispersion | 90¡ |
| Size | 8" cone |
| Supply Voltage Range | 24V DC |
| Product Weight | 8 lb. |
