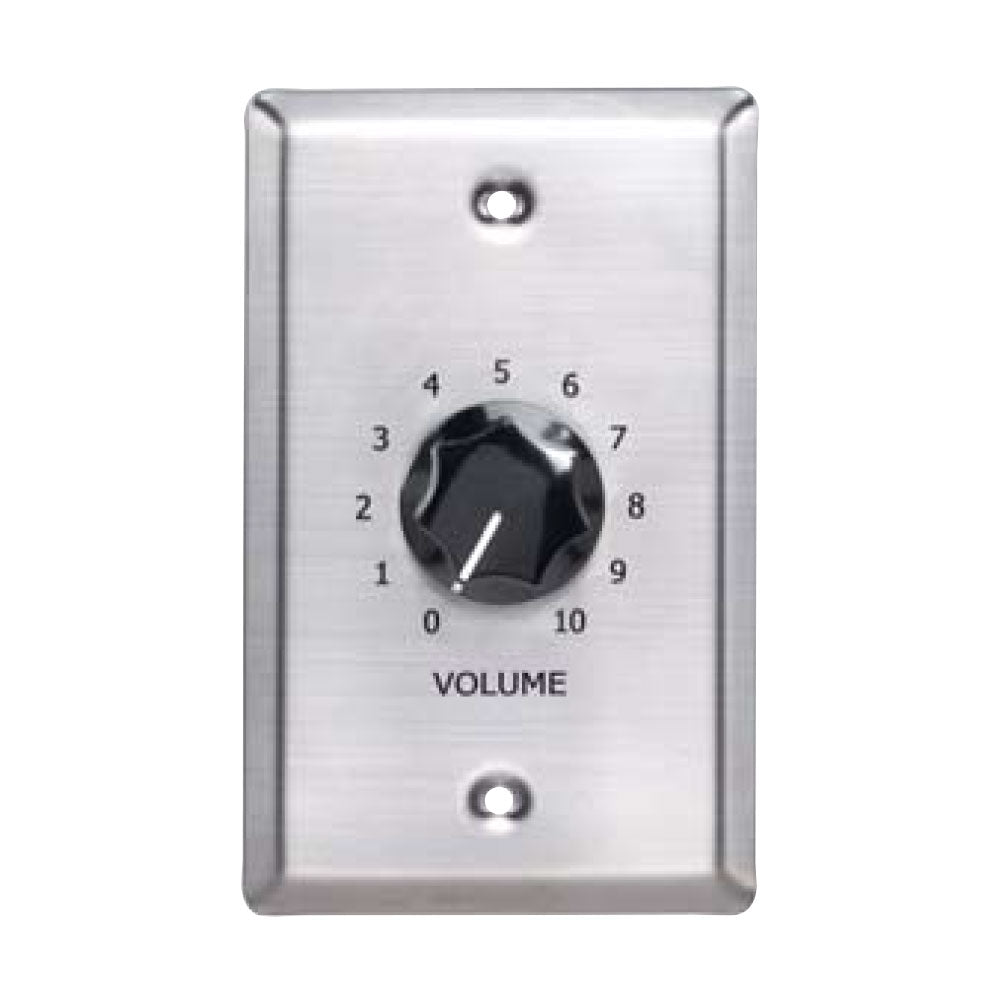

Bogen ATP10 10-Watt Attenuator with Bypass


  • Dale #:

    BOGE-ATP10
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

The ATP-Series of attenuators allows the output level of a network of 25V or 70V speakers to be controlled from a wall-mounted volume control, without affecting overall amplifier volume settings. A bypass function overrides the volume control knob setting when activated by 9V to 30V DC. Applying ... Read More

Free Shipping (orders over $75)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ATP-Series of attenuators allows the output level of a network of 25V or 70V speakers to be controlled from a wall-mounted volume control, without affecting overall amplifier volume settings. A bypass function overrides the volume control knob setting when activated by 9V to 30V DC. Applying 9V to 30V DC between pins labeled D+ and D- bypasses the volume control function and provides full volume audio to the speakers. The ATP-Series attenuators feature etched faceplate markings.

Features:

  • Adjusts loudspeaker output levels on 25V and 70V systems
  • Bypass function allows important and emergency announcements to be heard at the highest level even if local attenuator volume is set low or off
  • 2 models control up to 10-watt and 35-watt speaker systems
  • 10 attenuation steps and an off setting
  • Attenuation in 3 dB increments except for two lowest settings, which provide 6 dB reduction increments
  • Mounts in standard electrical box, single (ATP10) or double (ATP35)
  • Convenient pluggable screw terminal connections

More +

Product Specs

Speaker Types 25V & 70V
Bypass Control 9V - 30V DC @ 22mA max.
Power Rating 10 Watts
Gang Box Single
Dimensions 2-3/4" W x 4-1/2" H x 2-5/8" D
Product Weight 13 oz.
