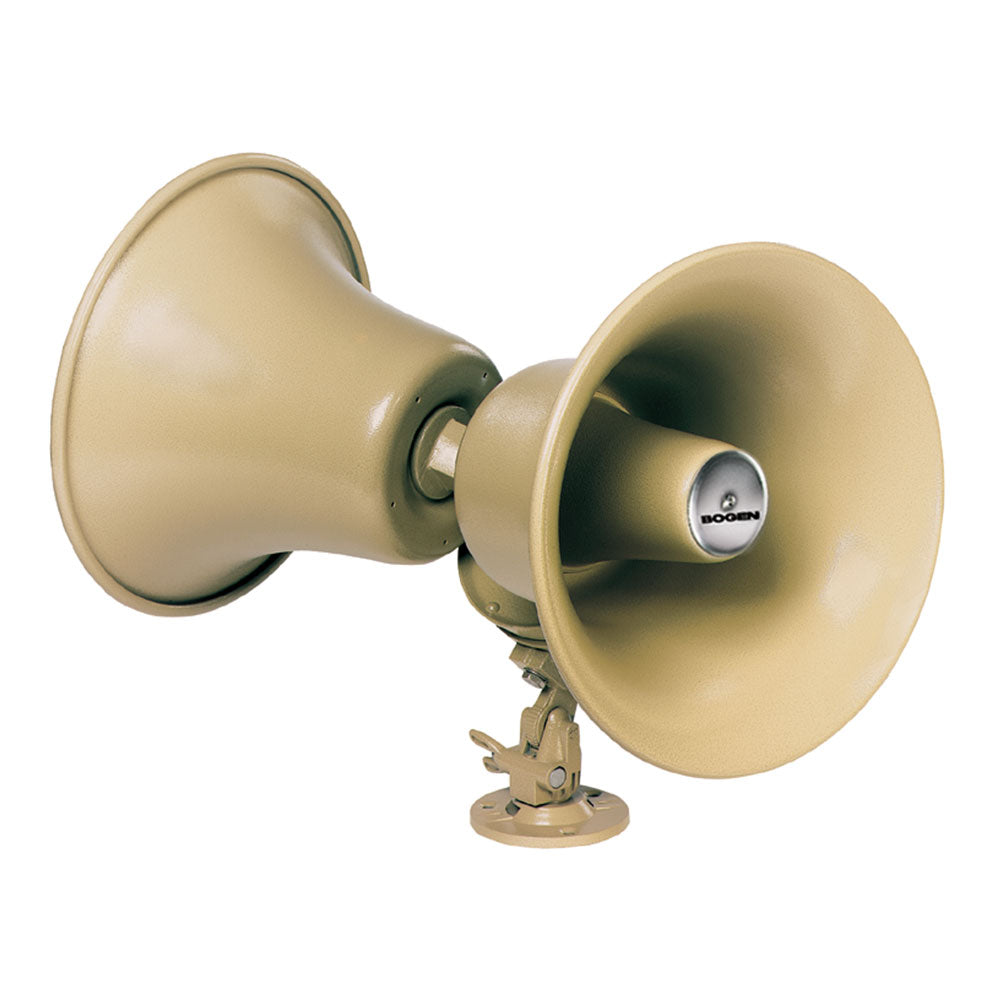

Bogen BDT30A Bi-Directional 30-Watt Paging Horn with Transformer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BDT30A is a compact loudspeaker designed for one- or two-way sound and communication systems. Ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. Speaker assembly required.
Features:
- Twin reentrant horns for bi-directional projection
- High intelligibility and efficiency
- Ideal for both one-way and talkback paging applications
- Weatherproof
- Sturdy, all-metal construction
- 30 watts max. at 70V operation or 15 watts max at 25V operation
- Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8 watts
- Rotary tap impedance selector switch
- Screw terminals make installation fast and easy
- For indoor and outdoor use
- Uniquely designed all-purpose mounting bracket for simple installation
- Self-aligning, field-replaceable diaphragm for easy maintenance
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen's BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen's HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
| Power Rating (RMS) | 30 watts continuous; 40 watts equalized |
| Frequency Response | 225 Hz to 14 kHz |
| Impedance | 25/70 volts |
| Sound Pressure Level | 121 dB @ four feet on axis with 30 watt input @ 1000 Hz, each horn |
| Dispersion | 100¼ each horn |
| Sensitivity as Microphone | -22 dBm [Ref: 10 dynes/cm2] |
| Dimensions | 9-5/8" Diameter (each horn) x 12-1/8" D |
| Product Weight | 7 lb. |
| Finish | Textured mocha enamel |
| Impedance Selector Switch Settings | 25V @ 15, 7.5, 3.7, 1.8 watts 70V @ 30, 15, 7.5, 3.7, 1.8 watts |
